Summary of Contents for BEC 5200 series

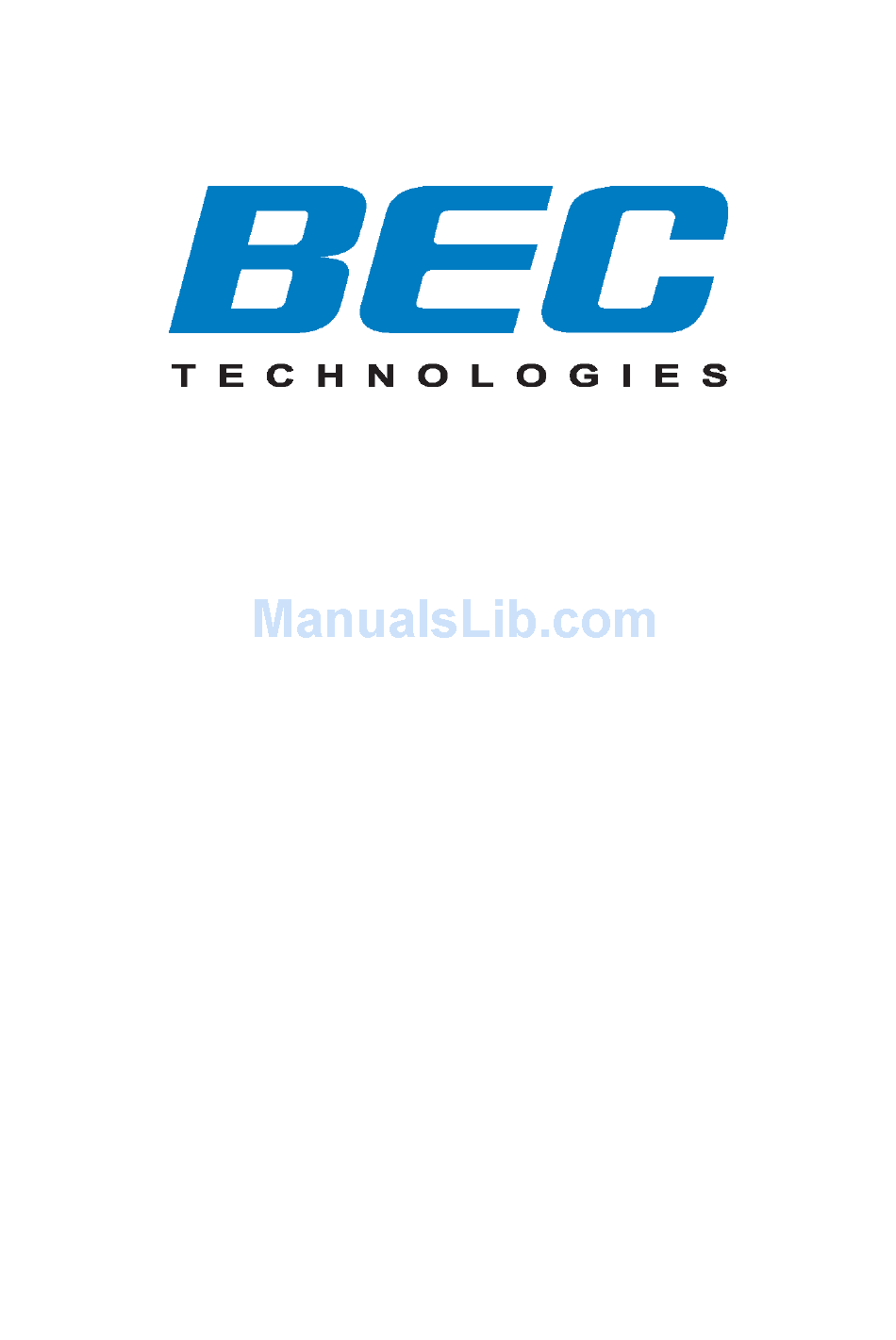

- Page 1 BEC 5200 Series (802.11g) ADSL2+ Router Quick Start Guide...
-
Page 3: Package Contents
BEC 5200 Series (802.11g) ADSL2+ Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON... -
Page 4: Hardware Overview
Quick Start Guide Hardware Overview BEC 5200G The Front LEDs Lit when successfully connected to an ADSL Lit when power is ON DSLAM connection. Lit when the Lit when connected to Lit steady when there system is ready an Ethernet device... - Page 5 Lit when successfully Lit when the connected to an ADSL system is ready DSLAM connection. The Rear Ports Attention: BEC 5200S has not supported the ON/OFF switch Connect your Connect the computer to a LAN supplied power port, using the...
- Page 6 Quick Start Guide Hardware Connection BEC 5200G BEC 5200S...
-
Page 7: Hardware Installation
BEC 5200 Series (802.11g) ADSL2+ Router Hardware Installation Power Connection Plug the supplied power adapter to the wall jack and the other side to the router. 2. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports and the other side to the PC’s Ethernet interface. -
Page 8: Setup Utility
Quick Start Guide 4. Splitter/ Micro-filter Connection Splitter / Micro-filter are important for ADSL installation. High-frequency signals are directed to the ADSL modem, and low-frequency signals are directed to the telephone or other analog voice-channel device to prevent inter-modulation distortion and also to get good speed and stable ADSL sync rate. a) Splitter connection If the installation has only a single telephone and a single ADSL modem, then a splitter can be employed. -
Page 9: Troubleshooting
BEC 5200 Series (802.11g) ADSL2+ Router Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the power adapter and the router. If the error persists, you may have a hardware problem. In this case, you should contact technical support.
