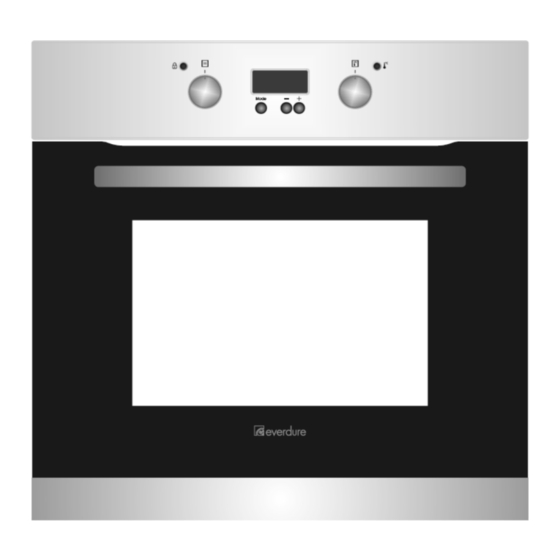

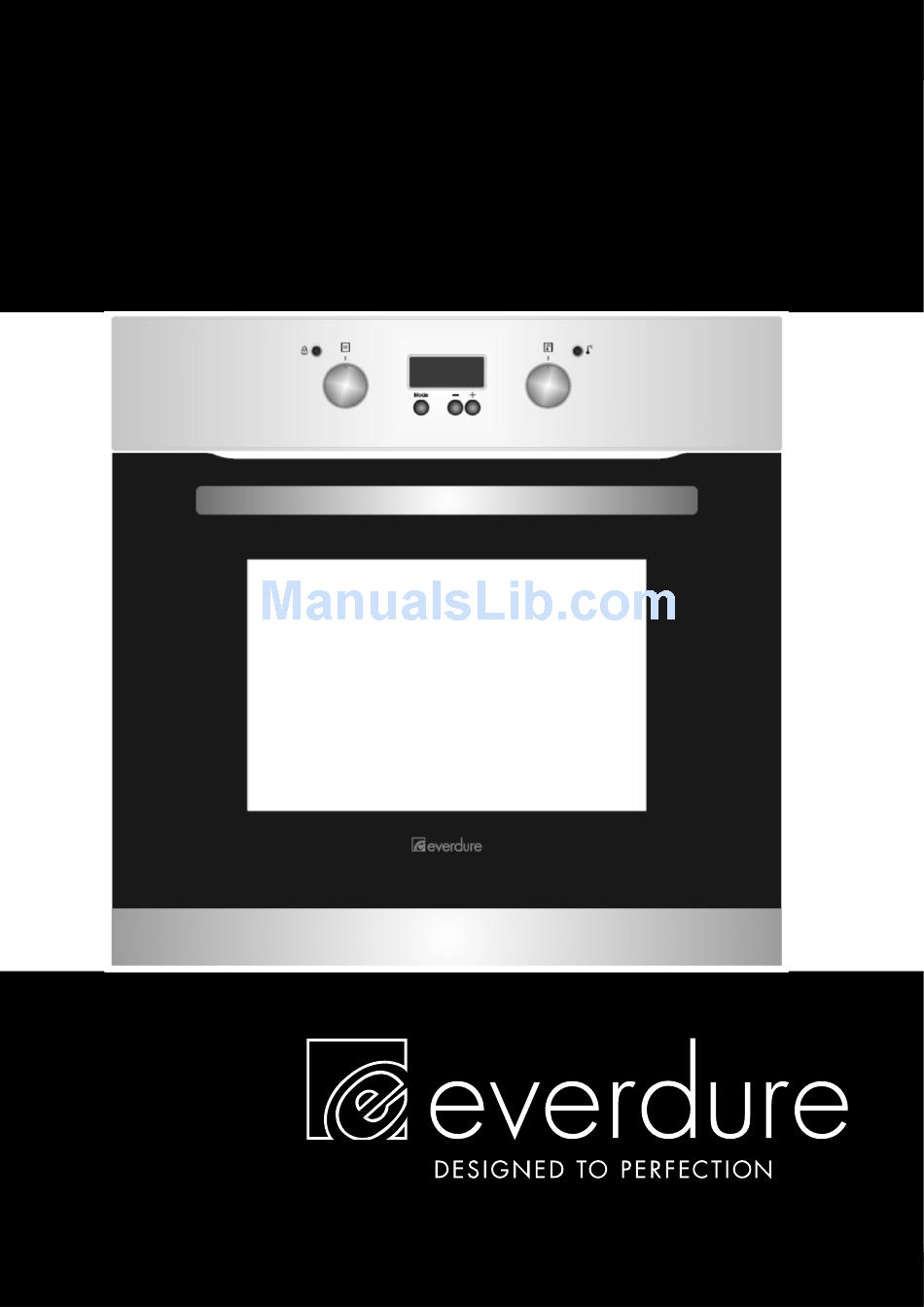

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE 60CM BUILT-IN PYROLYTIC ELECTRIC OVENS Models Included: OBEP601 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR EVERDURE BUILT-IN ELECTRIC OVEN RANGE OBES61, OBES6 DESIGNED TO PERFECTION...
-
Page 2: Table Of Contents
OBEP601 BUILT-IN ELECTRIC OVEN CONGRATULATIONS Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic built in ovens. We are confident that you will now be able to meet your cooking needs. Before you use the oven we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
OVENS: Rated Voltage: 220 to 240 Vac 50 Hz Max Rated Inputs: OBEP601- 2600W Supply Connection: OVENS - 15 A plug This information can be found on the rating plate (data label) affixed to the inside of the door jamb. -
Page 5: Transportation
OVEN LAMP REPLACEMENT The appliance must first be disconnected from the power outlet or turned off at your isolation switch. Unscrew the glass cover (and metal washer) attached to the lamp holder; anti-clockwise. Unscrew the lamp and replace it with another high-temperature lamp with the following characteristics: Type: E 14 Voltage: AC220V-240V Wattage: 25W... -
Page 6: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature of 100°C. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. - Page 7 INSTALLATION OF BUILT IN OVEN Insert the oven into cabinet partly by pushing it forward. Open the oven door and insert 2 screws into the holes on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS 01. Control Panel. 08. Wire Grill (2). 02. Handle. 09. Racks/Shelf Holders. 03. Oven Door. 10. Oven Light. 04. Door Lock. 11. Turbo Heating Element. 05. Tray. 12. Fan (behind plate). 06. Bottom Heating Element (under plate). 13. Air Outlet Shutters. 07. - Page 9 CONTROLS NOTE: The oven knob controls are printed on the knob side face, and are shown as if they were on the control panel for ease of instruction. Push the knobs in slightly and they extend for use (displaying the functions). Push fully back into the appliance after use. OVEN FUNCTION CONTROL KNOB The oven function control knob is used to select the different functions.
- Page 10 OVEN FUNCTION CONTROL CHART Please note: The following chart is for model OBEP601. Read the next section for full explanations of the different functions. Note: Oven shelves are numbered from 5 at the top down to 1 at the bottom when referring to the food cooking chart.
-
Page 11: Defrost Function
OVEN FUNCTION CONTROLS Defrost Function: You can start the defrost operation by putting the frozen food into oven and bringing the function control knob to the indicated mark. This function will not cook/bake the food; it only helps to defrost it within a short time. Put the food to be defrosted on the wire rack that you will place on the third rack support from the bottom (diagram opposite). - Page 12 Fan Assist Function: This is the function where the air coming from the lower and upper heating elements is circulated into the oven by the fan motor and blade Adjust the function control knob so it indicates the Fan Assist Function symbol and adjust the oven timer to the recommended time for cooking.
- Page 13 Maxi-Grill with Fan Function: This function will ensure complete, fast and all over grilling by working, the fan, the grill and the upper heating element at the same time. Adjust the function control knob so it indicates the Maxi-Grill with Fan function symbol and adjust the oven timer to the recommended time for cooking.
- Page 14 USING THE DIGITAL TIMER Time of Day Adjustment: The time must be adjusted before starting to use the oven. Following the connection of the power supply to the oven, the display will begin to flash. Leave the oven function control at “off” and then press either the “+”...
- Page 15 Semi-Automatic Programming According to Finish Time: This function is used to cook according to desired finishing time. The food to be cooked is put into the oven and the oven is adjusted to the desired cooking function and temperature depending on the food/dish to be cooked (the manual operation symbol will be lit).
-
Page 16: Cleaning
ACCESSORIES It is recommended that you use the containers indicated depending on the food you will cook in your oven. You can also use glass containers, cake pans and special oven trays suitable for use in your oven (available in kitchenware shops). Pay attention to the information given by the supplier for use of this cookware. The information given below should be implemented for enamelled containers. -
Page 17: Recommended Cooking Times
RECOMMENDED COOKING TIMES LOWER‐UPPER HEAT – (Convection) LOWER‐UPPER HEAT + FAN (Fan Assist) FOOD Thermostat Rack Cooking Period Thermostat Rack Cooking Period (min) pos. (°c) pos. (min) pos (°c) pos. Scones Plain or fruit 220 2‐3 10‐15 210 2‐3 10‐15 Cake ‐ Butter cake (deep) 180 2‐3 40 170 2‐3 40 Cake ‐ Sponge 180 2‐3 25‐30 170 2‐3 25‐30 Cake – Cup cakes 180 ... -
Page 18: Cooking Guides
Oven Shelf Location Your Everdure oven has five positions or racks for the oven shelves to be positioned depending on your choice of cooking function and size of roasting dishes or containers. These are numbered from 1 (the lowest shelf position) to 5 (the highest shelf position). -
Page 19: Troubleshooting
Grilling Cooking times may vary according to the nature of the foods, their homogeneity and their volume. When cooking a certain food for the first time, it is advisable to choose the lowest temperature and then increase temperature as required. Always leave the oven door closed & in general, do not exceed 190°C. Cakes and Baking Organize the oven shelves while the oven is cold and before preparing a recipe. - Page 20 A division of Shriro Australia Pty Ltd 104 Vanessa Street, Kingsgrove NSW 2208 AUSTRALIA: 1300 355 541 NEW ZEALAND: (09) 414 5755 www.everdure.com IM Ref: OBEP601 29/2014/01FC F O R I N D O O R U S E O N L Y DESIGNED TO PERFECTION...
