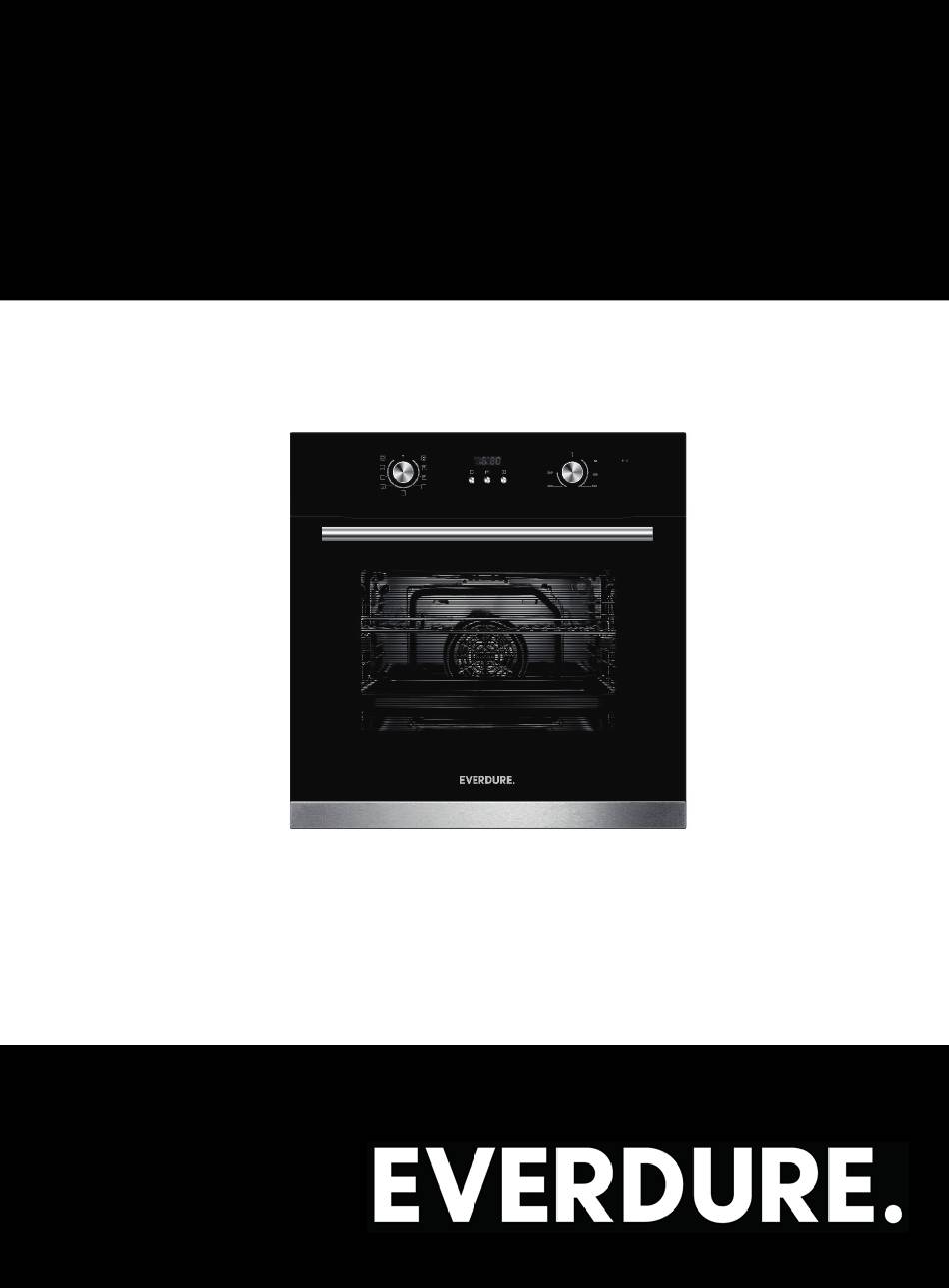

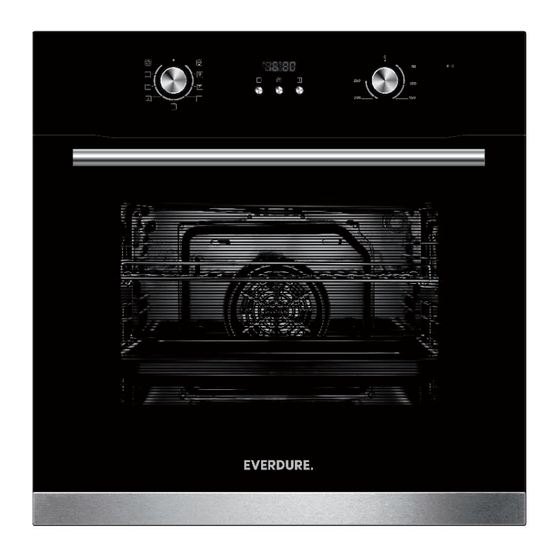

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE, 60CM BUILT-IN ELECTRIC OVENS Model: OBES6970(OECC69TP) OBES6970(OECI69TP) EASY DECISION...
- Page 2 CONGRATULATIONS Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic built in ovens. We are confident that you will now be able to meet your cooking needs. Before you use the oven we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS 20. All cabinetry and materials used in the installation must be able to withstand a minimum temperature of 110°C above the ambient temperature of the room it is located in, whilst in use. Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage or discolouration at temperatures outside the guidelines given above.
- Page 5 APPLIANCE DETAILS ELECTRICAL DETAILS: OVENS: Rated Voltage: 220 to 240 Vac 50 Hz-60Hz Max Rated Inputs: 3000W, Supply Connection: OVENS – Must be hardwired to power supply. This information can be found on the rating plate (data label) affixed to the inside of the door jamb. SIZES: Relevant Sizes: WIDTH (mm)
- Page 6 ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician and must be carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage which the manufacturer accepts no responsibility. ELECTRICAL INSTALLATION FOR THE LICENSED ELECTRICIAN This oven must be connected to a 220-240V 50Hz-60Hz power supply.
- Page 7 INSTALLATION PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. Make sure to read the manual to obtain successful results so as not to experience any problems in the future.
- Page 8 INSTALLATION CABINET DIMENSIONS & VENTILATION REQUIREMENTS min. VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance.
- Page 9 OPERATING INSTRUCTIONS Increasing control Cooking function Temperture knob Decreasing control Time function Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat).
- Page 10 OPERATING INSTRUCTIONS When the oven is first connected to the electrical supply, wait for the display automatically show " 12.30 ", a beep sound once and the "12" and "." will flash. Ensure the correct time of the day is set before using the oven. please note that is 24 hour clock, for example 2PM shown as 14.00.
- Page 11 OPERATING INSTRUCTIONS Audible warning time adjustment: This function can be used to receive audible warning at the completion of the time period. 1. Press " “ button to select the minute minder function. The relevant " " and " . " symbol will flash. 2.
- Page 12 OPERATING INSTRUCTIONS Full-automatic programming: This function is used to cook after a certain period of time with a certain duration. Place the food to be cooked into the oven. The oven is adjusted to the desired cooking function. The oven temperature is adjusted to the desired temperature depending on the food to be cooked.
- Page 13 (the oven should not be operating). For the OBES6970, remove the wire side racks first. Wipe your oven with a soft piece of cloth (e.g. dish cloth) dampened with warm soapy water after each use, rinse cloth in warm water then wipe oven again and then finish by wiping with a dry cloth.
- Page 14 CLEANING AND MAINTENANCE For a more thorough clean, you can remove the oven door, proceed as follows: 1. To remove the door, open the door to the maximum angle.Then pull the buckle at the door hinge backward. 2. Close the door to an angle approximately 30°.Hold the door with one hand on each side.Lift up and slowly pull the door out from the oven.
- Page 15 CLEANING AND MAINTENANCE Replacing side racks (Optional) Warning: The racks became very hot. Never touch the hot racks. Always allow the appliance to cool down. Keep children away from the appliance. To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers.
- Page 16 ACCESSORIES Wire shelf: Used to place dishes on, ideal for grilling and baking. Side racks: These shelf support rails on the right and left sides of the oven can be removed. NOTE: DO NOT place cooking dishes on the floor of the oven to cook. It could damage the cooking dish due to heat intensity Large baking tray: Ideal for cooking larger dishes such as roasts, moist cakes, pastries, frozen food...
- Page 17 NOTES EASY DECISION...
- Page 18 TROUBLESHOOTING If the oven does not operate: The oven may be unplugged from the power source or switched off at the power source. The household fuse has blown, or household power supply is off. The Timer may not be set correctly. ...
- Page 19 The product will be repaired or replaced at the option of Everdure. Our Warranty is subject to the product being used for single family domestic household use.
- Page 20 A division of Shriro Australia Pty Limited 2-34 Davidson Street, Greenacre NSW 2190 AUSTRALIA: 1300 355 541 www.everdure.com NEW ZEALAND: (09) 415 6000 www.everdure.co.nz IM Ref: OBES6970 15/2020/12FC F O R I N D O O R U S E O N L Y EASY DECISION...
