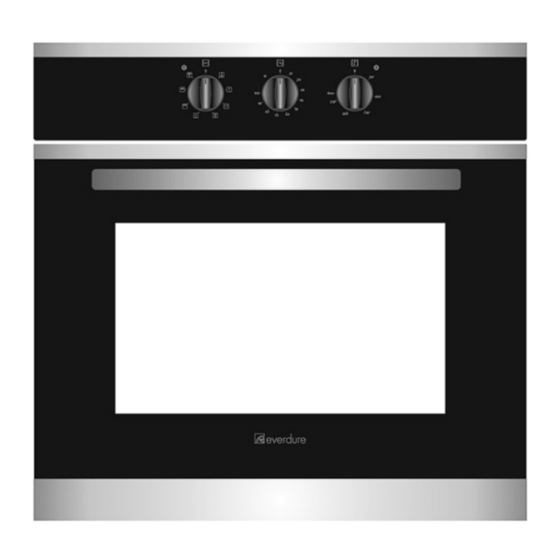

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE 60CM BUILT-IN ELECTRIC OVENS Models Included: OBES601 OBES61 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS OBES602 FOR EVERDURE BUILT-IN ELECTRIC OVEN RANGE OBES61, OBES6 DESIGNED TO PERFECTION...
-
Page 2: Table Of Contents
OBES601 & OBES602 BUILT-IN ELECTRIC OVEN CONGRATULATIONS Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic built in ovens. We are confident that you will now be able to meet your cooking needs. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
Rated Voltage: 220 to 240 Vac 50 Hz Max Rated Inputs: OBES601- 2600W & OBES602 - 3100W Supply Connection: OVENS - 15 A plug This information can be found on the rating plate (data label) affixed to the inside of the door jamb. - Page 5 OVEN LAMP REPLACEMENT The appliance must first be disconnected from the power outlet or turned off at your isolation switch. Unscrew the glass cover attached to the lamp holder; anti-clockwise. Unscrew the lamp and replace it with another high-temperature lamp with the following characteristics: Type: E 14 Voltage: AC220V-240V Wattage: 25W...
-
Page 6: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature of 100°C. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. - Page 7 INSTALLATION OF BUILT IN OVEN Insert the oven into cabinet partly by pushing it forward. Open the oven door and insert 2 screws into the holes on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS 01. Control Panel. 07. Wire Grill (2). 02. Handle. 08. Racks/Shelf Holders. 03. Oven Door. 09. Oven Light. 04. Tray. 10. Turbo Heating Element (OBES602 only). 05. Bottom Heating Element (under plate). 11. Fan (behind plate). 06. Top Heating Element (above plate). 12. - Page 9 CONTROLS OVEN FUNCTION CONTROL KNOB The oven function control knob is used to select the different functions. Each is explained in detail further in the manual. To select a function, turn the control knob to the desired oven function and then set the temperature with the thermostat control.
- Page 10 This is not a leak in heat from the oven cavity. Note: The OBES601 does not include a turbo heater (at the rear of the oven) and therefore does not include the fan forced functions.
-
Page 11: Defrost Function
OVEN FUNCTION CONTROLS Defrost Function: You can start the defrost operation by putting the frozen food into oven and bringing the function control knob to the indicated mark. This function will not cook/bake the food; it only helps to defrost it within a short time. Put the food to be defrosted on the wire rack that you will place on the third rack support from the bottom (diagram opposite). - Page 12 Fan Assist with Lower Heat Function This Fan Assist with Lower Heat function (on the OBES601) functions similarly to the Fan Forced with Lower Heat Function. It is different due to the absence of the turbo heater located in the back of the oven. This...
- Page 13 Mid-Grill Function: This function is used for grilling. Adjust the function control knob so it indicates the Mid-Grill function symbol and adjust the oven timer to the recommended time for cooking. Set the oven’s thermostat control knob to the required temperature. After a preheating period of 10 minutes, put your food into the oven. For grilling, put the food on the grill rack and sit into the tray.
- Page 14 USING THE MECHANICAL TIMER (OBES601) To run the oven in Manual function (not using the timer) adjust the Timer control to the position indicating M as shown on the picture, you can continuously operate your oven (Figure 15). When the timer control knob is in the off (0) position, the oven will not operate.
- Page 15 Semi-Automatic Time Adjustment According to Cooking Time: This function is used to cook for a set duration. The food to be cooked is put into the oven and the oven is adjusted with the control knobs to the desired cooking function and temperature depending on the food/dish to be cooked (cooking starts).
- Page 16 Full- Automatic Programming: This function is used to cook for a set duration, starting after a pre-set delay. The food to be cooked is put into the oven and the oven is adjusted to the desired cooking function and temperature depending on the food/dish to be cooked (the oven will turn on).
- Page 17 ACCESSORIES It is recommended that you use the containers indicated depending on the food you will cook in your oven. You can also use glass containers, cake pans and special oven trays suitable for use in your oven (available in kitchenware shops). Pay attention to the information given by the supplier for use of this cookware. The information given below should be implemented for enamelled containers.
-
Page 18: Cleaning
CLEANING NOTE: Cleaning and maintenance operations must only be carried out when the oven is cool. The appliance should be disconnected from the power outlet or turned off at your isolation switch before commencing any cleaning process. Cleaning the oven exterior: Before starting to clean your oven, be sure that all control buttons are off and your appliance has cooled off. - Page 19 TRANSPORTATION Keep the original carton of the product and use this packaging if the item needs to be transported. Follow the transport signs on the carton. Place a paper between the upper cover and cooking panel, cover the upper cover, than tape to the side surfaces of oven.
-
Page 20: Recommended Cooking Times
RECOMMENDED COOKING TIMES LOWER‐UPPER HEAT – (Conventional) LOWER‐UPPER HEAT + FAN (Fan Assist) FOOD Thermostat Rack Cooking Period Thermostat Rack Cooking Period (min) pos. (°c) pos. (min) pos (°c) pos. Scones Plain or fruit 220 2‐3 10‐15 210 2‐3 10‐15 Cake ‐ Butter cake (deep) 180 2‐3 40 170 2‐3 40 Cake ‐ Sponge 180 2‐3 25‐30 170 2‐3 25‐30 Cake – Cup cakes 180 ... -
Page 21: Cooking Guides
Oven Shelf Location Your Everdure oven has five positions or racks for the oven shelves to be positioned depending on your choice of cooking function and size of roasting dishes or containers. These are numbered from 1 (the lowest shelf position) to 5 (the highest shelf position). - Page 22 Grilling Cooking times may vary according to the nature of the foods, their homogeneity and their volume. When cooking a certain food for the first time, it is advisable to choose the lowest temperature and then increase temperature as required. Always leave the oven door closed & in general, do not exceed 190°C. Cakes and Baking Organize the oven shelves while the oven is cold and before preparing a recipe.
- Page 23 DESIGNED TO PERFECTION...
- Page 24 A division of Shriro Australia Pty Ltd 104 Vanessa Street, Kingsgrove NSW 2208 AUSTRALIA: 1300 355 541 NEW ZEALAND: (09) 414 5755 www.everdure.com IM Ref: OBES6012 29/2014/01FC F O R I N D O O R U S E O N L Y DESIGNED TO PERFECTION...
