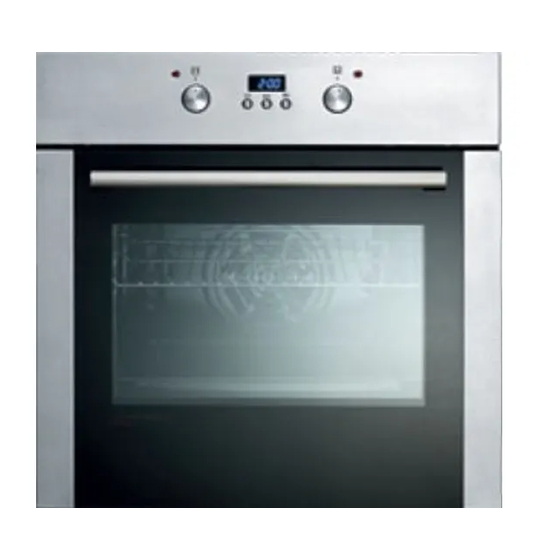

Summary of Contents for Everdure OBES61
- Page 2 EVERDURE BUILT IN ELECTRIC OVENS CATEGORY SECTION/COMPONENT PROBLEM(S) Electrical Fan not working/noisy/ hitting its cover Electrical Signal Lamp Signal lamp not working / blinking Electrical Timer Digital Timer not working/Timer buttons stucking Electrical Timer Timer circuit stays open / closed...
-
Page 3: Error Code

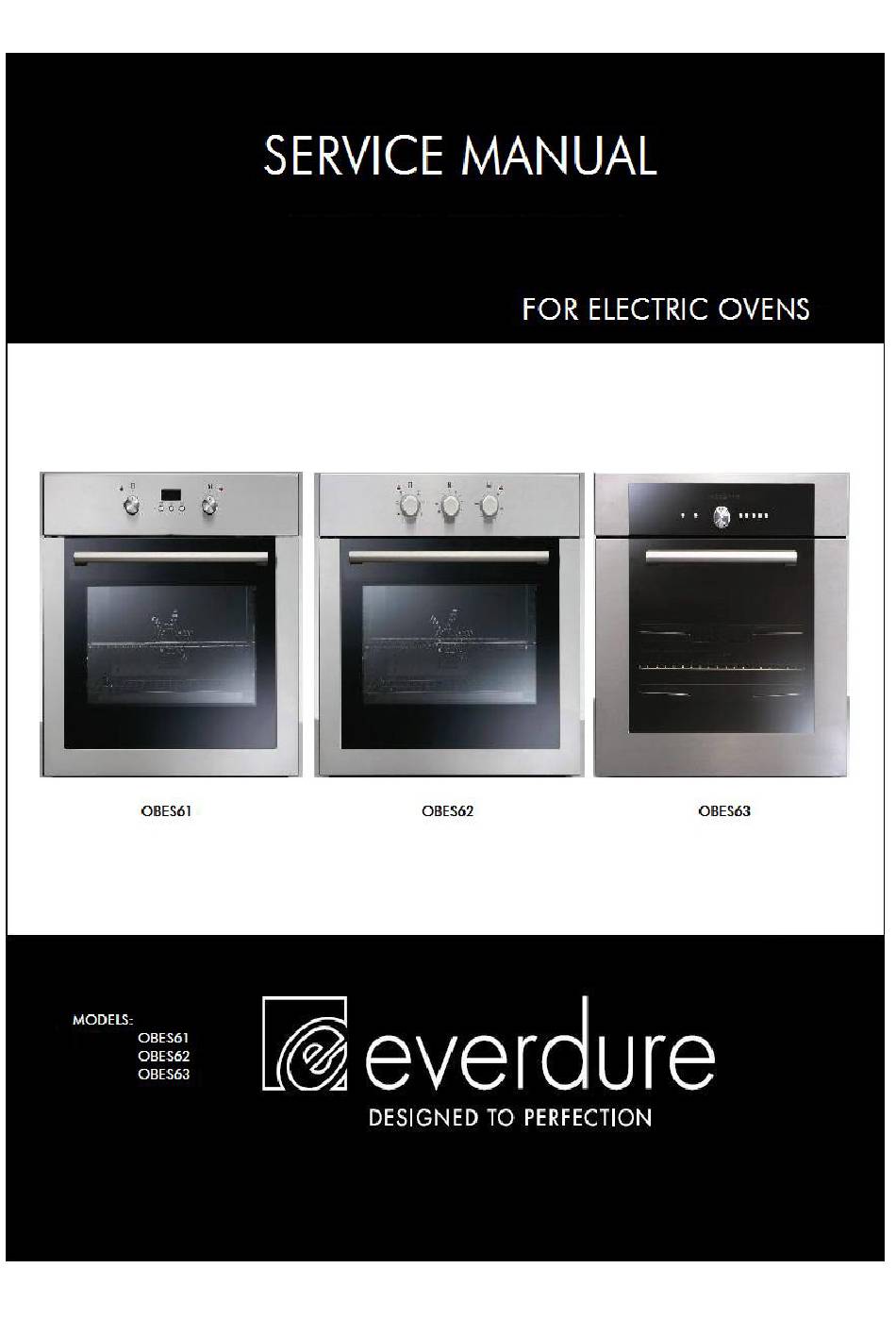

Keep pressed ( - ) MINUS for a second & you will hear a signal When pressed repeatedly, the signal frequency will change DISPLAYING MAINS FREQUENCY Press ( + ) PLUS button & the mains frequency is displayed in the clock display MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63... -
Page 4: Troubleshooting
CHANGE THE FAN COVER. DOES IT PLEASE SEE : SOLVE THE PROBLEM? FAN HITTING ITS COVER CHANGE THE FAN MOTOR CHANGE THE FAN. DOES IT SOLVE THE PROBLEM? MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 4 of 23... - Page 5 IS THE SIGNAL LAMP LED HARMED? CHANGE THE SIGNAL LAMP Signal lamp blinking CHECK THE WIRING CONNECTIONS CAN YOU SOLVE THE PROBLEM ? CHANGE THE SIGNAL LAMP MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 5 of 23...
- Page 6 IS THERE VOLTAGE AT TIMER TERMINALS? IS TIMER DISPLAY VISIBLE ? CHANGE DIGITAL TIMER WHEN YOU SET THE TIMER , IS THERE VOLTAGE AT TIMER RELAY TERMINAL ? MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 6 of 23...
- Page 7 CHANGE OVEN SWITCH - IF DEFECTIVE IS THERE VOLTAGE AT OVEN LIGHT CHANGE THE OVEN LIGHT BODY ( WITH WIRING ) TERMINAL? CHECK THE WIRING CONNECTIONS AND RELEASE THE OPEN CIRCUIT. MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 7 of 23...
- Page 8 Before putting on the knob ; be sure the knob segment and knob spring is set correctly Knob gaskets must be controlled on both knob segment sides - to set properly. knob spring knob ring MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 8 of 23...
- Page 9 IF TIMER NOT WORKING PROPERLY REFER TO TIMER PROBLEMS CHECK THE ELECTRICAL HEATING ELEMENTS OF OVEN ARE WORKING PROPERLY? SEE CHAPTER : OVEN HEATING ELEMENTS EXCHANGE THE APPLIANCE MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 9 of 23...
- Page 10 IS THE THERMOSTAT BULB BRACKET FIXED CORRECTLY? BRACKET CHECK WIRING CONNECTIONS ; BE SURE THAT THE OVEN ADJUSTED AS APPROPRIATE FOR THE VOLTAGE ( REFER TO LABELS ) MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 10 of 23...
- Page 11 CHANGE OVEN SWITCH IS THERE VOLTAGE AT TERMINALS OF OVEN SWITCH OR THERMOSTAT ? CHANGE THERMOSTAT CHECK AND RELEASE THE OPEN CIRCUIT please refer to circuit diagrams MODELS: OBES61 OBES62 SERVICE MANUAL BUILT IN ELECTRIC OVENS OBES63 Page 11 of 23...
-
Page 12: Test Mode
Press ( + ) PLUS button & the mains frequency is displayed in the clock display Handle Problems : If handle is loose ; replace and tighten it. If not solving ; change with a new one MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS... - Page 13 For new version handles ; Handle assembly Group = ( New Handle assembly stud + gradual washer + screw ) Yeni tip kapılarda ; Fırın Kapı Kulbu Bağlantı Grubu = ( Yeni Kulp Bağlantı Saplaması + kademeli rondela + vida ) MODELS: OBES61 OBES62 OBES63...
- Page 14 ( old ) assembly stud ( new ) screw screw NEW TYPE HANDLE ASSEMBLY STUD WASHER OLD TYPE HANDLE ASSEMBLY STUD MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 14 of 23...
- Page 15 Then manually take off the oven door. connection additional part To change telescopic rails , unscrew the connections on wire shelf. MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 15 of 23...
- Page 16 When reassembling the side panel, repeat this Remove back screws of side panel. procedure backwards. And please pay attention to set the side panel onto hooks at rear. hook 1 hook 2 MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 16 of 23...
- Page 17 If available on your oven ; If available, power cord terminals must be taken Pull off the wiring connections of ignitor/oven off from the rear panel light button. MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 17 of 23...
- Page 18 Changing the signal lamp body : Pull off the signal lamp manually - to Remove the signal lamp body manually. leave free from the panel MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 18 of 23...
- Page 19 Unscrew the Digital timer – from the front panel If still not solved ; change the timer buttons. If problem can not be solved; change digital timer. MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 19 of 23...
- Page 20 25W - 230Vac - 50 Hz - E14 - resistant to high temperatures (300°C) glass cover of the lamp lamp Pull of the electrical connections of oven light MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 20 of 23...
- Page 21 Pay attention that : the oven light is replaced appropriate to its hole on cavity Press the hooks on the oven light (by a screwdriver) and then push into the cavity. MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 21 of 23...
- Page 22 Remove the wiring harness of fan motor manually, then the fan motor will be free. Pull out the wiring connections manually. The ring heater will be free then. MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 22 of 23...
- Page 23 Repeat this procedure backwards ; to replace the component. Press down the bottom heating element cover, then pull slightly backwards. MODELS: OBES61 OBES62 OBES63 DISASSEMBLY MANUAL BUILT IN OVENS Page 23 of 23...
