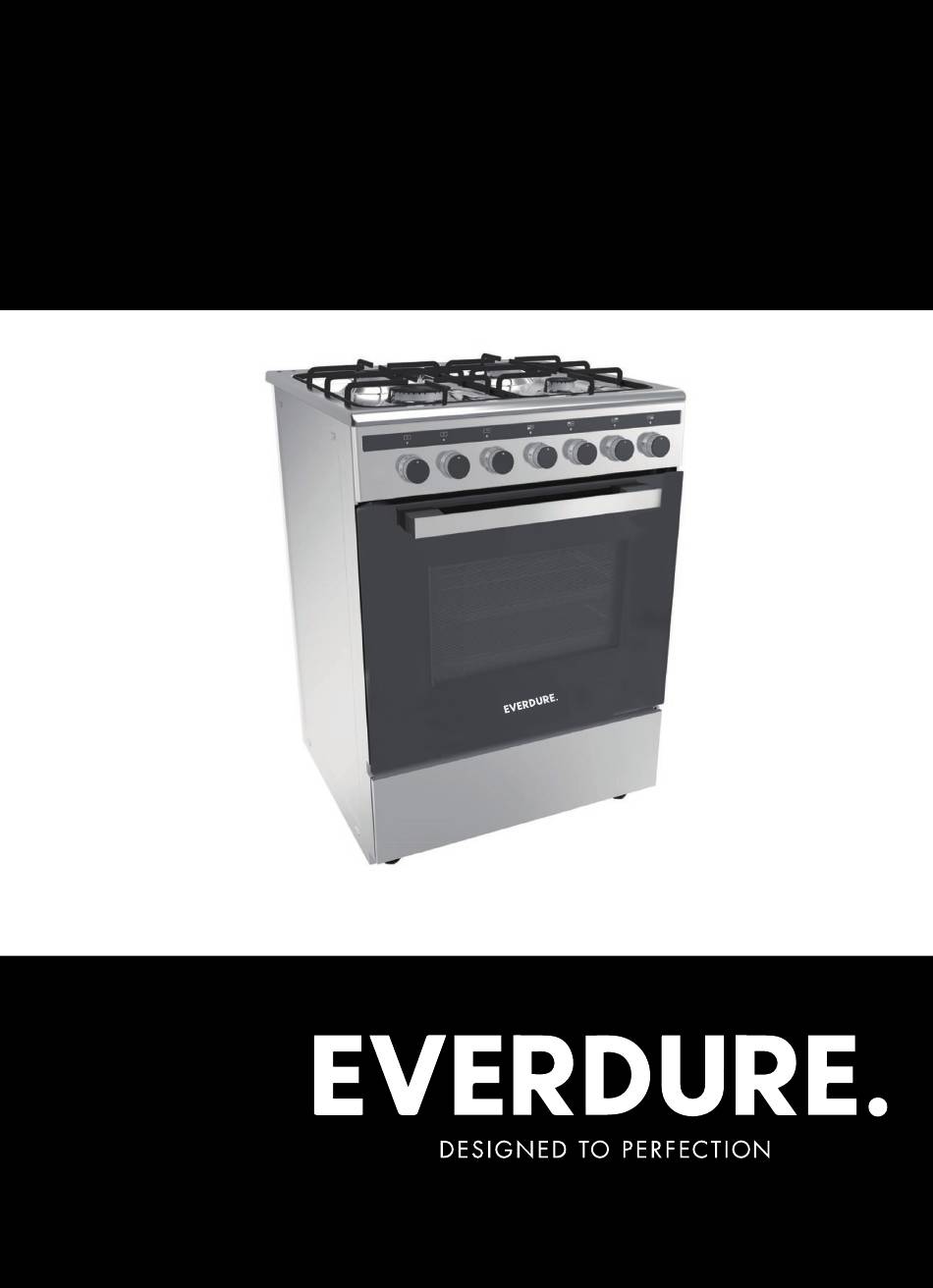

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE FREESTANDING ELECTRIC OVENS WITH GAS HOBS Models Included: EFG69SS...
-
Page 2: Table Of Contents
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. - Page 3 WARNINGS: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 4: Local Authority Requirements
LOCAL AUTHORITY REQUIREMENTS Before installation, unpack all parts from carton, remove all internal packaging and check for damage. Check Gas Type and specifications plate placed on the rear of the unit, alternatively there is a second label supplied – this should be fixed in an accessible position close to the appliance (on the side of a cabinet, etc.). -
Page 5: Important Information For Installing The Appliance
IMPORTANT INFORMATION FOR INSTALLING THE APPLIANCE The cooker can be installed separately, as a freestanding unit, or between kitchen units, or between a kitchen unit and a wall. This appliance is not connected to devices which exhaust combustion products. Special attention must be focused on the prescriptions described below regarding room aeration and ventilation. The dimensions of the appliance are listed below: LENGTH DEPTH... - Page 6 FITTING THE ADJUSTABLE FEET AND STABILISING KIT The adjustable feet must be fitted before any connections are made. • Remove all parts that are not permanently fixed, especially the pan supports and burners. • Remove the accessories from the oven. •...
-
Page 7: Appliance Gas Connection
APPLIANCE GAS CONNECTION IMPORTANT: This appliance must be installed by an authorised person. WARNING: DO NOT MODIFY THIS APPLIANCE If the appliance cannot be adjusted to perform correctly, contact the service department. This appliance utilises a threaded 1/2" gas male fitting. To connect the appliance to the gas network with a flexible hose, a supplemental hose nipple fitting is needed which is supplied with the appliance. - Page 8 TABLE N°1: Energy Consumption Energy consumption Pressure (kPa) Injector (mm) Mj/hr Watts Burners Gas type 0.90 Natural Auxiliary 2.75 0.53 U-LPG 1.20 Natural Semi-rapid 2.75 0.73 U-LPG 3000W 1.50 Natural Rapid 2.75 0.95 U-LPG Test the operation of the cooker before leaving Note: These burners have no aeration adjustment.
-
Page 9: Convertion To A Different Type Of Gas
CONVERSION TO DIFFERENT TYPES OF GAS Before performing any maintenance operation, disconnect the appliance from the gas supply and electricity network. REPLACING THE NOZZLES TO OPERATE WITH ANOTHER TYPE OF GAS When converting to LPG remove the NG gas regulator (if fitted) and fit LPG test point adaptor. If converting to Natural Gas, fit gas regulator. -
Page 10: Appliance Electric Connection
APPLIANCE ELECTRICAL CONNECTION WARNING -THIS APPLIANCE MUST BE EARTHED. Power supply voltage and frequency: 220-240V~ . The electric cooker without a power supply , 50 Hz- 60 Hz cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating label. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS PLEASE READ THE PRECAUTIONS BELOW BEFORE USING THE APPLIANCE. Turn controls to the off position when you have finished cooking and when not in use. Stand back when opening an oven door to allow any build-up of steam or heat to disperse. Use dry good quality oven gloves when removing items from the oven grill. - Page 12 PARTS 1. Pot rack 2. Burners knobs 3. Timer knob 4. Function knob 5. Temperature knob 6. Baking rack 7. Oven door 8. Door handle 9. Base CONTROL PANEL Broil When you first run your oven a certain smell will be emanated arising from the insulation materials and the heater elements. For this reason, before using your oven, run it empty at maximum temperature for 45 minutes.
-
Page 13: Using The Hobs
Never fill a pan more than 1/3 full of oil. Always dry food before frying. Never use gauze, metal pan diffusers or stands over the hobs, as they can cause the burners to overheat. Do not use trivets not supplied by Everdure for use with this appliance. Recommended vessel sizes are as follows: Auxiliary: Ø100mm-Ø220mm. -
Page 14: Oven Controls
OVEN CONTROLS Broil OVEN FUNCTIONS NOTE: The control knob decals are printed on the bezels at the base of each control knob. Note: All control knob decals are printed on the bezels at the base of the control knobs. Note: When cooking without using the timer, the timer must be set to manual mode (turn anti-clockwise to the first icon from off). - Page 15 Choose an oven function with the oven function control knob (off at the top, with 9 other functions). Chose an oven temperature setting using the thermostat control knob. The temperature ranges from 0⁰C (top) to >200⁰C (rotated fully clockwise to Grill), depending on the function. The control knob will not rotate past Grill. Place the food into the oven.
-
Page 16: Cleaning The Appliance
CLEANING THE APPLIANCE Before each cleaning disconnect the cooker from the electricity. To assure the long life of the appliance, it shall be thoroughly cleaned frequently. Wait until the oven has cooled before removing the wire shelves wash them separately in warm soapy water and dry thoroughly. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Oven or hob not working Check the electricity is turned on. Check your fuses. If the fuse continues to blow, call Omega service. Check the circuit breaker. Ensure correct knob is positioned correctly. Dry or clean ignition electrodes. Make sure flame ports and ignition areas are clean and dry. -
Page 18: Oven Lamp Replacement
OVEN LAMP REPLACEMENT Switch off and disconnect the power from the oven. Ensure that the internal parts have cooled down before touching them. Remove the lamp cover by turning it counter clockwise note it may be stiff remove the bulb by turning it counter clockwise. Insert the new bulb, which should be 300 C resistant (G9, AC2 30V, 25W). - Page 19 The product will be repaired or replaced at the option of Everdure. Our Warranty is subject to the product being used for single family domestic household use.
- Page 20 PRODUCT GAS/ELECTRIC COOKER EFG69SS MODEL NO. INPUT VOLTAGE ELECTRIC POWER 3.0kW DO NOT REMOVE ULPG: ® Injector Size MJ/h Injector Size MJ/h Auxillary Burner: 1x0.90mm 1x0.53mm Semi-rapid Burner: 2x1.20mm 2x0.73mm Rapid Burner: 1x1.50mm 11.0 1x0.95mm 11.0 AUSTRALIA AND NEW ZEALAND GAS SAFETY CERTIFICATION AS/NZS5263.1.1...
