Floor Mounting
The SL PAR 155 ZOOM RGBW LED Luminaire is designed to sit directly on its yoke assembly in a floor
installation application. When used in this type of application, using the provided 5 mm Allen wrench, loosen the
locking allen-head screw securing the inner portion of the yoke assembly and pivot out (as shown in
Retighten the allen-head screw to secure in place. Be sure to leave enough space around the luminaire to allow
proper, uninterrupted airflow for cooling.
1 2
INSTALLATION AND SET UP
Truss Hook or Clamp
(sold separately)

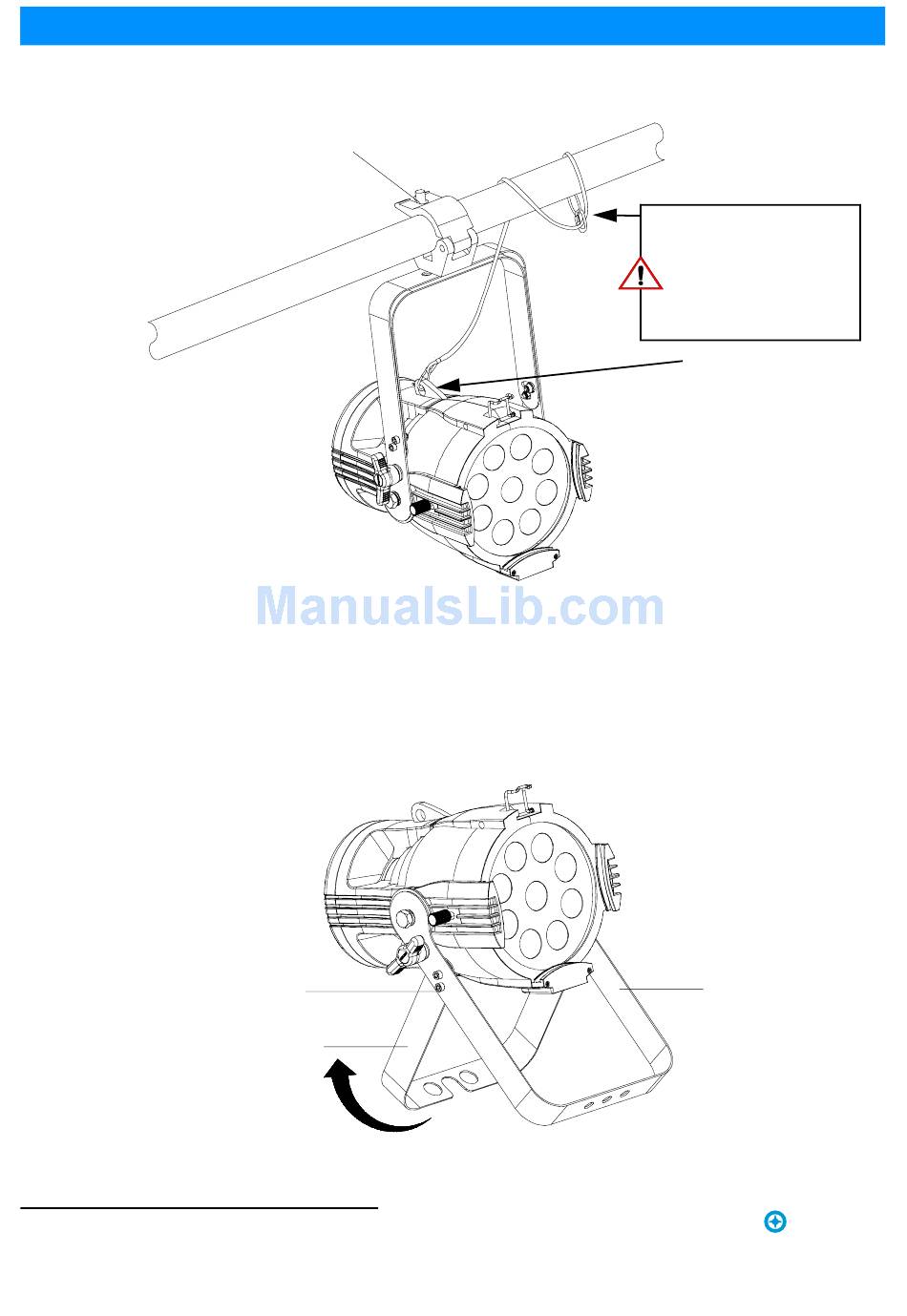

Figure 8: Mounting the Fixture - Hanging Applications
Allen Head Screw
Inner Portion (Stand)
of Yoke Assembly
SL PAR 155 ZOOM RGBW LED Luminaire
Figure 9: Floor Mounting
SAFETY CABLE: Is sold
separately and recommended
for all hanging installation and
may be required by national
and local codes. Use safety
cable anchor point for this
fixture.
Safety Cable Anchor Point
Figure
Yoke Assembly
Sh wline
9).
