SL PAR 155 ZOOM RGBW LED Luminaire

4. Mounting Luminaire

Truss / Hanging Applications

The SL PAR 155 ZOOM RGBW LED Luminaire is provided with the ability to hang via truss hooks, clamps, etc.
(sold separately). Simply attach hook, clamp, etc. to the SL PAR 155 ZOOM RGBW LED Luminaire enclosure
assembly in the provided M13 holes. It is recommended (and may be required by local and national safety codes) to
use and install a safety cable (sold separately) as illustrated in
enough space around the luminaire to allow proper, uninterrupted airflow for cooling and positioning. refer to
"Luminaire Dimensions" on page 43
Note: Mounting hooks, clamps, safety cables, etc. are sold separately or by others. For mounting accessories
available for this product, refer to
M13 Mounting Hole
Tilt Lock
Handle (M8)
Luminaire Head Assembly
Sh wline
for spacing (dimensional) requirements.
"Accessories" on page 5.
Truss Hook or Clamp
(sold separately)

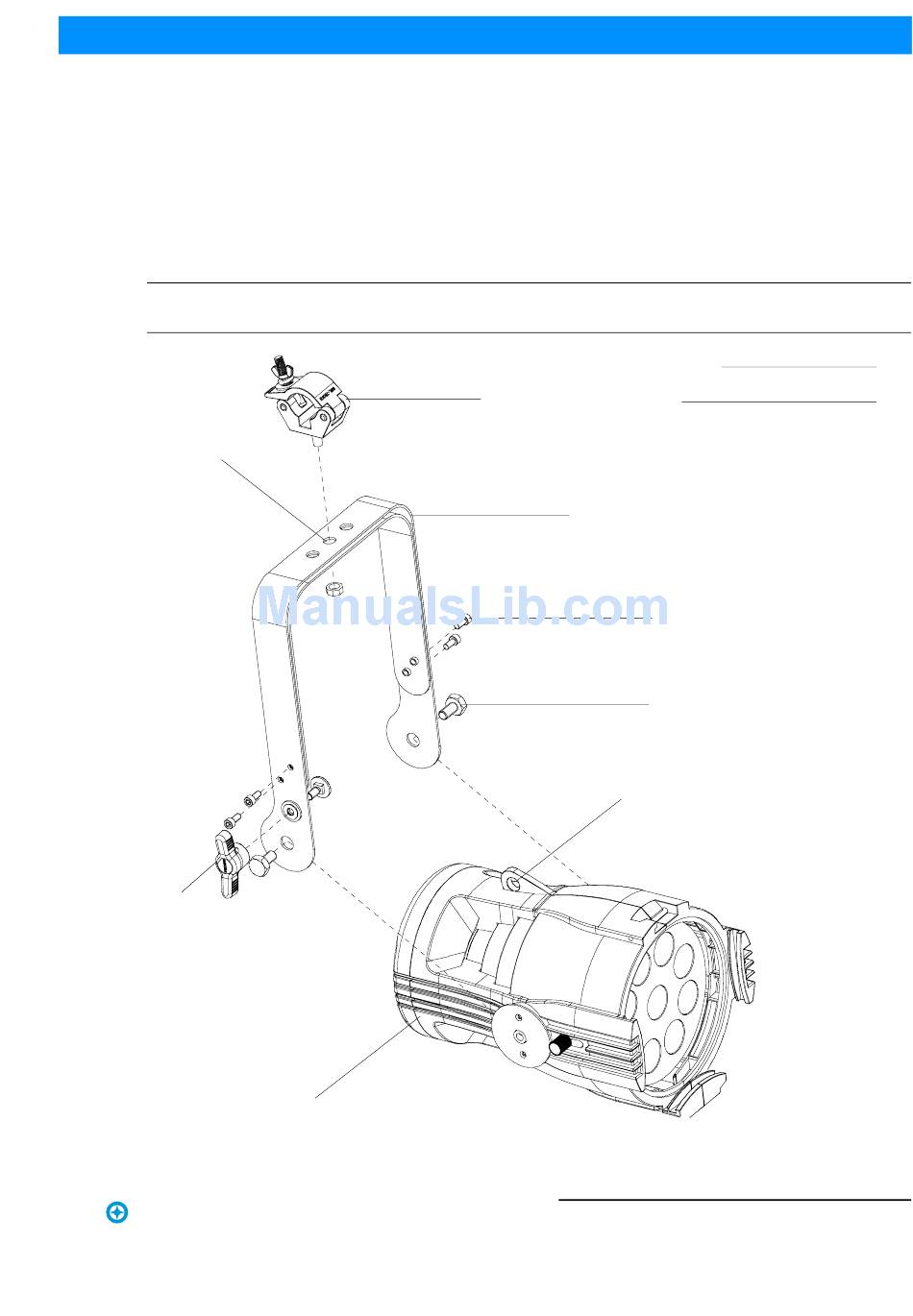

Figure 7: Luminaire and Yoke Components
Installation & User's Manual
Figure 7. When hanging the fixture, be sure to leave
Note:
Exploded view for clarity.
Yoke Assembly
Yoke Lock Bolt (M6 x 10 mm, 4 Each)
Yoke Mounting Bolt
(M10 x 20 mm, 2 Each)
Safety Cable Anchor Point
11
Mounting Luminaire
