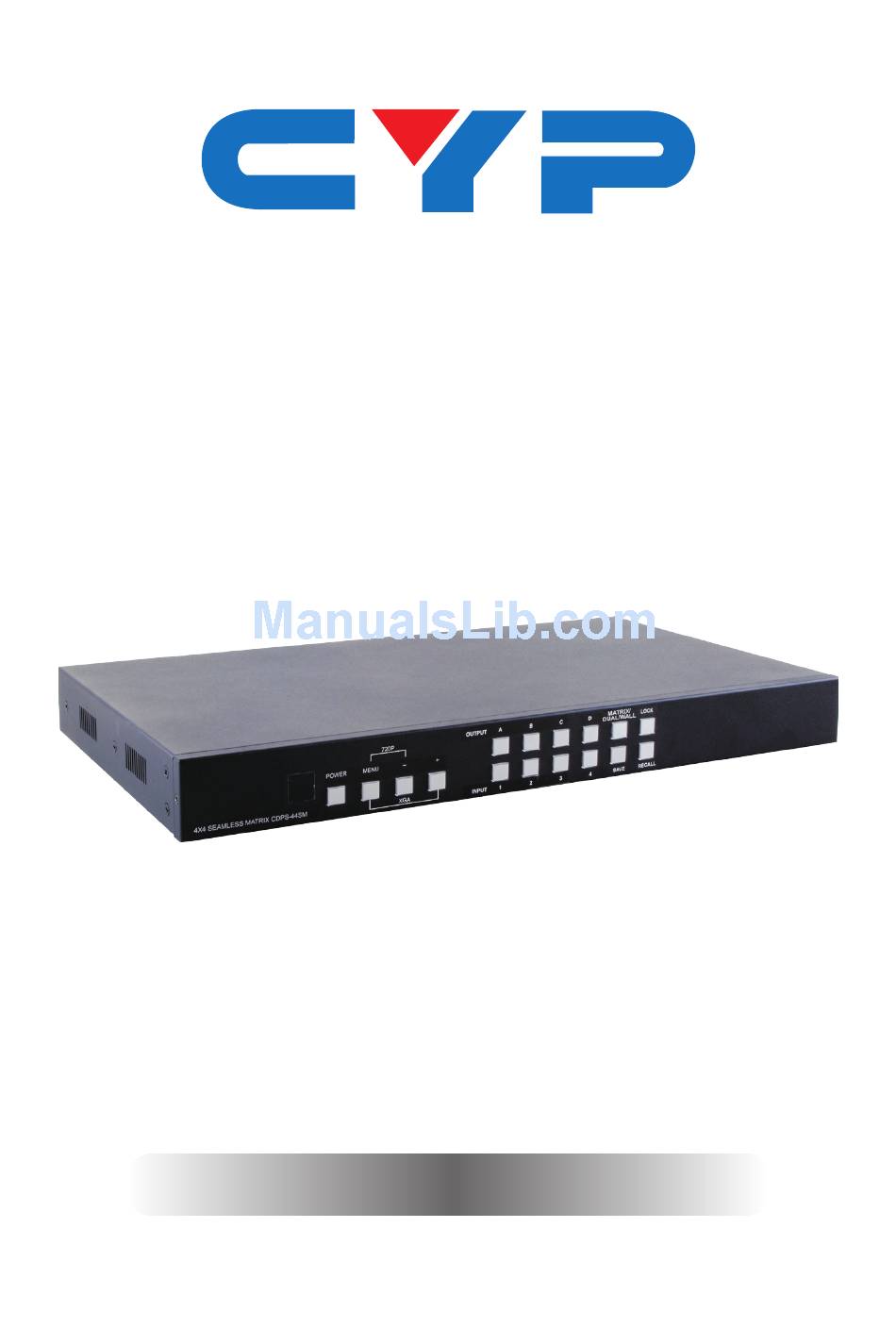

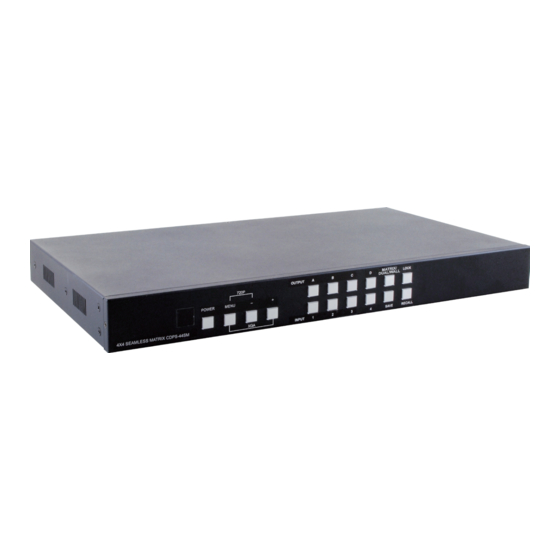

  • Page 1 CDPS-44SM HDMI 4x4 Seamless Matrix Switcher Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is be- lieved to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ........... 1 2. Applications .......... 1 3. Package Contents ....... 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel ........7 6.3 Remote Control .......

  • Page 6: Introduction

    1. INTRODUCTION The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 dif- ferent input sources to be freely selected and arranged on 4 displays (TV or monitor), providing four output modes (Matrix, Dual PoP/ PiP, Quad and TV Wall) for various applications. Matrix mode routes the source signals to output displays as regular matrix does, Dual mode allows 2 sets of 2 selected sources to show on designate output dis- plays with PoP and PiP method and TV Wall mode extends a selected...

  • Page 7: Features

    5. FEATURES • HDMI, HDCP1.1 and DVI compliant • Deep color support 8/10/12 bit source • Seamless switching • Supports four different modes: Matrix mode/ Dual mode/ Quad / TV Wall mode ■ Matrix mode: Can routes and output any 4 source to any 4 dis- plays with seamless switching Note: Under output timing 1080i@50/60 input 4 will be disabled, OSD will show “IN 4 Disabled”...

  • Page 8: Operation Controls And Functions

    6.1 Front Panel MATRIX/ OUTPUT LOCK DUAL/WALL 720P POWER MENU 4X4 SEAMLESS MATRIX CDPS-44SM INPUT SAVE RECALL IR Window: Accept IR signal from the device’s remote control included in the package. Power  ON/OFF: Press this button to power on the device or set it to standby mode.
  • Page 9 Main Main MATRIX/ OUTPUT LOCK DUAL/WALL 720P POWER MENU 4X4 SEAMLESS MATRIX CDPS-44SM INPUT SAVE RECALL PiP Main/Sub Swap Select Video Source Press for 2 seconds to enter into PiP Sub Window Position PoP/PiP On(MENU,-,+ LED illuminate) PiP Sub Window Size...
  • Page 10  Dual PiP mode: To combine 2 sources to be presented on each HDMI output port (Dual A and Dual B) as main and sub screen image. The sub screen is in a part of the main screen. i. Press “Matrix/Dual/TV Wall” button to switch to Dual PiP mode and LED will blink twice.
  • Page 11 MATRIX/DUAL/TV WALL: Press to switch between Matrix mode, Dual mode, TV Wall and Quad mode. When in Matrix mode the LED will illuminate constant- ly, when in DUAL PoP mode the LED will unilluminate, when in TV Wall mode the LED will blink once, when in Dual PiP mode the LED will blink twice and in Quad mode the LED will blink three times.

  • Page 12: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI IN 1~4: Connect with HDMI source equipments such as DVD/Blue-ray play- ers and or PC/Notebook devices. HDMI OUT 1~4: Connect with HDMI TV/Monitor/Recorder for output image display or saving.

  • Page 13: Remote Control

    6.3 Remote Control Info Power Power: Press this button to switch on the device or press Out A In 1 Matrix it again to set it to standby mode. Out B In 2 Dual Info: Press this button to show Out C In 3 TV Wall...

  • Page 14: Remote Control Dip Switch

    1024x768/720p/1080p: Press these hot keys to switch between each resolution for outputs. AL/AR/BL/BR: When in Dual & Quad mode, press these hot keys to switch the audio channel in Left or Right side for Dual A and Dual B group. SAVE:To save the customized input and output corresponding settings.

  • Page 15: Rs-232 Protocols

    Stop Bit: 1 6.5 RS-232 & Telnet Commands All commands will be not executed unless followed with a carriage return (0x0D) and commands are case-sensitive. Command Active CDPS-44SM Return ASP000 Aspect Ratio is Full ASP000 ASP001 Aspect Ratio is 4:3 TV...
  • Page 16 Command Active CDPS-44SM Return AUD001 Audio output On AUD001 AUD999 Check audio on/off status AUD??? AUE000 Audio edid is LPCM 2CH AUE000 AUE001 Audio edid is LPCM 6CH AUE001 AUE002 Audio edid is LPCM 8CH AUE002 AUE003 Audio edid is BITSTREAM...
  • Page 17 Command Active CDPS-44SM Return DUL003 Check Dual mode status DUL999 EGW999 RS232 only, check current Ethernet aaa.bbb.ccc. Gateway Address EIP999 RS232 only, check current Ethernet IP aaa.bbb.ccc. Address EMK999 RS232 only, check current Ethernet aaa.bbb.ccc. Subnet Mask Address HLP999 Show Command List...
  • Page 18 Command Active CDPS-44SM Return MOD001 Matrix mode MOD001 MOD002 Dual PoP mode MOD002 MOD003 TV Wall mode MOD003 MOD004 Dual PiP mode MOD004 MOD005 Quad Mode MOD005 MOD999 Check current output mode status MOD??? OUT??? OUTPUT selection???=001~004=OUT OUT??? OUT999 Check current OUTPUT...

  • Page 19: Rs-232 & Telnet Control

    6.6 RS-232 & Telnet control Using PC software or Hyper terminal to configure the setting. This soft- ware application can be downloaded from the product webside. Simply control panel: Audio Mute OUT A~D IN 1~4 Full function control panel:...

  • Page 20: Telnet Setting

    6.7 Telnet Setting Through TCP/IP protocol, to sent Port 23 for Telnet communication. From OSD menu or through RS-232 command to check Telnet con- nection behavior.

  • Page 21: Osd Menu

    6.8 OSD MENU Main Menu Sub Menu Adjustments Default MODE MATRIX MATRIX DUAL PoP TV WALL DUAL PiP QUAD EXIT...
  • Page 22 Main Menu Sub Menu Adjustments Default PICTURE CONTRAST 0 ~ 100 (*1) BRIGHTNESS 0 ~ 100 SATURATION 0 ~ 100 0 ~ 100 PoP A LEFT PoP A RIGHT PoP B LEFT PoP B RIGHT OUT A OUT B OUT C OUT D PiP A MAIN PiP A SUB...
  • Page 23 Main Menu Sub Menu Adjustments Default OUTPUT RESOLUTION 480p, 576p, 720p50, 720p60 720p60, 1080i50(*2), 1080i60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200 EXIT AUDIO EDID LPCM 2CH, LPCM LPCM 6CH, (*3) LPCM 8CH, BIT- STREAM, EXIT OSD SETTINGS POSITION...
  • Page 24 Main Menu Sub Menu Adjustments Default 1(*5) HDCP INPUT ON, OFF INPUT 2 ON, OFF INPUT 3 ON, OFF INPUT 4 ON, OFF A~D(*6) OUTPUT FOLLOW INPUT, FOLLOW FOLLOW OUT- INPUT EXIT BEZEL CORRECTION CORRECTION ON, OFF (*7) H CORRECTION 0 ~ by output resolution V CORRECTION...
  • Page 25 Main Menu Sub Menu Adjustments Default OTHERS IR ADDRESS(*13) 0 ~ 3 EXIT FACTORY DEFAULT YES, NO EXIT EXIT INFORMATION IN/OUT RESOLUTION, (*14) SOURCE HDCP/AU- DIO, OUT A NATIVE, OUT MODE, FIRM- WARE VER EXIT EXIT Note: *1 Picture: In Matrix mode, four pictures adjust simultaneously. In Dual/TV Wall/Quad mode, each picture can adjust individual and support individual last memory feature.
  • Page 26 *6 HDCP OUTPUT: FOLLOW INPUT: If source with HDCP the output will support HDCP. If input source without HDCP the output will display blue scren. When in Dual mode, one of each side (Left or Right) support HDCP, the output will support HDCP. FOLLOW OUTPUT: All the TV/Monitor need to support HDCP, to avoid switching source from non-HDCP to HDCP, the flashing image or no image.

  • Page 27: Web Gui

    The IR remote address can be set using the two DIP switches in the back of the remote, inside the battery cover. *14 INFORMATION: To show Input/Output/Audio/Mode/Firmware information. 6.9 Web GUI Connect the device’s CONTROL port from an active network service with RJ-45 terminated CAT5e/6 cable and open a web browser from a PC/laptop with device’s IP address on the web address entry bar then hit enter.

  • Page 29: Connection Diagram

    7. CONNECTION DIAGRAM Set-top Box HDMI Video signal HDMI HDMI Cable Cable HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY D-Sub 9pin Cable HDMI HDMI HDMI HDMI RJ45 Cable Cable Cable Cable Cable TV/Display TV/Display A B A B C D C D...

  • Page 30: Specifications

    8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input port 4x HDMI (Female type) 1xUSB (Service only) Output port 4 x HDMI (Female type) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions (mm) 436(W) x 247(D) x 44(H) Weight(g)

  • Page 31: Output Support Timing

    1280x1024@60,60cvt,75 1360x768@60 1366x768@60RB,60 1400x1050@60RB,60 1440x900@60RB,60,75 1600x900@60RB 1600x1200@60 1680x1050@60RB,60 1920x1200@60RB 9.2 Output Support Timing Support Timing 480p60 1024x768@60 576p50 1280x800@60 720p50 1280x1024@60 720p60 1366x768@60 1080i50 (Matrix Mode Only) 1440x900@60 1080i60 (Matrix Mode Only) 1600x900@60RB 1080p24 1600x1200@60 1080p50 1680x1050@60 1080p60 1920x1200@60RB Note: The 1080i@50 and 1080i@60 output resolutions are supported in ‘Matrix’...
  • Page 32 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPS44SM...
