- Page 1 HDMI 4x2 Matrix Operation Manual CHMX-42...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction... 1 2. Features... 1 3. Package Contents... 1 4. Operation Controls and Functions... 1 4.1 Front Panel... 1 4.2 Rear Panel... 2 4.3 Remote Control... 3 4.4 RS-232 Protocol... 3 4.4.1 Pin Definition... 3 4.4.2 Commands... 4 5. -
Page 3: Introduction

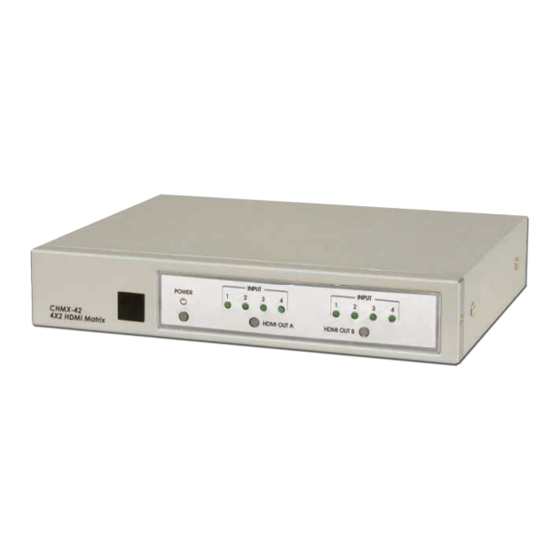

1. Introduction CHMX-42 is a high performance HDMI Matrix with remote control. It offers you maximum convenience in HDMI signal distribution when you have multiple HDMI sources and displays to connect together. Each of the four HDMI sources can be directed to any one of the two outputs, so two displays can show 2 identical or 2 different sources at the same time. -
Page 4: Rear Panel
3. Input Select/Indicators (A): Press the "HDMI OUT A" button repeatedly to switch to your desired source, and the LED will illuminate to indicate which input source is being selected, and routed to HDMI A display. 4. Input Select/Indicators (B): Press the "HDMI OUT B"... -
Page 5: Remote Control
4.3 Remote Control 1. Power: Press the button to turn on/off the unit. 2. Input Select for HDMI OUT A: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT A. 3. Input Select for HDMI OUT B: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT B. -
Page 6: Commands
4.4.2 Commands COMMAND *: command "P1" and "ST" response: P? A? B? 5. Specifications 5.1 General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input/Output: 4-in to 2-out HDMI female ports * 5V DC power supply * Dimensions: 240 (W) x 165 (D) x 49 (H)mm * Weight: 1.25kgs 5.2 Support Resolution INTPUT... -
Page 7: Connection And Installation
6. Connection and Installation Blu-ray LCD TV LCD TV...
