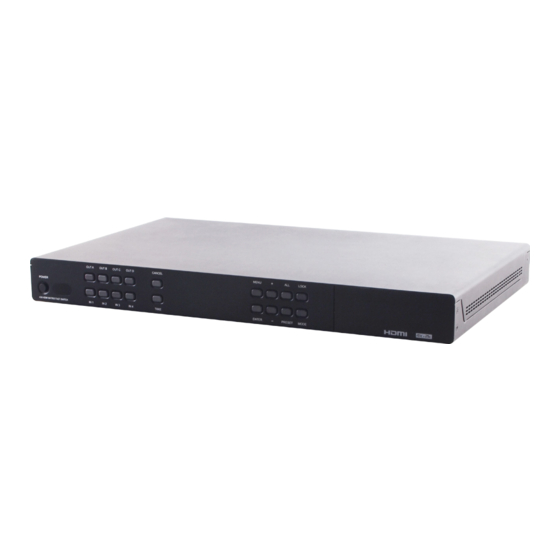

CYP CDPS-UC4H4HFS Operation Manual

CYP CDPS-UC4H4HFS Operation Manual

4 by 4 hdmi 4kx2k matrix with control system
Hide thumbs Also See for CDPS-UC4H4HFS:

Advertisement

Quick Links

CDPS-UC4H4HFS
4 by 4 HDMI 4Kx2K Matrix with Control System
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-UC4H4HFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CDPS-UC4H4HFS

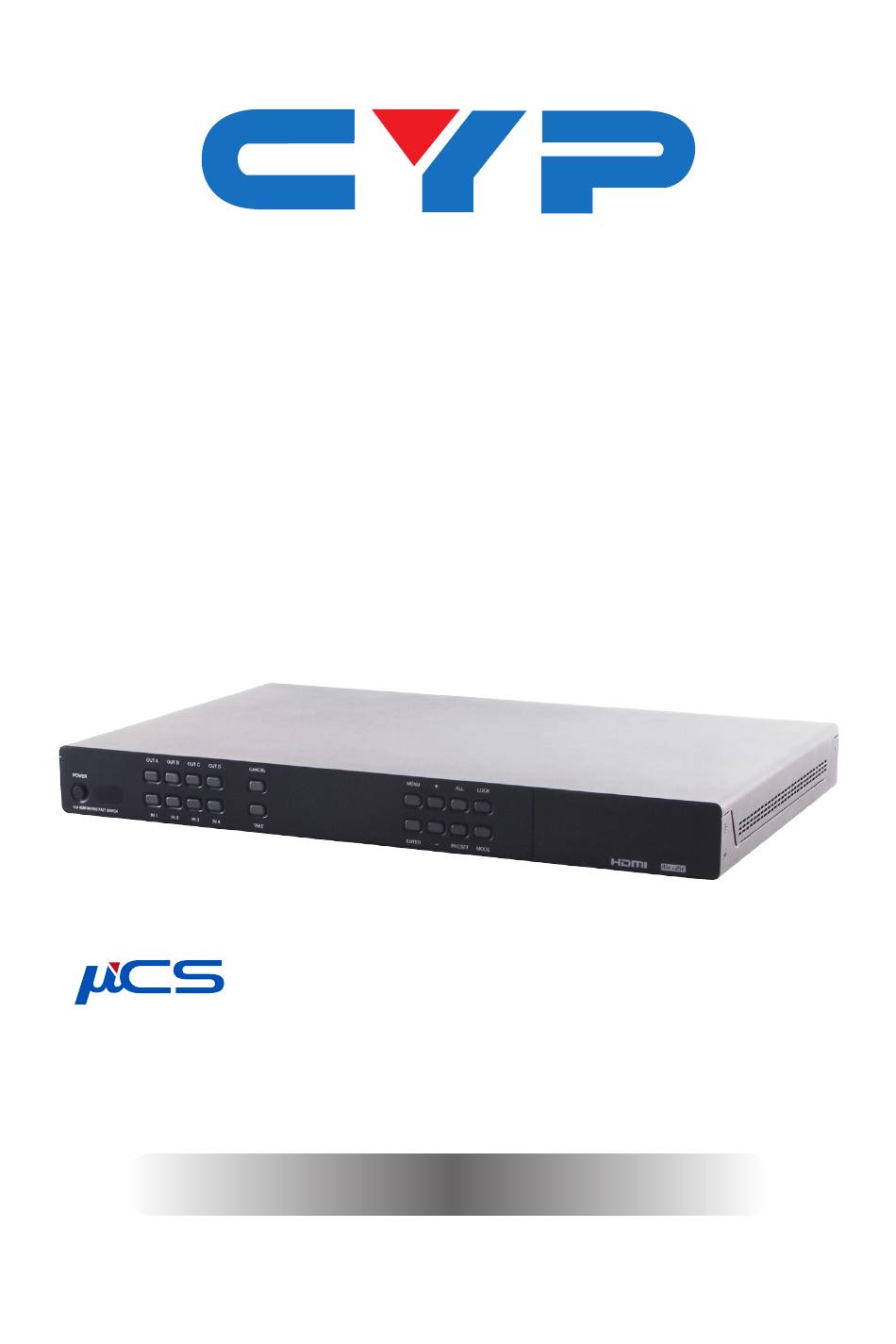

  • Page 1 CDPS-UC4H4HFS 4 by 4 HDMI 4Kx2K Matrix with Control System Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 OLED Menu ........6 6.5 IR Cable Pin Assignment....10 6.6 RS-232 Protocol .......11...
  • Page 6: Introduction

    1. INTRODUCTION This 4K2K 4 by 4 Matrix with fast switch and control system allows 4 HDMI signal sources being displayed in 4 connected HDMI displays in the way you like, fast switching technology can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. Control system features support traditional direct control systems like IR, Relay and DC trigger and indirect control systems like IR Learning, RS-232, Telnet/WebGUI controls.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • Input source equipment such as Blu-ray/DVD/PS3 player or Set- Top-Box and output HDMI TV/Display and or audio amplifier with connection cables. • Control system input devices such as security door/windows, lights, curtain, or devices like players, sound systems, or any other controllable device with IR/RS-232 or net service link design with PC/ smart phone to send commands to control the whole system.
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 10 12 OUT A OUT A OUT B OUT B OUT C OUT C OUT D OUT D CANCEL CANCEL MENU MENU LOCK LOCK POWER POWER 4X4 HDMI MATRIX FAST SWITCH IN 1 IN 1 IN 2 IN 2...
  • Page 9: Rear Panel

    6.2 Rear Panel INFRARED OUT COM 1 COM 2 DC 5V HDMI IN HDMI OUT SERVICE CONTROL RS232 IR IN 9 10 12 13 IRL: Connect with IR Receiver included in the package for IR signal learning. Send the IR signal that is to be learned by press on the remote control in direct line-of-sight towards the Receiver and use WebGUI to store and transmit the IR code.
  • Page 10: Remote Control

    HDMI OUT A~D: Connect to HDMI TV/display or HD Amplifier for output image and or audio display. COM 1~2: Connect with devices that obtain RS-232 input for control purpose. Using TELNET client to send command directly to control the device, set the connected port to 7501 with COM 1 and 7502 with COM2.
  • Page 11: Oled Menu

    PRESET: Press this button, the OLED will show preset selections then select from IN 1~4 and press “TAKE” to confirm the selection or press “CANCEL” to cancel the selection. LOCK: Press to lock on all button functions on the front panel. Press again to relieve the lock function.
  • Page 12 MAIN MENU SUB MENU DESCRIPTION DEFAULT EDID All Sink A Copy Output A 8/2D/ display EDID PCM/1080P Sink B Copy Output B display EDID Sink C Copy Output C display EDID Sink D Copy Output D display EDID 8/2D/PCM/720P Standard EDID. Content: deep color/2D3D/audio/ native resolution.
  • Page 13 MAIN MENU SUB MENU DESCRIPTION DEFAULT Matrix Preset Preset 1 IN/OUT default A=1, B=2, C=3, No.1. Preset 2 IN/OUT default No.2. Preset 3 IN/OUT default No.3. Preset 4 IN/OUT default No.4. Exit HDCP Input IN1 Standard/ Set IN1 in Standard/ Standard Apple Apple mode.
  • Page 14 MAIN MENU SUB MENU DESCRIPTION DEFAULT Source IN1 On/Off Detect IN1, IN2 Detection source with/without IN2 On/Off signal & HDCP. IN3 On/Off Detect IN3, IN4 source with/without IN4 On/Off signal & HDCP. Exit Sink A Info HPD On/Off Detect Sink A display with/without RSEN On/Off Hot-Plugging&...
  • Page 15: Ir Cable Pin Assignment

    6.5 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Grounding IR Learner IR Signal Power Grounding Note: Due to both IR Extender and IR Learner cables are with similar outlook,a part no. "CBL-IR10C3SA200A sticker has been placed to differentiate the difference on IR Learner.
  • Page 16: Rs-232 Protocol

    6.6 RS-232 Protocol MATRIX CONTROL DEVICE Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER Power Off (Standby) NONE Power On NONE IPCONFIG Display The Current IP NONE...
  • Page 17 COMMAND DESCRIPTION PARAMETER RSTIP IP Configuration Set To NONE <DHCP> A N1 Select input N to output A N1=1~4 B N1 Select input N to output B N1=1~4 C N1 Select input N to output C N1=1~4 D N1 Select input N to output D N1=1~4 I N1 Select input N to all output...
  • Page 18 COMMAND DESCRIPTION PARAMETER INNAME Show all Input name NONE INNAME N1 Show Input N1 name N1=1~4 INNAME N1 N2 Set Input N1 Name N1=1~4 N2=ABCDEFGH…(Max Length=8) OUTNAME Show all Output name NONE OUTNAME N1 Show Output N1 name N1=A~D OUTNAME N1 N2 Set Output N1 name N1=A~D N2=ABCDEFGH…(Max...
  • Page 19 COMMAND DESCRIPTION PARAMETER COMSEND N1~N3 Send Desired data to N1=COM, N2=Port 1/2, Specified COM port N3=Data String Note: Some command may require to add a carriage return (eg:\r or \ x0D) in the end to allow the system to recognize it as an end of the command.
  • Page 20: Software Application

    8=8bit/2D/PCM/4K2K 9=8bit/2D/PCM/AC3/4K2K **Active Selections ***Mode Selections 6.8 Software Application Please download the software from www.cypress.com.tw with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the Control System with PC/Laptop through the Ethernet port through an active network system and open the CDPS V2.000 application.
  • Page 21: Telnet Control

    6.9 Telnet Control To access the telnet control under MS windows, click ‘Start’ menu and type “cmd” in the search field then press enter. Under Mac OS X, go to Go→Application→Utilities→Terminal. See below for reference. Once in the command line interface (CLI) type "telnet", then the IP address, and hit enter.
  • Page 22 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
  • Page 23: Webgui Control

    6.10 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (available from OLED monitor) on the web address entry bar. A security page will appear to ask for User and Password, please key in “admin”...
  • Page 24: Edid Settings

    6.10.2 EDID Settings Click on 'EDID Settings' to select EDID Mode and Set EDID Input content for each HDMI input. 6.10.3 Macro Settings Macro 1~8 works align with Trigger IN 1~8 which means, when a trigger signal is activated the control system will execute the command under Macro Setting.
  • Page 25 Command set to control the devices within the same telnet system or internet area require to set its IP and Port number and it is strongly recommend to set the delay time >500ms in order to secure a successful command sending. Command set to control the Relay devices require to set the Port number.
  • Page 27: Command Settings

    6.10.4 Command Settings Click on 'Command Settings' to edit or delete commands up to 128 sets. Insert the command directly in the bottom column of Command Edit and name the command on the top column then click on Save Changes to store the command. Note: Some command may require to add a carriage return (eg:\r or \x0D) in the end to allow the system to recognize it as an end of the command.
  • Page 28: Trigger Settings

    6.10.5 Trigger Settings Click on 'Trigger Settings' to view the current trigger status and edit the trigger behavior. Default setting Status is on Low, Active is on Enable and Mode is on Change, where Status represent current input connection signal status, Active represent enabling or not the trigger action and Mode represent the trigger setting of the input signal.
  • Page 29: Network Settings

    6.10.7 Network Settings Click on 'Network Settings' to set the device’s IP Mode. Once the change is saved the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the WebGUI function.
  • Page 30: Connection Diagram

    7. CONNECTION DIAGRAM Integrated 3rd Party Control RS-232 Blind Screen Lighting Alarm Sensor Control Control Control RS-232 IR Blasters 1.5m IR Learner 60° 60° INFRARED OUT COM 1 COM 2 HDMI IN HDMI OUT SERVICE CONTROL IR BLASTER IR RECEIVER HDMI Inputs &...
  • Page 31 RS-232 Controlled Smart TV Device Games Console RS-232 Controlled Device PC/Laptop Media Sever LAN Connections DC 5V Power Supply RS232 IR IN IR Extender RS-232 RS-232 Equipped PC/Laptop Internet Connected Router HDMI Outputs Smart TV Smart TV Smart TV...
  • Page 32: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/3 Gbps Input Ports 4×HDMI, 1×IR Learning, 8×Triggers (Terminal Block), 2×COM (9-pin D-sub), 4×LAN (RJ- 45), 1×IP Control (RJ-45), 1×RS-232 (9-pin D-sub), 1×IR (Remote Only), 1×USB (Service Only) Output Ports 4×HDMI, 8×IR, 8×Relays (Terminal Block) HDMI Cable Length 10M/1080p, 5M/4K2K Resolutions Support...
  • Page 33: Supported Resolutions

    8.2 Supported Resolutions RESOLUTIONS INPUT OUTPUT 640×480@60/72/75/85 √ √ 720×400@85 √ √ 800×600@560/60/72/75/85 √ √ 1024×768@60/70/75/85 √ √ 1152×864@75 √ √ 1280×720@60 √ √ 1280×768@60/75/85 √ √ 1280×800@60 (RB) √ √ 1280×800@60 √ √ 1280×960@60 √ √ 1280×1024@60 √ √ 1360×768@60 √...
  • Page 34: Acronyms

    RESOLUTIONS INPUT OUTPUT 1920×1080i@50/60 √ √ 1920×1080p@24/25/30/50/60 √ √ 3840×2160p@24/25/30 √ √ 3840×2160p@50/60 (YUV420) √ √ 4096×2160p@24/25/30 √ √ 4096×2160p@50/60 (YUV420) √ √ 9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Visual Interface Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV...
  • Page 36 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
