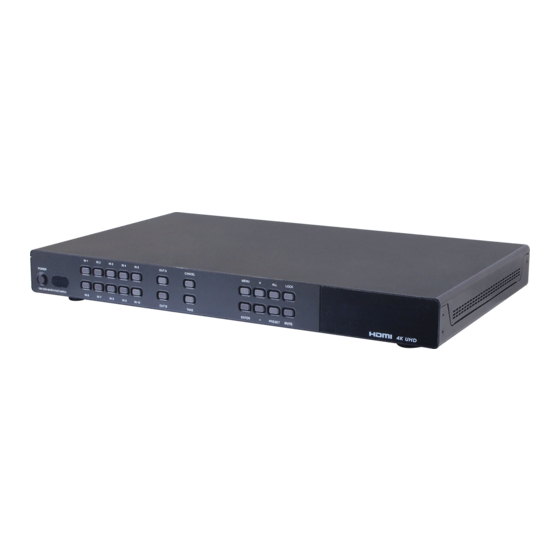

CYP CDPS-U10H2HFS Operation Manual

10 by 2 hdmi matrix fast switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CDPS-U10H2HFS
10 By 2 HDMI Matrix Fast Switch
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-U10H2HFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-U10H2HFS

Summary of Contents for CYP CDPS-U10H2HFS

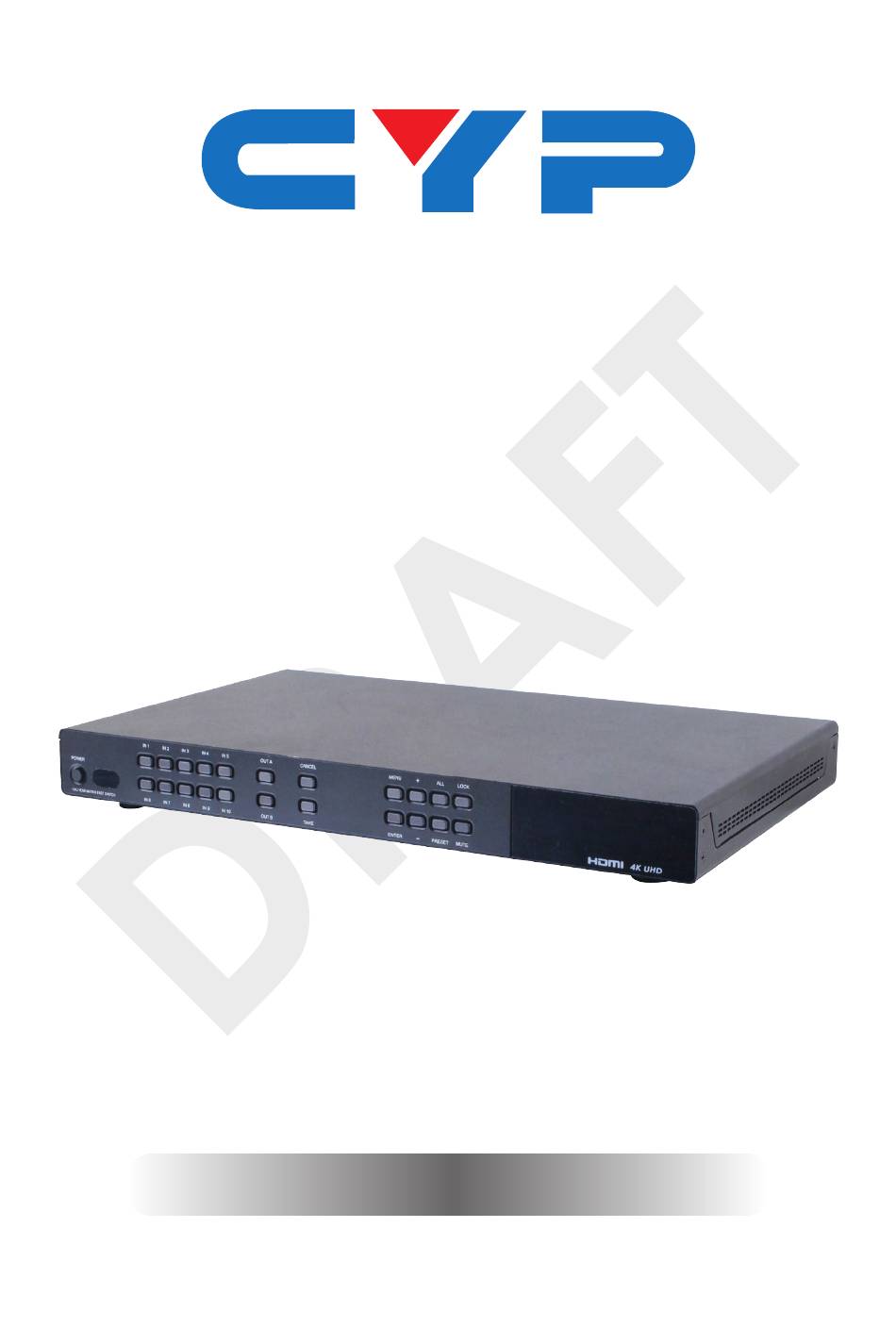

  • Page 1 CDPS-U10H2HFS 10 By 2 HDMI Matrix Fast Switch Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 Remote Control ........6 6.4 OSD Menu .........8 6.5 RS-232 Protocols ......13 6.6 IR Pin Definitions ......14...

  • Page 5: Introduction

    1. INTRODUCTION This 10 by 2 HDMI UHD Matrix is an advanced solution for switching up to 10 HDMI inputs to two HDMI outputs. It provides high performance pass-through of video/audio and is capable of receiving and transmitting 340MHz/10.2Gbps bandwidth rate with no data loss. It’s Fast Switching technology can greatly reduce the time required to swap between inputs.

  • Page 6: Features

    5. FEATURES • Supports UHD resolutions up to 4K2K@24/25/30Hz & 4K2K YUV420@60Hz • Supports HDTV resolutions up to 1080@60Hz, ‘Deep Color’ 36/30/24- bit and PC resolutions up to WUXGA@60Hz(RB) • Supports 3D • Supports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio •...

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IN 1 IN 2 IN 3 IN 4 IN 5 OUT A CANCEL MENU LOCK POWER 4K UHD 10X2 HDMI MATRIX FAST SWITCH IN 6 IN 7 IN 8 IN 9 IN 10 OUT B TAKE ENTER...
  • Page 8 ENTER Press to confirm the selection. Press these buttons to move up/down under menu selection. PRESET Press this button to recall the preset setting from 1~10. Press and select from IN1~10 then press TAKE to confirm the recall selection or press CANCEL to exit the selection.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT SERV. CONTROL RS232 IR IN DC 5V HDMI IN Connect from source equipment such as Blu-ray/DVD/PS3 players, Set-Top-Box or any HDMI equipped source device for input signal sending. HDMI OUT Connect to HDMI TV/display or HD Amplifier for output image and or audio display.

  • Page 10: Remote Control

    6.3 Remote Control POWER POWER MUTE Press this button to switch On or set the device to standby mode. MUTE Press this button to mute video and audio on OUT A or B or on all output. e.g. To mute output A OUTA →...
  • Page 11 PRESET Press this button to recall the preset setting from 1~10. Press and select from IN1~10 then press TAKE to confirm the recall selection or press CANCEL to exit the selection. To reset the Preset setting, enter into menu and select Preset setting from IN1~10 then press OUTA and select an input from IN1~10 then press OUTB and select an input from IN1~10 again and press ENTER to confirm the selection.

  • Page 12: Osd Menu

    6.4 OSD Menu Main Menu Sub Menu Description Default EDID Mode All Input port is using same EDID. In menu “EDID All”, can select suitable EDID. Appoint Each Input port can select individual EDID. In menu “EDID IN1~10” select suitable EDID. Exit EDID All Sink A...
  • Page 13 Main Menu Sub Menu Description Default 8/2D/ Standard EDID, PCM/4K2K Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, AC3/4K2K Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, Content: deep Y420 color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, Content: deep AC3/Y420 color/2D3D/audio/ native resolution Exit EDID IN1...
  • Page 14 Main Menu Sub Menu Description Default EDID IN9 Same EDID All Select Input 9’s EDID Same EDID EDID IN10 Same EDID All Select Input 10’s EDID Same EDID Matrix Preset 1 IN/OUT default No.1 A=1 , B=1 Preset Preset 2 No.2 A=1 , B=1 Preset 3...
  • Page 15 Main Menu Sub Menu Description Default IN6 Standard Set IN6 in Apple/ Standard Standard mode /Apple IN7 Standard Set IN7 in Apple/ Standard Standard mode /Apple IN8 Standard Set IN8 in Apple/ Standard Standard mode /Apple IN9 Standard Set IN9 in Apple/ Standard Standard mode /Apple...
  • Page 16 Main Menu Sub Menu Description Default Source IN1 On/Off , IN1 , IN2 detect source IN2 On/Off with/without the signal Detection (Detect Source’s 5V-pin only) IN3 On/Off , IN3 , IN4 detect source IN4 On/Off with/without the signal IN5 On/Off , IN5 , IN6 detect source IN6 On/Off with/without the signal...

  • Page 17: Rs-232 Protocols

    Main Menu Sub Menu Description Default Firmware FW Version Display the model number and FW version Update FW Update Exit Factory Do Reset Do system Reset Reset Exit Exit 6.5 RS-232 Protocols Remote Control Assignment Assignment Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 18: Ir Pin Definitions

    6.6 IR Pin Definitions IR Receiver IR Signal Power Grounding 6.7 Telnet & RS-232 Commands Description of Command Name Description parameter Power Off (Standby) NONE Power On NONE Set Output A Source N=1-10 Set Output B Source N=1-10 Set All Outputs N=1-10 Source IPCONFIG...
  • Page 19 Description of Command Name Description parameter EDIDALL Show EDID Mode NONE Source For All EDIDALL N Set EDID Mode N=1-10 Source For All EDIDIN Show Input EDID NONE Source EDIDIN N1 Show Input N1 EDID N1=1-10 Source EDIDIN N1 N2 Set Input N1 EDID N1=1-10 N2=1-10 Source...
  • Page 20 Description of Command Name Description parameter OUTNAME N1 N2 Set Output N1 Name N1=1-2 N2=ABCDEFGH(Max Length=8) Show Unit Firmware NONE Version REBOOT System Reboot NONE HELP (?) Show Command List NONE HELP N Show Descript Of N : COMMAND NAME Command FADEFAULT All Configure Set To...

  • Page 21: Telnet Control

    6.8 Telnet Control To access the telnet control in Windows 7, click on ‘Start’ menu and type “cmd” in the Search field then press enter. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” and press enter. Under Mac OS X, go to Go →...

  • Page 22: Web Gui Control

    Type HELP or ? to bring out all the commands. Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
  • Page 23 Click on Status for input and output and Preset selection. Click on IO Status to view connection status and output EDID information and to rename input and output ports.
  • Page 24 Click on Matrix Control to set the EDID mode for each and all inputs. Click on Settings to set each input’s HDCP Control and Preset Configuration.
  • Page 25 Click on Network Configuration to set the device’s IP configuration. Once the changes are saved the system will reset the IP address on device automatically and user will need to re-enter the IP address to continue the Web GUI function.
  • Page 26 7. CONNECTION DIAGRAM Note Book DVD or Blu-ray Player HDMI IN HDMI OUT SERV. CONTROL RS232 IR IN DC 5V 60° HD TV HD TV...

  • Page 27: Specifications

    8. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Input Ports 10 x HDMI, 1 x IR Extender, 1 x RJ-45 (Control), 1 x RS-232, 1 x USB (Firmware update only) Output ports 2 x HDMI Resolution HD: 480i~1080p@24/50/60, 4K2K@24/25/30 & 4K2K@60 YUV_420 IR Frequency 30~50kHz Power Supply...
  • Page 28 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50...

  • Page 29: Acronyms

    DVI and HDMI Supported Resolutions Input Output 1920x1080p@60 1920x1200@60(RB) 3840x2160@30 4096x2160@24 9. ACRONYMS ACRONYM COMPLETE TERM...
  • Page 30 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPSU10H2HFS...
