CYP CDPS-44SM Operation Manual

Hdmi 4x4 seamless matrix switcher
Hide thumbs Also See for CDPS-44SM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

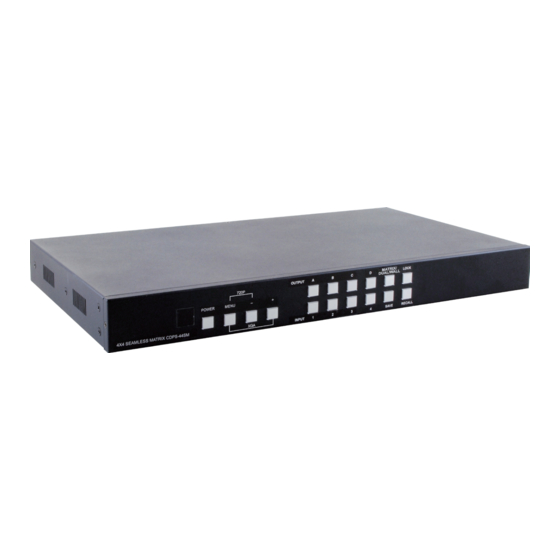

CDPS-44SM
HDMI 4x4 Seamless Matrix Switcher
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-44SM and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CDPS-44SM

Summary of Contents for CYP CDPS-44SM

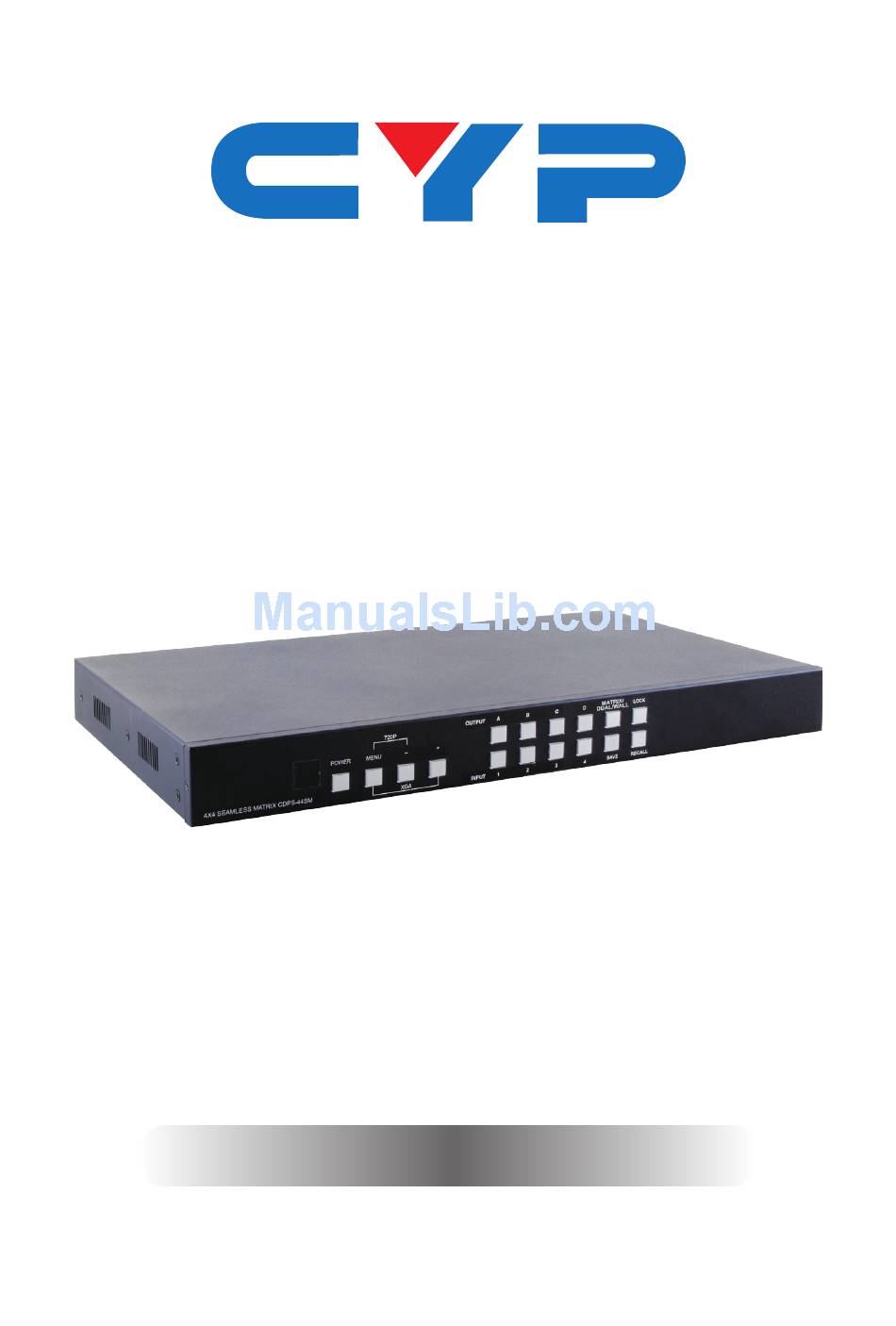

  • Page 1 CDPS-44SM HDMI 4x4 Seamless Matrix Switcher Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is be- lieved to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ........... 1 2. Applications .......... 1 3. Package Contents ....... 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel ........5 6.3 Remote Control .......

  • Page 6: Introduction

    1. INTRODUCTION The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 dif- ferent input sources to be freely selected and arranged on 4 displays (TV or monitor), providing three output modes (Matrix, Dual and TV Wall) for various applications. Matrix mode routes the source signals to output displays as regular matrix does, Dual mode allows 2 sets of 2 selected sources to show on designate output displays with POP method and TV Wall mode extends a selected source to display on...

  • Page 7: Features

    5. FEATURES • HDMI, HDCP1.1 and DVI compliant • Deep color support 8/10/12 bit source • Seamless switching • Supports three different modes: Matrix mode/ Dual mode/ TV Wall mode ■ Matrix mode: Can routes and output any 4 source to any 4 dis- plays with seamless switching Note: Under output timing 1080i@50/60 input 4 will be disabled, OSD will show “IN 4 Disabled”...

  • Page 8: Operation Controls And Functions

    6.1 Front Panel MATRIX/ OUTPUT LOCK DUAL/WALL 720P POWER MENU 4X4 SEAMLESS MATRIX CDPS-44SM INPUT SAVE RECALL IR Window: Accept IR signal from the device’s remote control included in the package. Power  ON/OFF: Press this button to power on the device or set it to standby mode.
  • Page 9  Dual mode: To combine 2 sources to be presented on each HDMI output ports (Dual A and Dual B). i. Press “Matrix/Dual/Wall” button to switch to Dual mode and LED unilluminate. ii. Press output A/B and then press corresponding input 1/2. For example: press output A then press input 1, output A will display input 1’s image on the left side, then press output B and then press input 2, output A will display input 2’s image...

  • Page 10: Rear Panel

    time, then press input 1/2/3 or 4 to save to the system memory. For example: Select Matrix mode, press output A then press input 4, then press “SAVE”. This will corresponding to remote control FAV.1~FAV.4. RECALL: When in the mode status “Matrix, Dual or Wall”, press “RECALL” and the input channel 1~4 LED will illuminate at the same time, and select input channel 1/2/3 or 4 to recall the customized screen settings and this will corresponding to remote control...

  • Page 11: Remote Control

    6.3 Remote Control Info Power Power: Press this button to switch on the device or press Out A In 1 Matrix it again to set it to standby mode. Out B In 2 Dual Info: Press this button to show Out C In 3 TV Wall...

  • Page 12: Remote Control Dip Switch

    Press favorite hot keys 1~4 to bring up the customized screen save settings. 6.3.1 Remote Control Dip Switch Open Remote control back cover to adjust dip-switch ON/OFF to match IR address setting in the OSD menu. Factory defualt is on 0. 6.4 RS-232 Protocols CDPS-44SM Remote Controller(PC) Assignment Definition ► ◄...

  • Page 13: Rs-232 & Telnet Commands

    6.5 RS-232 & Telnet Commands All commands will be not executed unless followed with a carriage return (0x0D) and commands are case-sensitive. Command Active CDPS-44SM Return AUA001 Dual A Audio channel in Left side AUA001 AUA002 Dual A Audio channel in Right side...
  • Page 14 CON??? Setting Contrast No response CON999 Command setting same as Bright- CON??? ness(BRI) EGW999 RS232 only, check current Ethernet aaa.bbb.ccc.ddd Gateway Address EIP999 RS232 only, check current Ethernet IP aaa.bbb.ccc.ddd Address EMK999 RS232 only, check current Ethernet aaa.bbb.ccc.ddd Subnet Mask Address Setting HUE No response HUE???

  • Page 15: Rs-232 & Telnet Control

    VER999 Check firmware version VER??? Example: VER110=V1.1 6.6 RS-232 & Telnet control Using PC software or Hyper terminal to configure the setting. This soft- ware application can be downloaded from the product webside. Simply control panel: Full function control panel:...

  • Page 16: Telnet Setting

    6.7 Telnet Setting Through TCP/IP protocol, to sent Port 23 for Telnet communication. From OSD menu or through RS-232 command to check Telnet con- nection behavior. 6.8 OSD MENU Main Menu Sub Menu Adjustments Default PICTURE CONTRAST 0 ~ 100 (*1) BRIGHTNESS 0 ~ 100...
  • Page 17 OUTPUT RESOLUTION 480p, 576p, 720p50, 720p60 720p60, 1080i50(*2), 1080i60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200 EXIT AUDIO EDID LPCM 2CH, LPCM LPCM 6CH, (*3) LPCM 8CH, BIT- STREAM, EXIT OSD SETTINGS POSITION LEFT T, RIGHT T, LEFT T LEFT B, RIGHT B H OFFSET...
  • Page 18 BEZEL CORRECTION CORRECTION ON, OFF (*7) H CORRECTION 0 ~ by output resolution V CORRECTION 0 ~ by output resolution EXIT RECALL / SAVE RECALL CANCEL, FAV.1 CANCEL (*8) SAVE CANCEL, FAV.1 CANCEL EXIT ETHERNET IP MODE DHCP, STATIC DHCP STATIC SET IP, MASK, GATE IP BYTE1...
  • Page 19 Note: *1 Picture: In Matrix mode, four pictures adjust simultaneously. In Dual/TV Wall mode, each picture can adjust individual and support individual last memory feature. *2 Output: In Matrix mode only support 1080i@50Hz and 1080i@60Hz *3 AUDIO EDID: Embedded input audio EDID contents, LPCM 2CH = LPCM 2CH LPCM 6CH = LPCM 2CH/ 6CH LPCM 8CH = LPCM 2HC/ 6CH/ 8CH...

  • Page 20: Connection Diagram

    system will be terminated. *10 IR ADDRESS: This setting is to match the IR remote control dip switch. Please ref- ered to 6.31. *11 INFORMATION: To show Input/Output/Audio/Mode/Firmware information. 7. CONNECTION DIAGRAM Set-top Box HDMI Video signal HDMI HDMI Cable Cable HDMI IN HDMI OUT...

  • Page 21: Specifications

    8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input port 4x HDMI (Female type) 1xUSB (Service only) Output port 4 x HDMI (Female type) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions (mm) 436(W) x 247(D) x 44(H) Weight(g)

  • Page 22: Timing

    9. TIMING 9.1 Input Support Timing Support Timing 480i@59 480p@60 576i@50 576p@50 720p@25,30,50,60, 1080i@50,60 1080p@24,25,30,50,60 640x480@60,72,75,85 720x400@70 800x600@56,60,72,75,85 1024x768@60,70,75,85 1152x864@70,75 1280x720@60cvt 1280x768@60RB,60,75 1280x800@60RB,60,75 1280x1024@60,60cvt,75 1360x768@60 1366x768@60RB,60 1400x1050@60RB,60 1440x900@60RB,60,75 1600x900@60RB 1600x1200@60 1680x1050@60RB,60 1920x1200@60RB...

  • Page 23: Output Support Timing

    9.2 Output Support Timing Support Timing 480p60 1024x768@60 576p50 1280x800@60 720p50 1280x1024@60 720p60 1366x768@60 1080i50 (Matrix Mode Only) 1440x900@60 1080i60 (Matrix Mode Only) 1600x900@60RB 1080p24 1600x1200@60 1080p50 1680x1050@60 1080p60 1920x1200@60RB Note: Under output timing 1080i@50/60 input 4 will be disabled OSD will show “IN 4 Disabled”...
  • Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPS44SM...
