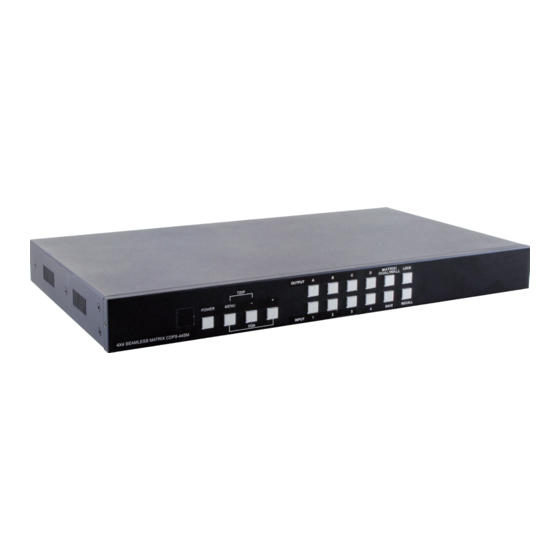

CYP CDPS-44SM Operation Manual

Hdmi 4x4 seamless quad matrix
Hide thumbs Also See for CDPS-44SM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
CDPS-44SM
HDMI 4×4 Seamless Quad Matrix
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-44SM and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CDPS-44SM

Summary of Contents for CYP CDPS-44SM

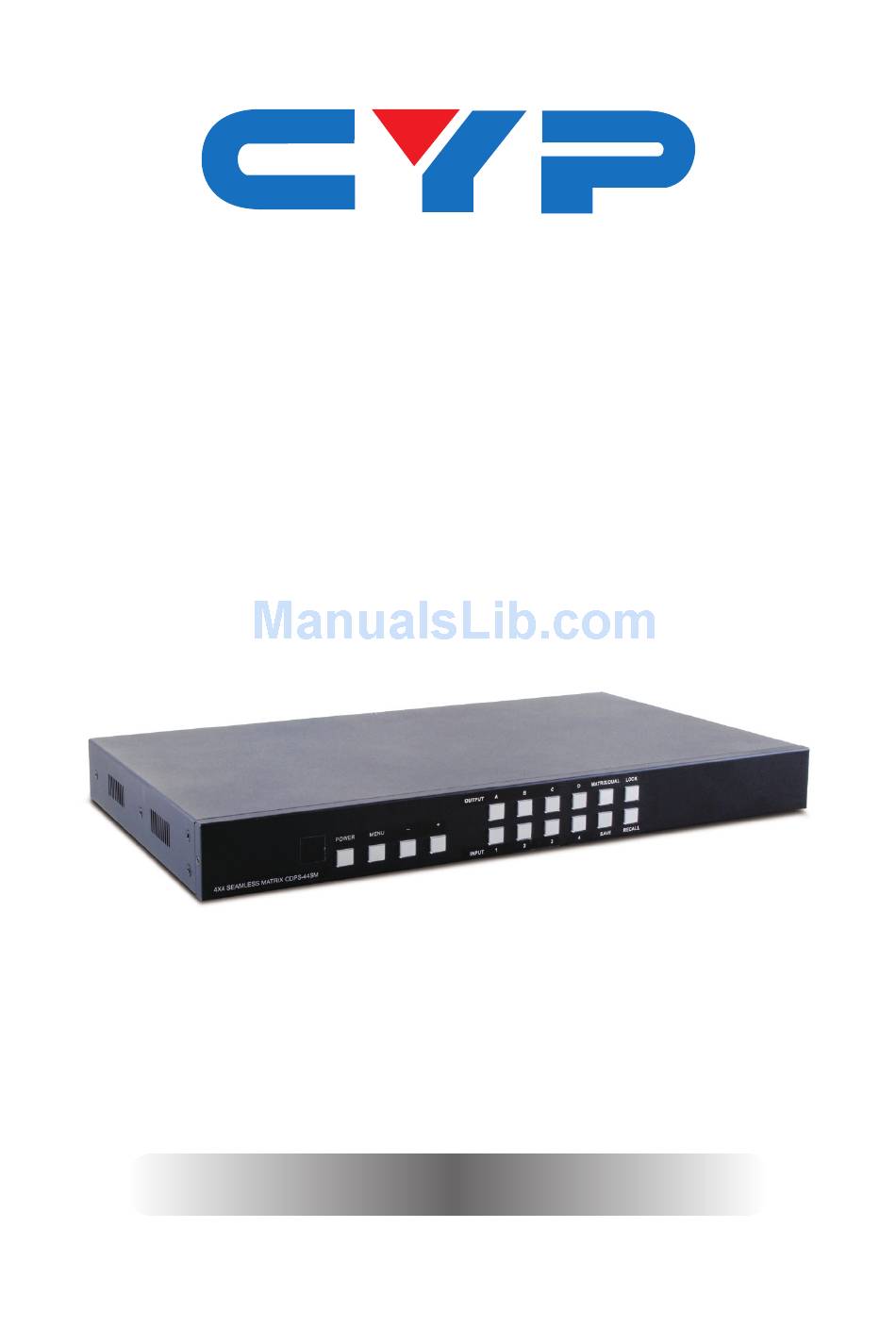

  • Page 1 CDPS-44SM HDMI 4×4 Seamless Quad Matrix Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........5 6.3 Remote Control .........6 6.4 Remote Control Dip Switch .....7 6.5 RS-232 Protocols ........7 6.6 RS-232 and Telnet Control ....8...

  • Page 6: Introduction

    1. INTRODUCTION This 4 by 4 HDMI Seamless Matrix is an advanced 4 Way HDMI switch with integrated Multi-view POP (Picture -out-of Picture) technology. This plug and play solution offers advanced control and display options for the integration of 4 sources onto 4 displays. It provides 3 output modes, Matrix, Dual and TV Wall.

  • Page 7: Features

    5. FEATURES • HDMI, HDCP1.1 and DVI compliant • Supports Deep Color 8/10/12 bit • Seamless switching of HDMI sources • Supports three different display modes: Matrix, Dual, Video Wall - Matrix mode: Can seamlessly switch between and output from any 4 sources to any 4 displays, as per a normal matrix switch - Dual mode: Can display a POP (Picture-out-of-Picture) image combined from 2 sources to be presented on the HDMI output...

  • Page 8: Operation Controls And Functions

    OUTPUT LOCK DUAL/WALL 720P POWER MENU 4X4 SEAMLESS MATRIX CDPS-44SM INPUT SAVE RECALL 9 10 IR Window: Accepts the IR signal from the supplied remote control. POWER: Press to turn the unit ON or to put it into standby mode.
  • Page 9 input (1 or 2). For example, press the output 'A' button then press the input 1 button, output A will display the video from input 1 on the left side of the screen, then press the output 'B' button and then press the button for input 2, output 'A' will display the video from input 2 on the right side of the screen.

  • Page 10: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI IN 1/2/3/4: Connect to HDMI source devices such as DVD/ Blu-ray players or PCs/Laptops. HDMI OUT A/B/C/D: Connect with HDMI equipped displays such as HDTVs/Monitors. CONTROL: Connect to an active network for telnet control (Please refer to Section 6.6 for RS-232/Telnet).

  • Page 11: Remote Control

    6.3 Remote Control Info Power Power: Press to turn the unit ON or to put it into Out A In 1 Matrix standby mode. Out B In 2 Dual Info: Press this button to show the device’s Out C In 3 TV Wall firmware version.

  • Page 12: Remote Control Dip Switch

    6.4 Remote Control Dip Switch Open the Remote control back cover to adjust the dip-switch settings (ON/OFF) to match the IR address setting in the OSD menu. Default setting is 0. 6.5 RS-232 Protocols HDMI SEAMLESS MATRIX REMOTE CONTROL Assignment Assignment ►...

  • Page 13: Rs-232 And Telnet Control

    6.6 RS-232 and Telnet Control Using PC software or Hyper terminal to configure the setting. This software application can be downloaded from the product website. Simple-function Control Panel: Full-function Control Panel: Telnet Setting: The device can be controlled through Telnet over TCP/IP. Use Port 23 for Telnet communication.

  • Page 14: Rs-232 And Telnet Commands

    6.7 RS-232 and Telnet Commands COM- DESCRIPTION RESPONSE MAND AUA001 Dual A Audio channel in Left side AUA001 AUA002 Dual A Audio channel in Right side AUA002 AUA999 Check Dual A Audio channel status AUA??? AUB001 Dual B Audio channel in Left side AUB001 AUB002 Dual B Audio channel in Right side...
  • Page 15 COM- DESCRIPTION RESPONSE MAND BEV??? Vertical (V) Bezel Correction BEV??? ???=000~Maximum BEV998 Check current Vertical (V) Bezel Correction BEV??? maximum value BEV999 Check current Vertical (V) Bezel Correction BEV??? setting value BRI??? BRIGHTNESS setting No response - Matrix mode: ???=000~100 - Dual/TV Wall mode: ???=(000~100)+200×(OUT No.-1 e.g.
  • Page 16 COM- DESCRIPTION RESPONSE MAND INP??? INPUT selection???=001~004=IN 1~4 INP??? Execute OUT??? INP999 Check current INPUT INP??? LCK000 Un-lock the keypad LCK000 LCK001 Lock the keypad LCK001 LCK999 Check current LOCK/UN-LOCK status LCK??? MNE001 OSD Menu EXIT No response MND001 OSD Menu DOWN No response MNL001 OSD Menu LEFT (-)
  • Page 17 COM- DESCRIPTION RESPONSE MAND RST002 PICTURE reset RST002 SAT??? SATURATION setting No response SAT999 Command setting as BRI??? SAT??? SAV??? Save customized screen settings SAV??? ???=001~004=FAV.1~4 VER999 Check FIRMWARE version e.g. VER110=V1.1 VER??? Note: Commands will be not executed unless followed with a carriage return (0x0D). Commands are case-sensitive.

  • Page 18: Osd Menu

    6.8 OSD Menu MAIN MENU SUB MENU ADJUSTMENTS DEFAULT PICTURE CONTRAST 0 ~ 100 BRIGHTNESS 0 ~ 100 SATURATION 0 ~ 100 0 ~ 100 DUAL AL DUAL AR DUAL BL DUAL BR OUT A OUT B OUT C OUT D D/T RESET RESET ALL EXIT...
  • Page 19 MAIN MENU SUB MENU ADJUSTMENTS DEFAULT AUDIO EDID LPCM LPCM 2CH LPCM 6CH LPCM 8CH BITSTREAM EXIT OSD SETTINGS LEFT T POSITION LEFT T RIGHT T LEFT B RIGHT B H OFFSET 0 ~ 20 V OFFSET 0 ~ 20 TRANSPARENCY 0 ~ 9 MENU TIMEOUT...
  • Page 20 MAIN MENU SUB MENU ADJUSTMENTS DEFAULT BEZEL CORRECTION CORRECTION H CORRECTION 0 ~ By Output Resolution V CORRECTION 0 ~ By Output Resolution EXIT RECALL/SAVE CANCEL RECALL CANCEL FAV.1 ~ 4 CANCEL SAVE CANCEL FAV.1 ~ 4 EXIT ETHERNET DHCP IP MODE DHCP STATIC...
  • Page 21 MAIN MENU SUB MENU ADJUSTMENTS DEFAULT FACTORY DEFAULT EXIT INFORMATION IN/OUT RESOLUTION SOURCE HDCP AUDIO OUT MODE FIRMWARE VERSION EXIT EXIT Note: 1. PICTURE: - In Matrix mode, the settings for all four pictures are adjusted simultaneously. - In Dual/TV Wall mode, the settings for each picture can adjusted individually and the last memory feature is supported individually . 2. OUTPUT RESOLUTION: - The 1080i@50 and 1080i@60 output resolutions are supported in ‘Matrix’ mode only. When these output resolutions are used, Input Port 4 will not function and will not be selectable in the OSD Menu. In ‘Dual’ or ‘TV Wall’ modes these output resolutions are unavailable and can not be selected in the OSD menu. 3. AUDIO EDID: - Embedded EDID for input audio: - LPCM 2CH = LPCM 2CH - LPCM 6CH = LPCM 2CH/ 6CH - LPCM 8CH = LPCM 2HC/ 6CH/ 8CH - BITSTREAM = LPCM 2CH, AC3, DTS...
  • Page 22 4. MENU TIMEOUT: - When switched to OFF, MENU and INFO will continue showing on the screen 5. HDCP INPUT: - ACCEPT: Supports HDCP encrypted source (default setting) - NOT ACCEPT: Does not support HDCP encrypted source. For example: Apple TV. 6. HDCP OUTPUT: - FOLLOW INPUT: If the source has HDCP encryption the output will support HDCP. If the source does not have HDCP encryption the output will not support HDCP. If, when in Dual mode, either input (Left or Right) supports HDCP, the output will be HDCP encrypted. - ALWAYS ON: When in this mode, all connected TV/Monitors need to support HDCP in order to avoid switching the sources from non- HDCP to HDCP, or flashing or blank image. 7. BEZEL CORRECTION: - TV Wall mode only. After adjustment the settings are stored in the last memory function. 8. RECALL/SAVE: - To SAVE or RECALL the input/output settings, the system supports last memory function to save all the setting. 9. Ethernet RE-LINK: - After the setup, use the RE-LINK option in the OSD menu to re- connect the system again. 10. Ethernet TIMEOUT: - Select OFF to cancel the time out function. When no Telnet commands are received within the time limit set in the TIMEOUT setting the telnet system will be terminated.

  • Page 23: Resolution Supports

    6.9 Resolution Supports INPUT SUPPORT TIMING OUTPUT SUPPORT TIMING 480i@59 480p@60 480p@60 576p@50 576i@50 720p@50 576p@50 720p@60 720p@25, 30, 50, 60, 1080i@50 (Matrix Mode Only) 1080i@50, 60 1080i@60 (Matrix Mode Only) 1080p@24, 25, 30, 50, 60 1080p@24 640×480@60, 72, 75, 85 1080p@50 720×400@70 1080p@60...

  • Page 24: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Camera Blu-ray Player Set-top Box Games Console Router HDMI Inputs Smartphone or Tablet Device Power HDMI IN HDMI OUT CONTROL RS232 DC 12V Supply SERVICE ONLY HDMI Outputs RS-232 RS-232 Enabled PC/Laptop or Control System HDTV HDTV HDTV HDTV...

  • Page 25: Specifications

    8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI (Female) 1×USB (Service only) Output Ports 4×HDMI (Female) Power Supply 12 V/3 A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 432 mm (W)×247 mm (D)×44 mm (H) Weight...
  • Page 28 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
