CYP CDPS-UC4H4HFS Operation Manuals

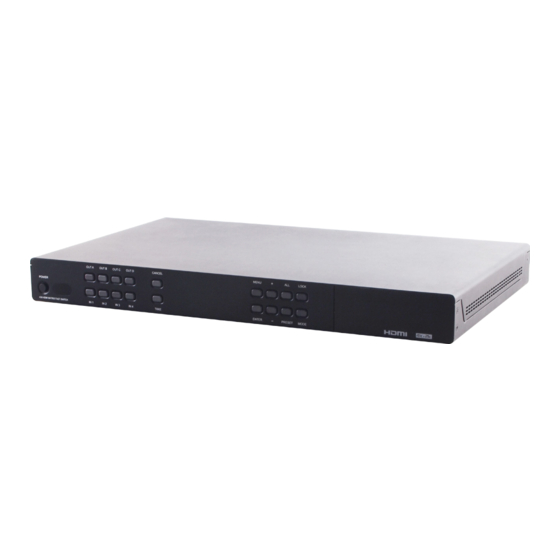

4x4 hdmi 4k uhd matrix with control system center
Hide thumbs Also See for CDPS-UC4H4HFS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
CDPS-UC4H4HFS
4×4 HDMI 4K UHD Matrix
with Control System Center
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-UC4H4HFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-UC4H4HFS

Summary of Contents for CYP CDPS-UC4H4HFS

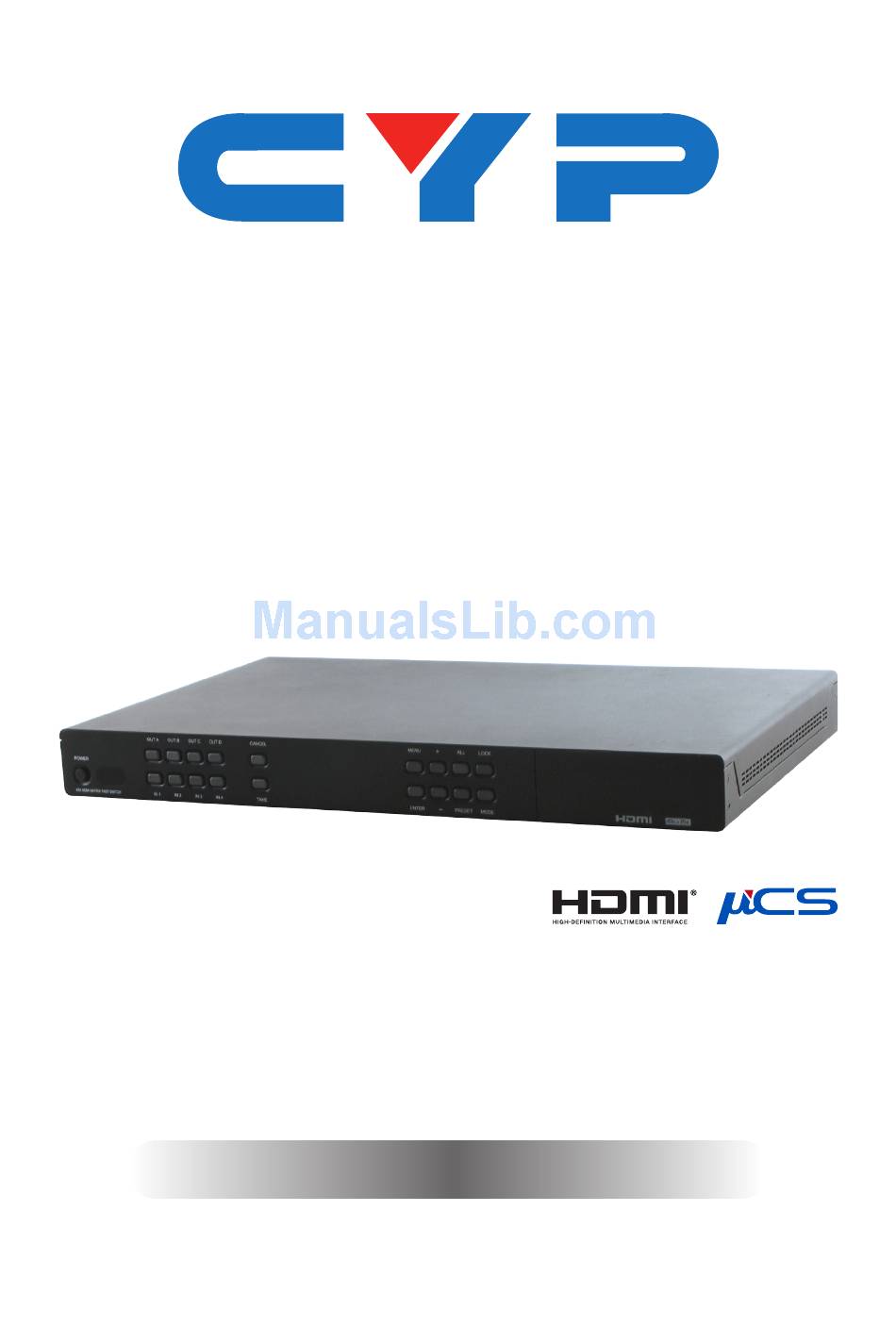

  • Page 1 CDPS-UC4H4HFS 4×4 HDMI 4K UHD Matrix with Control System Center Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Remote Control ......... 6 6.4 OLED Menu ..........7 6.5 IR Cable Pin Assignment......

  • Page 6: Introduction

    1. INTRODUCTION This 4×4 HDMI 4K UHD Matrix allows up to 4 HDMI sources to be displayed on any of up to 4 HDMI displays. The built-in fast switching technology greatly reduces the time required between switches before a newly selected source is live. The included control system functionality provides access not only to direct but also indirect control interfaces for all of your devices.

  • Page 7: System Requirements

    • 1×Power Cord • 1×Rack Mount Ears (Set of 2) • 1×Operation Manual 4. SYSTEM REQUIREMENTS • HDMI input source equipment such as Blu-ray players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers.

  • Page 8: Operation Controls And Functions

    • Supports 8 trigger inputs with a voltage range of 0~15V (triggers at • Supports baud rates up to 115,200bps • Supports 10/100Mbps Ethernet network connections 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 10 12 OUT A OUT A OUT B OUT B OUT C...

  • Page 9: Rear Panel

    +/-: Press these buttons to move up and down within menus. ALL: Press this button to select all outputs simultaneously and enter input selection mode. PRESET: Press this button to enter or exit “Preset” mode. The OLED will display “Preset N” where “N” is the currently selected preset. Pressing “IN 1~4”...
  • Page 10 TRIGGER IN 1~8: Connect to any device with trigger or switch functionality such as window security alarms, motion detectors, door switches, etc. Each of the 8 trigger inputs will activate the associated macro when triggered. The upper row of contacts should be connected to the positive pins of your sources and the lower row of contacts should be connected to the negative pins.

  • Page 11: Remote Control

    6.3 Remote Control POWER: Press this button to power on the device or place it into stand-by mode. OUT A IN 1 OUT A~D: Press one or multiple “OUT” OUT B IN 2 TAKE buttons followed by an “IN” button to OUT C CANCEL IN 3...

  • Page 12: Oled Menu

    6.4 OLED Menu MAIN MENU SUB MENU DESCRIPTION EDID Mode All input ports will use the same EDID. Select the EDID under the “EDID All” menu item. Default: All Appoint Each input can have its own EDID. Choose EDIDs within the “EDID IN1~4” menu items.
  • Page 13 MAIN MENU SUB MENU DESCRIPTION Matrix Preset Preset 1 Display or change routing presets 1~4. Preset 2 Preset 3 Default: A=1, B=2, C=3, D=4 Preset 4 Exit HDCP Input IN1 Standard/Apple Set inputs 1~4 to Standard or Apple mode. IN2 Standard/Apple IN3 Standard/Apple Default: Standard IN4 Standard/Apple...
  • Page 14 MAIN MENU SUB MENU DESCRIPTION Source Detection IN1 On/Off Display current inputs 1~4 detection status. IN2 On/Off IN3 On/Off IN4 On/Off Exit Sink A Info Type/Manufacturer/ Type=HDMI or DVI. Model Native Display's native resolution. Video Format Displays color bit depth, 2D/3D, and 4K support.

  • Page 15: Ir Cable Pin Assignment

    6.5 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground IR Learner IR Signal Power Ground Note: Due to the similarity of the IR Extender and IR Learner cables a part no. “CBL-IR10C3SA200A” sticker has been placed on the IR Learner to help differentiate it.

  • Page 16: Rs-232 Protocol

    6.6 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data Bits: 8 Parity: None Flow Control: None Stop Bits: 1...

  • Page 17: Rs-232 And Telnet Commands

    6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION Power off. (Stand-by mode) Power on. IPCONFIG Display the current IP configuration. SIPADDR X.X.X.X Set Ethernet IP address. X=0~255 SNETMASK X.X.X.X Set Ethernet Netmask. X=0~255 SGATEWAY X.X.X.X Set Ethernet Gateway. X=0~255 HTTPPORT N1 Set HTTP port number.
  • Page 18 COMMAND DESCRIPTION EDIDALL Show EDID source for “All” mode. EDIDALL N1 Set EDID source for “All” mode. N1=0~9 0=Sink A 1=Sink B 2=Sink C 3=Sink D 4=8/2D/PCM/720p 5=8/2D/PCM/AC3/720p 6=8/2D/PCM/1080p 7=8/2D/PCM/AC3/1080p 8=8/2D/PCM/4K2K 9=8/2D/PCM/AC3/4K2K EDIDIN Show each input’s EDID source for “Appoint” mode. EDIDIN N1 Show input N1’s EDID source for “Appoint”...
  • Page 19 COMMAND DESCRIPTION HDCPIN Show HDCP enable status for all inputs. HDCPIN N1 Show HDCP enable status for input N1=1~4 HDCPIN N1 N2 Set HDCP enable state for input N1. N1=1~4 N2=0~1 (0=Off, 1=On) PRESET Show all preset configurations. PRESET N1 Activate preset N1.
  • Page 20 COMMAND DESCRIPTION INNAME N1 N2 Set name for input N1. N1=1~4 N2={Name} (Up to 8 characters, no spaces) OUTNAME Show names for all outputs. OUTNAME N1 Show name for output N1. N1=A~D OUTNAME N1 N2 Set name for output N1. N1=A~D N2={Name} (Up to 8 ASCII characters, no spaces)
  • Page 21 COMMAND DESCRIPTION CMDTBL ADD N1 N2 Change contents of command N1. N1=1~128 N2={Command string} (Up to 439 ASCII characters) CMDTBL DEL N1 Delete the contents of command N1. N1=1~128 CMDTBL NAME N1 N2 Change the name of command N1. N1=1~128 N2={Name} (Up to 24 ASCII characters, spaces allowed) MACRO RUN N1...
  • Page 22 COMMAND DESCRIPTION IRLEARN N1 Capture and then display the IR code from an IR remote button press. N1=0 (Format) RELAY N1 N2 Set relay N1’s state. N1=1~8 N2=OPEN, CLOSE, TOGGLE TRIGGER STATUS N1 Show trigger N1’s state. N1=1~8 TRIGGER INFO N1 Show trigger N1’s configuration info.

  • Page 23: Telnet Control

    6.8 Telnet Control Before attempting to use telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start”...
  • Page 24 This will connect us to the unit we wish to control. Type “help” to list the available commands. Note: • Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. • If the IP address is changed then the IP address required for Telnet access will also change accordingly.

  • Page 25: Webgui Control

    6.9 WebGUI Control • Install the Device Discovery Tool Please obtain the Device Discovery software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software.

  • Page 26: Routing Settings

    • Login to the WebGUI Open a web browser on a PC/Laptop that is connected to an active network and type the unit's IP address (available from the OLED menu) into the web address entry bar. The login screen will appear and ask for a Username and Password.
  • Page 27 (1) Renaming I/O: All inputs and outputs can be renamed as required (up to 8 characters long). Click on the “Edit” icon ( ) to change the input and output port names. Click on the “Save” icon ( ) to confirm the changes.

  • Page 28: Edid Settings

    6.9.2 EDID Settings Click on the “EDID Settings” tab to select the EDID mode and the EDID(s) to use. Select “All” to pick a single EDID to be sent to all inputs. Select “Appoint” to pick individual EDIDs for each input. You can choose to use the EDID from one of your connected display devices, or you may choose from one of the built in EDIDs.
  • Page 29 Click on the “Edit” icon ( ) to edit each button’s macro. At the top of the Macro edit window is a text field where you can edit the name of the macro. Type your new macro name into the box and it will be saved when the macro is saved.

  • Page 30: Command Settings

    network, or across the internet requires the IP address and network port number of the destination device. Once the destination information is complete please click on the “Save Change” button. Note: It is strongly suggested to not set a delay time less than 100ms for system, RS-232, IR, and relay commands or less than 500ms for Telnet commands to ensure that the command is properly received and executed before the next command is sent.

  • Page 31: Trigger Settings

    wish to learn. A command string will then appear in the text entry window containing the information captured from the IR remote. (3) Entering Text Command: For plain text commands, simply enter the text command into the entry window. Once the command setting is complete please click on the “Save Change”...

  • Page 32: Uart Settings

    6.9.6 UART Settings Click on the “UART Settings” tab to configure each COM port's Baud Rate, Data Bit, Parity, and Stop Bit. Values that can’t be directly selected here may be set via Telnet or RS-232. After changing a COM port’s settings please click on the “Save”...

  • Page 33: System Settings

    6.9.8 System Settings Click on the “System Settings” tab to make changes to various system settings. From this tab you can change the WebGUI login password, login timeout settings, power the unit on/off (stand-by), and switch the matrix mode between Take and Real Time mode. You may also save the full system configuration, including all macros, to your connected PC/Laptop or restore them from a previously saved configuration.

  • Page 34: Connection Diagram

    7. CONNECTION DIAGRAM Integrated 3rd Party Control RS-232 Outputs Alarm Blind Screen Lighting Sensor Control Control Control Relay Outputs Trigger Inputs IR Blasters 1.5m 60° 60° IR Learner 60° INFRARED OUT COM 1 COM 2 HDMI IN HDMI OUT SERVICE CONTROL IR BLASTER IR EXTENDER...
  • Page 35 -232 Controlled Device Smart TV -232 Controlled Device Internet Connected Router PC/Laptop Media Sever LAN Connections DC 5V Power Supply RS232 IR IN RS-232 Equipped RS-232 Input IR Extender PC/Laptop IP-Control Enable LAN Connection PC/Laptop HDMI Outputs Smart TV Smart TV Smart TV...

  • Page 36: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340MHz/10.2Gbps Input Ports 4×HDMI, 1×IR Learner (3.5mm), 1×IR Extender (3.5mm), 8×Trigger (2-pin Terminal Block) Output Ports 4×HDMI, 8×IR Blaster (3.5mm), 8×Relay (2- pin Terminal Block), 2×COM (9-pin D-sub), 4×LAN (RJ45) 1×IP Control (RJ45), 1×RS-232 (9-pin D-sub) Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0) VGA@60Hz - WUXGA@60Hz (RB)

  • Page 37: Video Specifications

    Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 16.5W 8.2 Video Specifications Supported Resolutions (Hz) Input Output 640×480@60/72/75/85   720×400@85   800×600@56/60/72/75/85   1024×768@60/70/75/85   1152×864@75   1280×720@60 ...
  • Page 38 Supported Resolutions (Hz) Input Output 720×576p@50   1280×720p@50/60   1920×1080i@50/60   1920×1080p@24/25/30/50/60   3840×2160p@24/25/30   3840×2160p@50/60 (YUV 4:2:0)   4096×2160p@24/25/30   4096×2160p@50/60 (YUV 4:2:0)  ...

  • Page 39: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television HTTP HyperText Transfer Protocol Infrared Local Area Network LPCM Linear Pulse-Code Modulation OLED...
  • Page 40 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
