Changing EDID mode:

It is recommended to keep the EDID in the factory default MODE1.
If necessary, you may set to different EDID mode by following these
instructions.

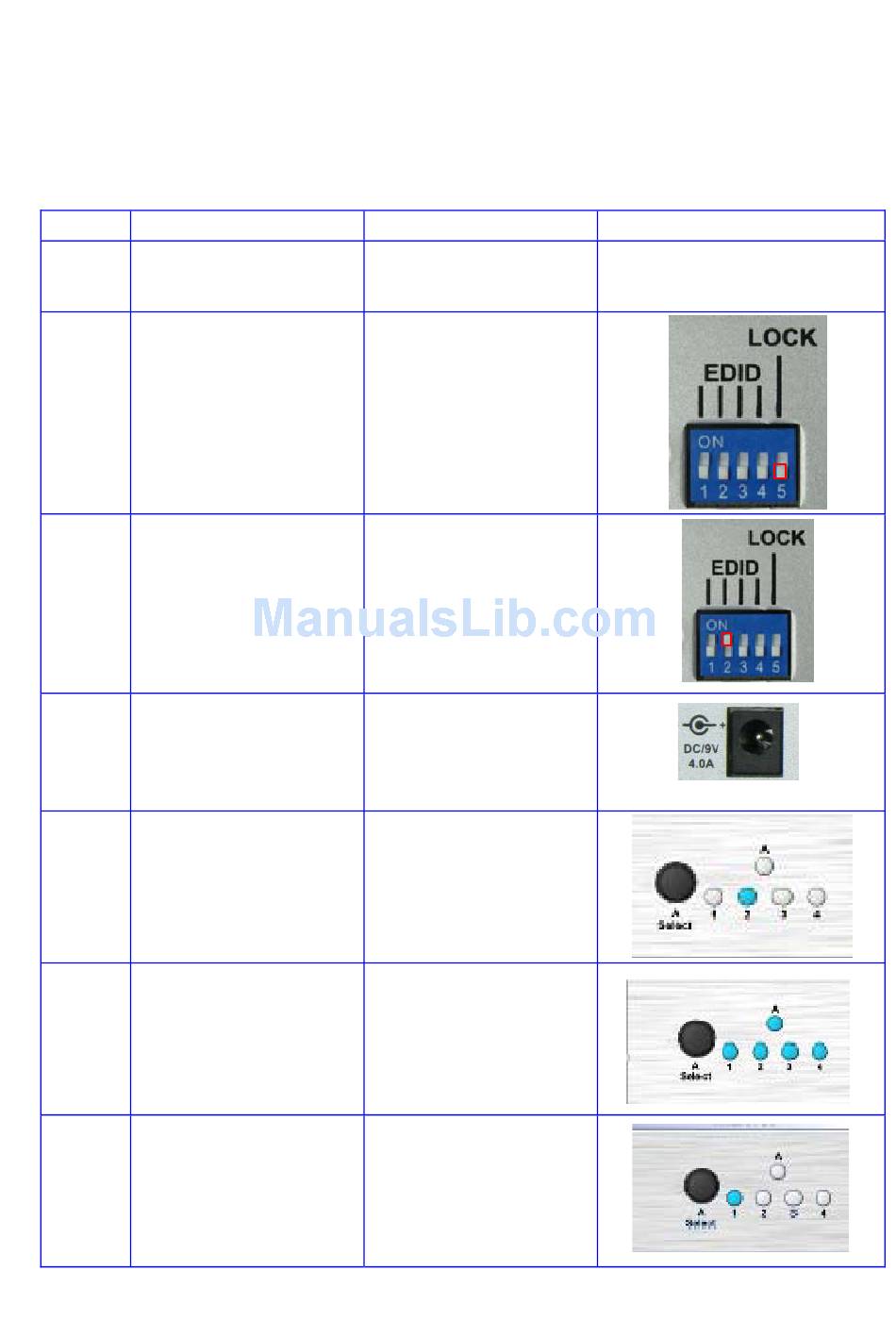

Step Action
1 Disconnect all sources
and display from
Matrix
2 Set switch 1,2,3,4,5 to
down position as
shown
3 Set the EDID to the
mode desired. (MODE
2 shown.)
4 Reset Power to the
Matrix by
disconnecting the
power and
reconnecting power.
5 The LED will now
indicate the EDID
Mode that you will
program.(mode 2
shown)
6 Press the "A"
button on the front
panel. LED will flash
for ~2 min while
programming.
7 Wait.
Programming is
complete when LED
indicates "1"
See page 10 for other
EDID modes
LED will flash:
1=Mode 1
2=Mode 2
3=Mode 3
4=Mode 4
1+4=Mode 5
Programming will take
~2 minutes.
LED will flash
while programming.
11
