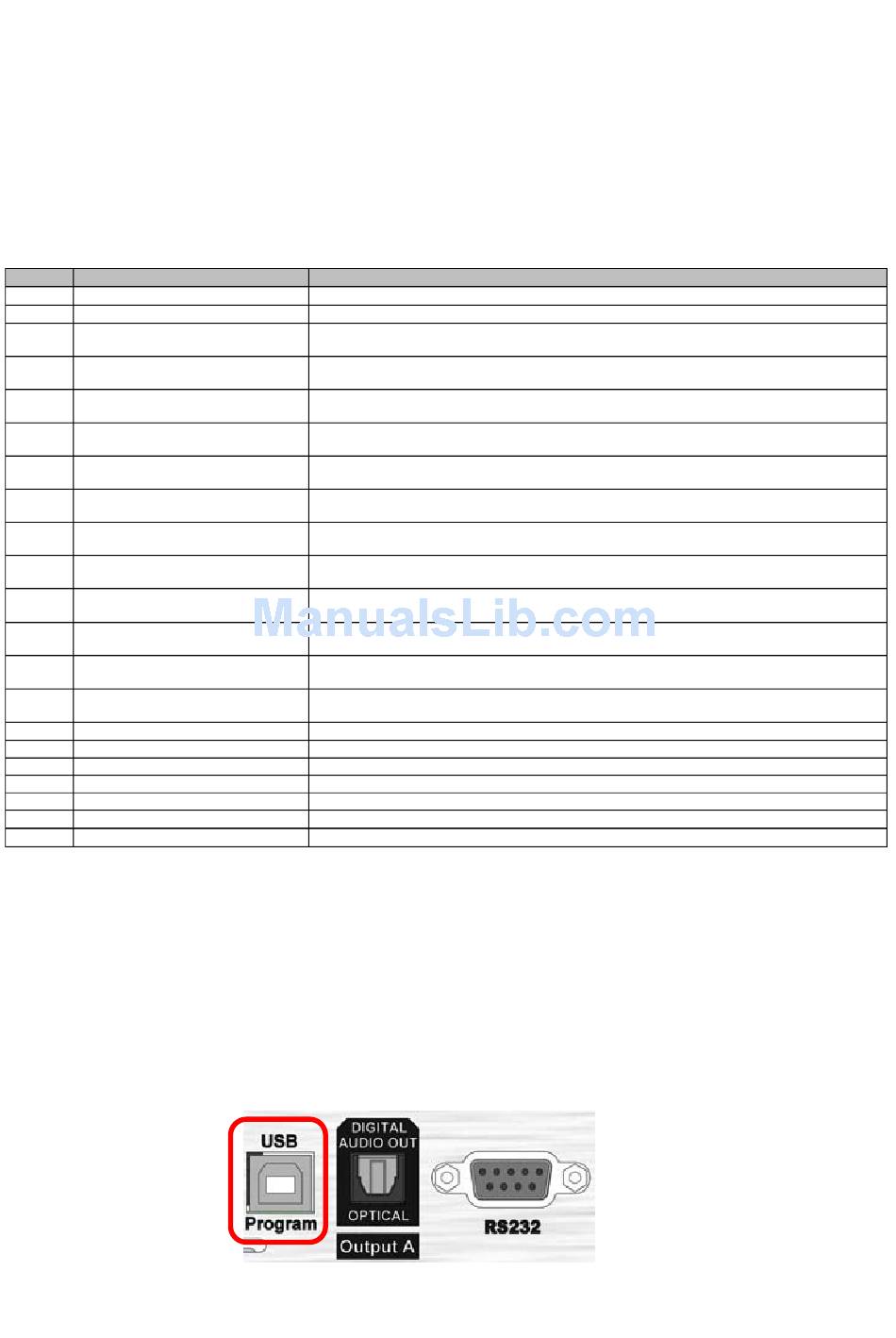

Port Status Feedback:

The matrix can return a 19byte feedback string to provide status.
Description
Byte 1 STX
Byte 2 states which HDMI input OUTPUT A is
viewing ( Input 1,2,3 or 4)
Byte 3 states which HDMI input OUTPUT B is
viewing ( Input 1,2,3 or 4)
Byte 4 states which HDMI input OUTPUT C is
viewing ( Input 1,2,3 or 4)
Byte 5 states which HDMI input OUTPUT D is
viewing ( Input 1,2,3 or 4)
Byte 6 states which HDMI input OUTPUT E is
viewing ( Input 1,2,3 or 4)
Byte 7 states which HDMI input OUTPUT F is
viewing ( Input 1,2,3 or 4)
Byte 8 states which HDMI input OUTPUT G is
viewing ( Input 1,2,3 or 4)
Byte 9 states which HDMI input OUTPUT H is
viewing ( Input 1,2,3 or 4)
Byte 10 states if HDMI Input 1 is connected and
detected.
Byte 11 states if HDMI Input 2 is connected and
detected.
Byte12 states if HDMI Input 3 is connected and
detected.
Byte 13 states if HDMI Input 4 is connected and
detected.
Byte 14 LED on or off
Byte 15 Scan on or off
Byte 16 Standby or ON
Byte 17 States Optical Output source
Byte 18 Aux Audio Input selection
Byte 19 ETX
Invalid Command

USB Service Port:

The USB port is for service and EDID updates if needed.
Contact us for this feature.
Feedback Status code: byte 1 --> STX 11111111112222222ETX <-- byte 19
Start of Text ( header)
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable
0 = HDMI input 1 NOTdetected, 1 = HDMI input 1 detected, N = not applicable
0 = HDMI input 2 NOTdetected, 1 = HDMI input 2 detected, N = not applicable
0 = HDMI input 3 NOTdetected, 1 = HDMI input 3 detected, N = not applicable
0 = HDMI input4 NOTdetected, 1 = HDMI input 4 detected, N = not applicable
0= LED OFF, 1= LED ON, N = not applicable
0= SCAN OFF, 1= SCAN ON, N = not applicable
0= Standy , 1= ON, N = not applicable
5= HDMI Audio N=NA
0=Aux audio input NOT selected, 1 = Aux Audio input selected, N=NA
End of Text ( header)
STX?invalid?command? ETX
