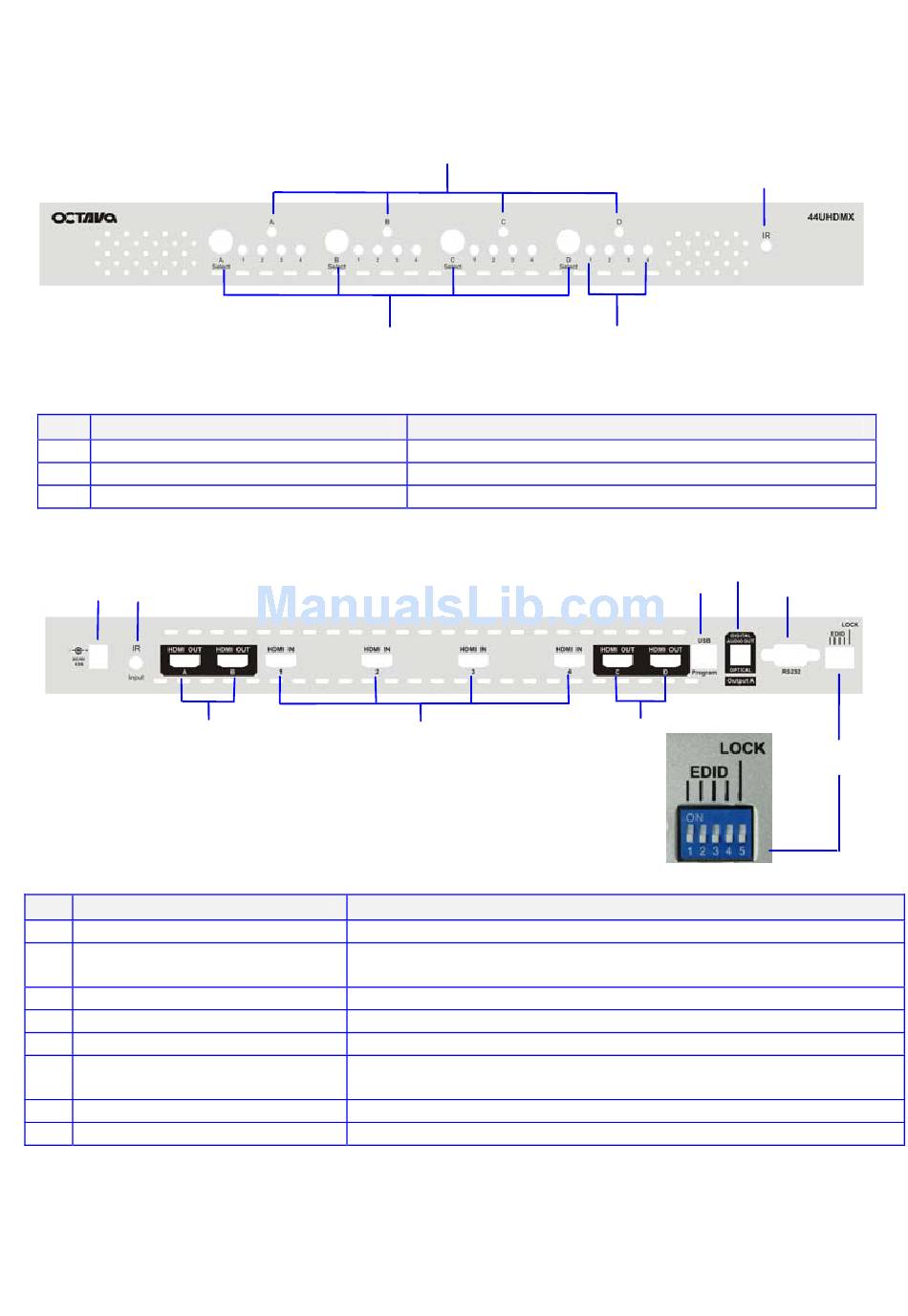

Front View - Octava 44UHDMX Installation Manual

1 Output Select
2 LED Indicator
3 IR Receiver
4 5
6
Item
4 Power 9V
5 Wired IR input
6 HDMI Outputs(A-D)
7 HDMI Input (1-4)
8 USB Port
9 Optical Audio Output
10 RS232 Port
11 EDID Switch
2- LED Indicators
1- Output Select
Item
Back View
connect Octava supplied IR Receiver Extension cable ( optional)
for hidden cabinet installs requiring line of sight for IR control.
connect High Speed HDMI cables to AVR or Display device.
connect High Speed HDMI cables to Source device.
for custom EDID/ code updates
Outputs audio over Toslink. Audio will play the Out A source
selection.
for external control of Matrix via PC or 3rd party Control system.
For EDID Management. See page 10

Front View

2- LED Indicators
Press to select switch input sources
IR receiver
7
Description
5
3- IR Receiver
Description
9
8
6
10
11
