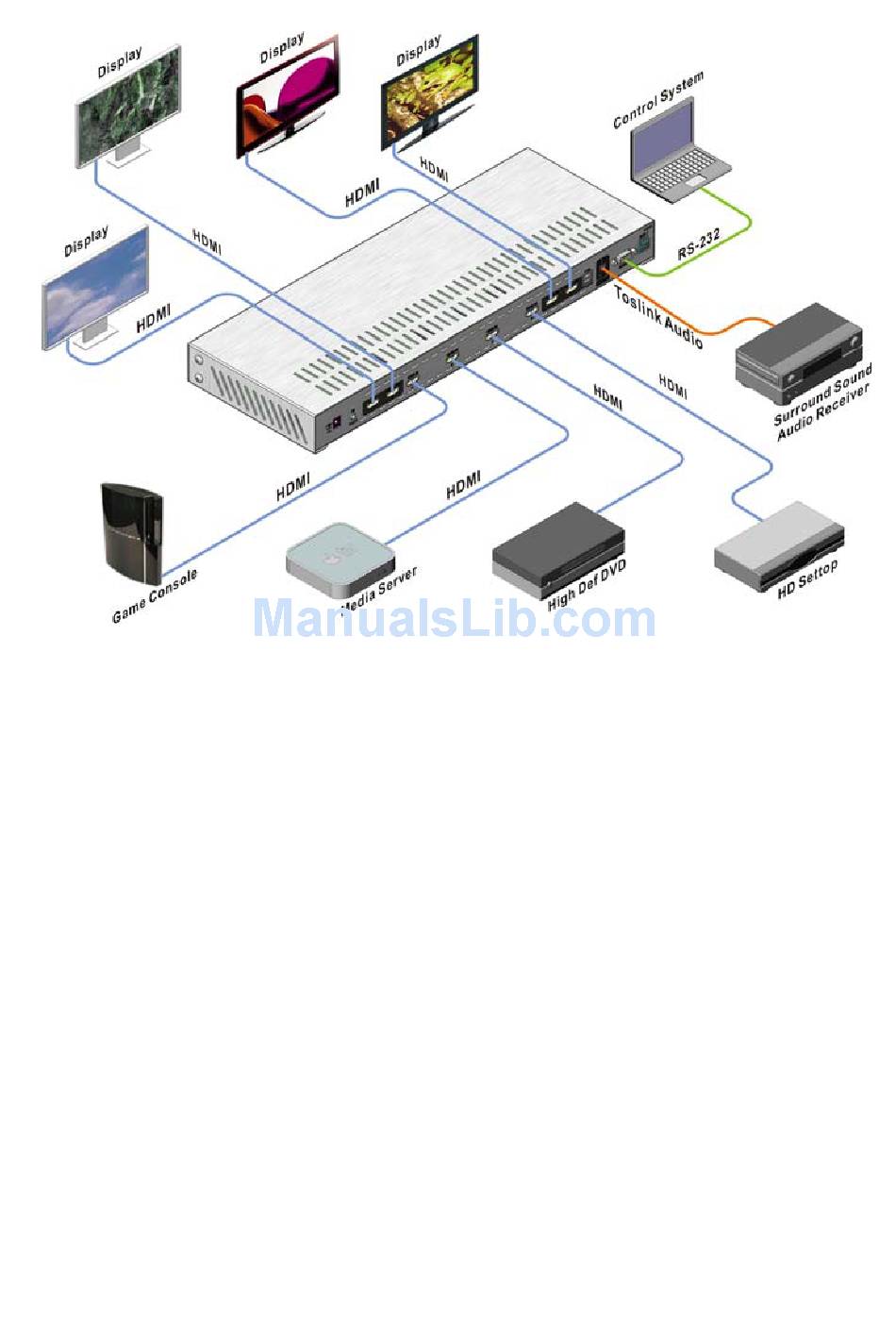

Application Diagram
Installation:
Install the 44UHDMX in a well ventilated location. Keep ventilation
slots free of obstructions.
1) Connect HD display, A/V receiver to OUTPUTS A-D
2) Connect video sources to INPUTS 1-4
3) Turn On HD display, A/V receiver, video sources.
4) Connect DC power adapter to power on Matrix
