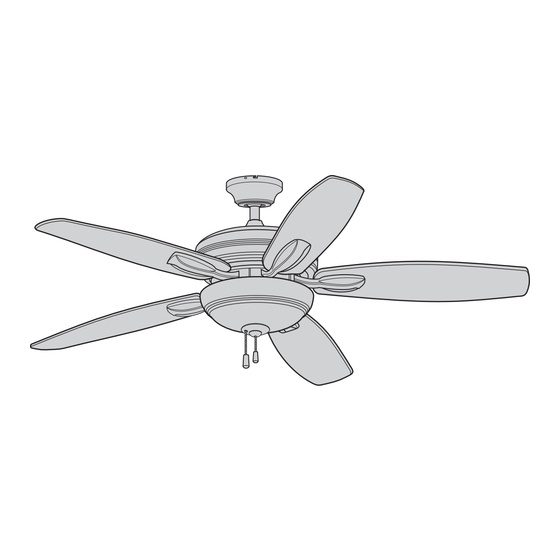

52" Ceiling Fan Owner's Manual
CF717BS00
Brushed Steel
Questions, problems, missing parts: Before returning to the store call
Part No. F40BP74830001
Revision: 150415
ASHLAND
Model Numbers
CF717SW00
Satin White
18.8
Net Weight:
Emerson Electric Customer Service
8 a.m. - 6 p.m., Eastern, Monday-Friday
1-800-654-3545
www.emersonfans.com
™
CF717ORB00
Oil Rubbed Bronze
Lbs.
• Español - página 25
• Français - page 49
Form No. BP7483-1
ETL Model No.: CF717
Advertisement
Table of Contents
Related Manuals for Emerson CF717BS00
Summary of Contents for Emerson CF717BS00
- Page 1 Satin White 18.8 Net Weight: Lbs. Questions, problems, missing parts: Before returning to the store call Emerson Electric Customer Service 8 a.m. - 6 p.m., Eastern, Monday-Friday • Español - página 25 1-800-654-3545 • Français - page 49 Part No. F40BP74830001 Form No.
-
Page 2: Table Of Contents
Emerson come to a complete stop. Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson could Additional Safety Instructions for Installation result in personal injury or property damage. -
Page 3: Unpacking Instructions
Emerson Electric Fan Blades Co. Substitution of parts or accessories not designated Hanger Bracket, Dual Mount for use with this product by Emerson Electric Co. could Hanger Ball/4.5” Downrod Assembly result in personal injury or property damage. Light Kit Assembly... -
Page 4: Electrical Requirements
Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the Please call Emerson technical support main fuse box before wiring. All wiring must be in 1-800-654-3545 if you have any questions about... -
Page 5: Installing Hanger Ball/Downrod Assembly
IMPORTANT Your ceiling fan is designed to be installed either in the standard manner, or in the close-to-the-ceiling manner. Using the standard method, the hanger ball/downrod assembly will suspend the fan several inches below the ceiling cover. Using the close-to-the-ceiling method, the ceiling cover installs directly on the fan motor housing, thus mounting the fan 3-1/2 inches closer to the ceiling than the standard method. - Page 6 3. Installing Hanger Ball/Downrod Assembly (For Standard Mounting) (continued) DOWNROD Securely tighten the two setscrews into the motor coupler until they rest against the downrod. MOTOR SETSCREWS (2) COUPLER Pull up on the downrod to make sure the setscrews are NOTE: The setscrew must be properly installed as firmly installed against the downrod (Figure 3).
- Page 7 3. Installing Hanger Ball/Downrod Assembly (For Standard Mounting) (continued) HANGER BALL Reinstall the hanger ball (Figure 6) on the downrod as follows. Route the 80-inch motor leads through the hanger DOWNROD ball. Position the pin through the two holes in the downrod and align the ball so the pin is captured in the groove in SETSCREW the top of the hanger ball.
-
Page 8: Installing Ceiling Cover On Fan Motor Housing
4. Installing Ceiling Cover on Fan Motor Housing (For Close-to-the-Ceiling Mounting) Remove and retain six screws and lockwashers from the top of the motor housing (Figure 8A). Remove the paper backing off the rubber gasket (supplied in parts bag) to expose the adhesive. Position the rubber gasket on the motor housing (small holes in gasket centered over the screw holes in the housing and the notched area of the rubber gasket over... -
Page 9: Installation Of Hanger Bracket
5. Installation of Hanger Bracket WARNING The fan must be hung with at least 7' of clearance from floor to blades (Figure 11). WARNING OUTLET BOX Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the LOOSEN TWO main fuse box before wiring. - Page 10 5. Installation of Hanger Bracket (continued) Slide the hanger bracket onto the outlet box screws. Center the bracket over the outlet box and then securely tighten the screws (Figure 13). WARNING Hanger bracket must seat firmly against outlet box. If the outlet box is recessed, use leveling washers between the hanger bracket and the outlet box until the bracket is flush with the ceiling.
-
Page 11: Hanging The Ceiling Fan (Standard)
6. Hanging the Ceiling Fan (Standard Method Using Hanger Ball/Downrod) Carefully lift the fan assembly and seat the hanger ball in the hanger bracket (Figure 14). The tab on the hanger bracket must seat in the groove in the hanger ball. WARNING Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard. -
Page 12: How To Wire Your Ceiling Fan
Co. Substitution of parts or accessories not designated wire or wire with green colored insulation) for use with this product by Emerson Electric Co. could (Figure 16). Securely connect wires using wire connectors result in personal injury or property damage. -
Page 13: Installation Of Ceiling Cover
9. Installation of Ceiling Cover Remove the left screw and lockwasher from each side of the hanger bracket (Figure 18) and loosen the other two NOTE: When installing the ceiling fan using the close- screws. to-the-ceiling method, carefully lift the fan assembly from the hook on the hanger bracket and proceed as follows. -
Page 14: Installation Of Ceiling Fan Blades
10. Installation of Ceiling Fan Blades 10.1 Remove and discard the five motor hub spacers to free the motor for installation of ceiling fan blades (Figure 20). MOTOR HUB MOTOR HUB SPACERS (5) Figure 20 10.2 #8-32 x 8mm Mount the blade flanges to the fan blades using three WASHER HEAD SCREW #8-32 x 8mm washer head screws (supplied) per blade... -
Page 15: Installation Of Light Kit Assembly
11. Installation of Light Kit Assembly 11.1 Engage the connector of the light kit assembly with the motor connector (Figure 23). The two connectors are keyed and color-coded and must be mated correctly (color-to-color) before they can be engaged. Make sure the connector latch closes properly. MOTOR CONNECTOR LIGHT KIT... - Page 16 11. Installation of Light Kit Assembly (continued) 11.4 Position the fan speed control switch pull chain through the NOTE: Be sure that the fan switch chain does not side hole of the light kit fitter plate (Figure 26). make contact with the light bulbs. If necessary reposition the light fitter to avoid the fan switch chain from touching the light bulbs.
-
Page 17: Using Your Ceiling Fan
Cut the speed control switch pull chain and the light switch pull chain to the desired lengths. Attach each pendant/coupling assembly (supplied) to the ends of each pull chain using the attached coupling (Figure 29). Please call Emerson technical support 1-800-654-3545 have questions LIGHT CONTROL... -
Page 18: Maintenance
Emerson Electric · Downrod Extension Kits (see store or catalog). Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could WARNING result in personal injury or property damage. -
Page 19: Trouble Shooting
15. Trouble Shooting WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers. -
Page 20: Repair Parts
16. Repair Parts PARTS BAG ETL Model No.: CF717... -
Page 21: How To Order Repair Parts
16. Repair Parts Listing Model Numbers Description CF717BS00 CF717ORB00 CF717SW00 Hanger Ball Assembly, Consisting of: 762231-4 762231-8 762231-9 Hanger Bracket, Dual Mount — — — Hanger Ball — — — Downrod (4.5”) — — — Ceiling Cover (1) 764482-BS 764482-ORB... - Page 22 Notes ETL Model No.: CF717...
-
Page 23: Ceiling Fan Limited Warranty
What We Will Do To Correct Problems: If during the one (1) year warranty period the motor or any component or accessory of your Emerson Ceiling Fan is defective in materials or workmanship, or if during the expected lifetime of the Emerson Ceiling Fan (when used in accordance with the User Manual or other instructions) the motor is defective in materials or workmanship, you must contact Emerson during the applicable warranty period. - Page 24 Air Comfort Products DIVISION OF EmErSON ElEctrIc cO. 8100 W. Florissant • St. louis, mO 63136 Questions, problems, missing parts: Before returning to the store call Emerson Electric Customer Service 8 a.m. - 6 p.m., Eastern, Monday-Friday 1-800-654-3545 www.emersonfans.com Retain this manual for future use.
