READ AND SAVE THESE INSTRUCTIONS
42" Model No.
CF710AB01
CF710AW01
CF710BS01
CF710PB01
CF710WW01
15.0
Net Weight:
BUILDER PLUS Series
Ceiling Fan Owner's Manual
Part No. F40BP72580004
CF711AB01
CF711AW01
CF711BS01
CF711CK01
Lbs.
50" Model No.
CF711PB01
CF711WB01
CF711WW01
19.8
Net Weight:
Lbs.
U.L. Model No.: 42-ANT/52-ANT

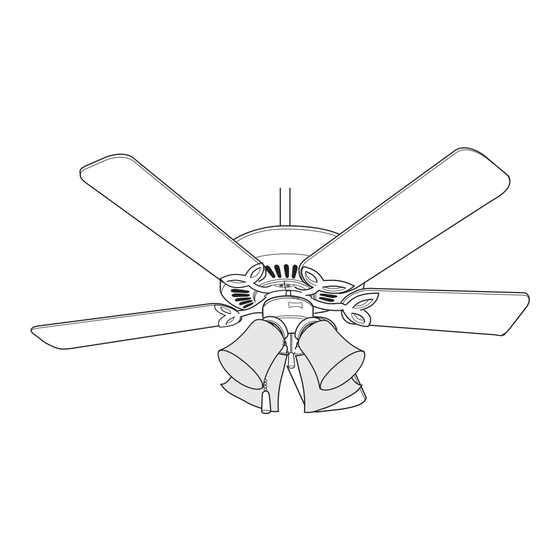

CF711 shown
Form No. BP7258-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF710AB01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson CF710AB01

Summary of Contents for Emerson CF710AB01

  • Page 1 READ AND SAVE THESE INSTRUCTIONS 42” Model No. CF710AB01 CF710AW01 CF710BS01 CF710PB01 CF710WW01 15.0 Net Weight: Lbs. BUILDER PLUS Series Ceiling Fan Owner's Manual Part No. F40BP72580004 50” Model No. CF711AB01 CF711AW01 CF711BS01 CF711CK01 Net Weight: CF711 shown CF711PB01 CF711WB01 CF711WW01 19.8...

  • Page 2: Safety Instructions

    NOTE: The CF711 fan is suitable for use with solid-state speed controls. WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically approved for this fan.

  • Page 3: Unpacking Instructions

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage. 1. Check to see that you have received the following...

  • Page 4: Installing The Hanger Ball/Downrod Assembly

    (Figure 1). NOTE: The setscrews must be properly installed as described above, or fan wobble could result. 5.The fan comes with blue, black and white leads that are 42” long. Measure up approximately 6 to 9-inches above top of hanger ball/downrod assembly.

  • Page 5: Installing The Hanger Bracket

    Installing The Hanger Bracket WARNING The fan must be hung with at least 7' of clearance from floor to blades (Figure 4). Figure 4 FLOOR WARNING The outlet box and joist must be securely mounted and capable of supporting at least 50 lbs. Use only a U.L.

  • Page 6: Electrical Requirements

    FAN WIRES OMITTED FOR CLARITY. If your fan is to replace an existing ceiling light fixture, turn electricity off at the main fuse box at this time and remove the existing light fixture. Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

  • Page 7: Installing The Fan Blades

    2. Securely connect the fan motor white wire to the supply white (neutral) wire using wire connector supplied (Figure 9). Securely connect the fan motor black wire and blue wire to the supply black (hot) wire using wire connector supplied (Figure 9).

  • Page 8: Removal Of The Light Fixture

    Figure 13 Removal Of The NOTE: In some instances it may be desirable to install the ceiling fan without the light fixture. If this is the case, proceed as follows. (You may want to keep the light fixture for possible future use.)

  • Page 9: Using Your Ceiling Fan

    3. Check to be sure screws which attach the fan blade flanges to the motor are tight. 4. Check to be sure the fan blade flanges seat firmly and uniformly to the surface of the motor. 5. Tighten the hanger bracket screws to the outlet box, and/or secure outlet box.

  • Page 10: Maintenance

    What Will Emerson Electric Co. Do To Correct Problems: Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson Electric Co. will refund the actual purchase price of your fan.

  • Page 11: Repair Parts

    Repair Parts Before discarding packaging material, be certain all parts have been removed. HOW TO ORDER REPAIR PARTS WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION: • PART NUMBER • PART DESCRIPTION • NAME OF ITEM • MODEL NUMBER For repair parts, phone 1-800-654-3545.
  • Page 12 — — — — — — — — — — BP7258-4 BP7258-4 Air Comfort Products DIVISION OF EMERSON ELECTRIC CO. 8100 W. Florissant • St. Louis, MO 63136 CF711BS01 CF711WB01 CF711CK01 762231-4 762231-5 762231-6 — — — — — —...
