User Manual
Combo Cat6
Combo Cat6 2-console KVM
Combo Cat6 KVM
UM-CV-751-UKVM-KIT-Q113V1
dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
KVM
-Cat5-IP08
-Cat5-IP16
-Cat5-IP32
back
-Cat5-08-2
-Cat5-16-2
-Cat5-32-2
back
-Cat5-08
-Cat5-16
-Cat5-32
back
751
www.rackmountsales.com
Advertisement
Table of Contents
Related Manuals for Crystal Image Technologies Combo Cat6 IP KVM-Cat5-IP08
Summary of Contents for Crystal Image Technologies Combo Cat6 IP KVM-Cat5-IP08

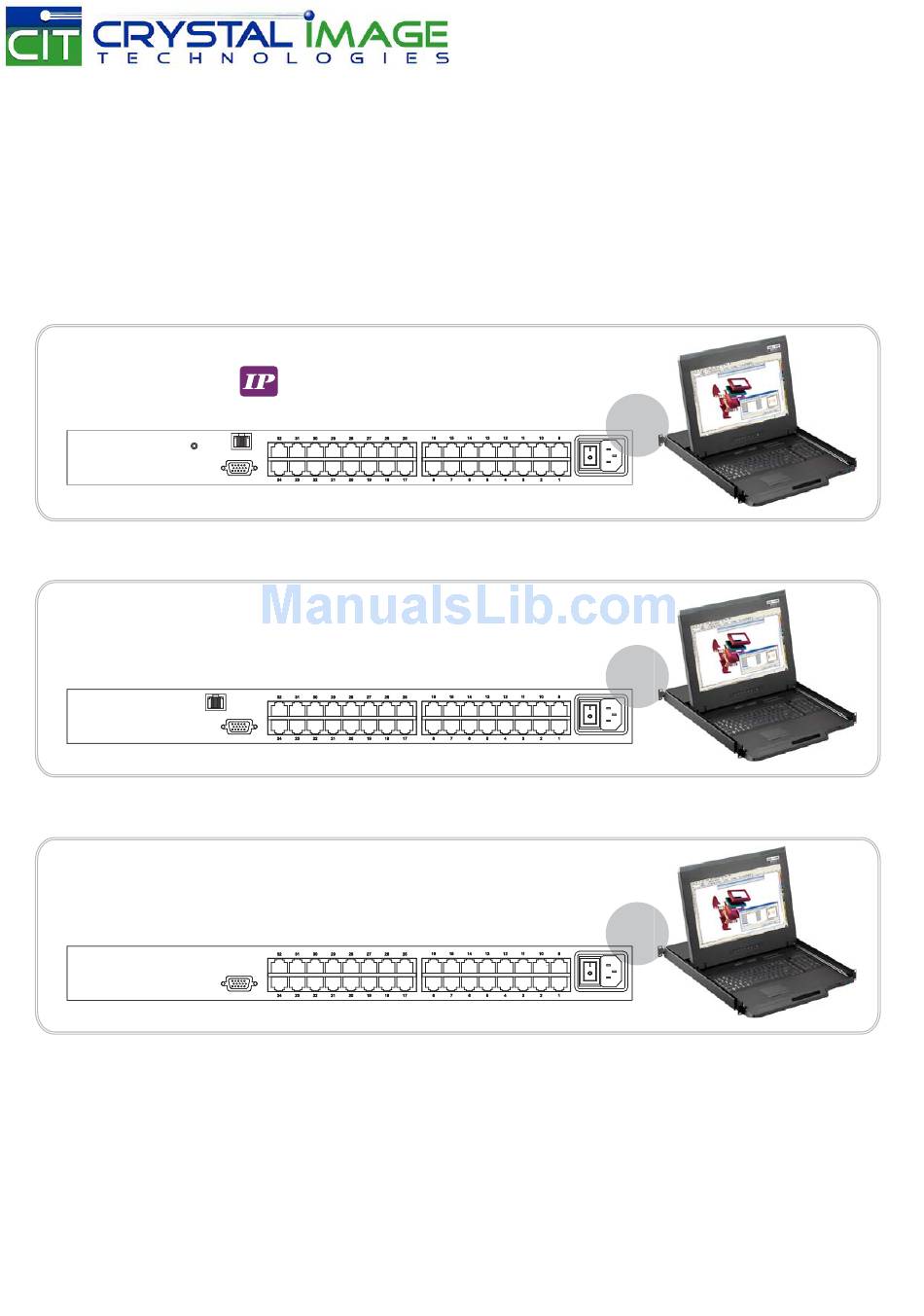

- Page 1 dedicated KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer -Cat5-IP08 -Cat5-IP16 Combo Cat6 -Cat5-IP32 back -Cat5-08-2 -Cat5-16-2 Combo Cat6 2-console KVM -Cat5-32-2 back -Cat5-08 -Cat5-16 Combo Cat6 KVM -Cat5-32 back UM-CV-751-UKVM-KIT-Q113V1 www.rackmountsales.com...
-
Page 2: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part 1 > Combo Cat6 KVM Kit Cat5-IP16 -Cat5-IP32 -Cat5-IP08 Package contents KVM port & Cat6 dongle connection IP console connection IP console setting KVM Cascade Specifi cations < Part 2 > Combo Cat6 2-console KVM Kit -Cat5-32-2 -Cat5-08-2 -Cat5-16-2 Package contents... -
Page 4: Part 1 > Combo Cat6 Kvm Kit
< Part 1 > Combo Cat6 < 1.1 > Package Contents Combo Cat6 IP KVM -UIP802 -UIP1602 -UIP3202 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -Cat5-IP08 Cascade Power... -
Page 5: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Combo Cat6 IP KVM USB Servers DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port Drawer KVM Rear Kit PS/2 Servers USB Servers PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable max. -
Page 6: Ip Console Connection
< 1.3 > IP console connection Combo Cat6 IP KVM Network device hub or router CAT 5 / 6 cable max. 100m Drawer KVM Rear Kit... -
Page 7: Ip Console Setting
< 1.4 > IP console setting Combo Cat6 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download from the link: www.rackmountsales.com/v/pdf/citumipkvm.pdf 2. Refer to page 3 to confi gure the IP KVM by device setup as below. 3. -
Page 8: Kvm Cascade
< 1.5 > KVM Cascade Combo Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5-08 / Cat5-16 / Cat5-32 When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 9: Specifi Cations
< 1.6 > Specifi cations Combo Cat6 IP KVM -Cat5-IP08 -Cat5-IP16 -Cat5-IP32 ▀ KVM Port Number of ports: 8, 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ▀... -
Page 10: Part 2 > Combo Cat6 2-Console Kvm Kit
< Part 2 > Combo Cat6 2-console KVM < 2.1 > Package Contents Combo Cat6 2-console KVM -Cat5-08-2 / -Cat5-16-2 / -Cat5-32-2 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •... -
Page 11: Kvm Port & Cat6 Dongle Connection
< 2.2 > KVM port & Cat6 dongle connection Combo Cat6 2-console KVM USB Servers DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port Drawer KVM Rear Kit PS/2 Servers USB Servers PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable max. -
Page 12: Remote Console Connection
< 2.3 > Remote console connection Combo Cat6 2-console KVM Remote USB console Receiver CAT 5 / 6 cable max. 150m Remote Cat6 Console Drawer KVM Rear Kit UM-CV-751-UKVM-KIT-Q113V1 www.rackmountsales.com... - Page 13 How to use a receiver to connect a remote console Combo Cat6 2-console KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.20 Remote Console Drawer KVM Rear Kit...
-
Page 14: Kvm Cascade
< 2.4 > KVM Cascade Combo Cat6 2-console KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5-08 / Cat5-16 / Cat5-32 When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 15: Specifi Cations
< 2.5 > Specifi cations Combo Cat6 2-console KVM -Cat5-08-2 -Cat5-16-2 -Cat5-32-2 KVM Port ▀ Number of ports: 8, 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console Nil for LCD console drawer version ▀... -
Page 16: Part 3 > Combo Cat6 Kvm Kit
< Part 3 > Combo Cat6 KVM < 3.1 > Package Contents Combo Cat6 KVM -Cat5-08 -Cat5-16 -Cat5-32 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -Cat5-08 Cascade Power... -
Page 17: Kvm Port & Cat6 Dongle Connection
< 3.2 > KVM port & Cat6 dongle connection Combo Cat6 KVM USB Servers DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port Drawer KVM Rear Kit Drawer KVM Rear Kit PS/2 Servers USB Servers PS/2 VGA-USB dongle VGA-PS/2 dongle... -
Page 18: Kvm Cascade
< 3.3 > KVM Cascade Combo Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5-08 / Cat5-16 / Cat5-32 When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 19: Specifi Cations
< 3.4 > Specifi cations Combo Cat6 KVM -Cat5-08 -Cat5-16 -Cat5-32 KVM Port ▀ Number of ports: 8, 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console Nil for LCD console drawer version ▀... -
Page 20: Part 4. Usage
Part 4. Usage Combo Cat6 KVM Usage 4.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 21: Password
< 4.2 > Password Combo Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 22: Kvm Osd
< 4.3 > KVM OSD Combo Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter... -
Page 23: Kvm Hotkey & Remote Console Hotkey
< 4.4 > KVM Hotkey & Remote Console Hotkey Combo Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port... -
Page 24: Dc Power 12V, 24V, 48V Input
< 4.5 > DC Power 12V, 24V, 48V Input Combo Cat6 KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
