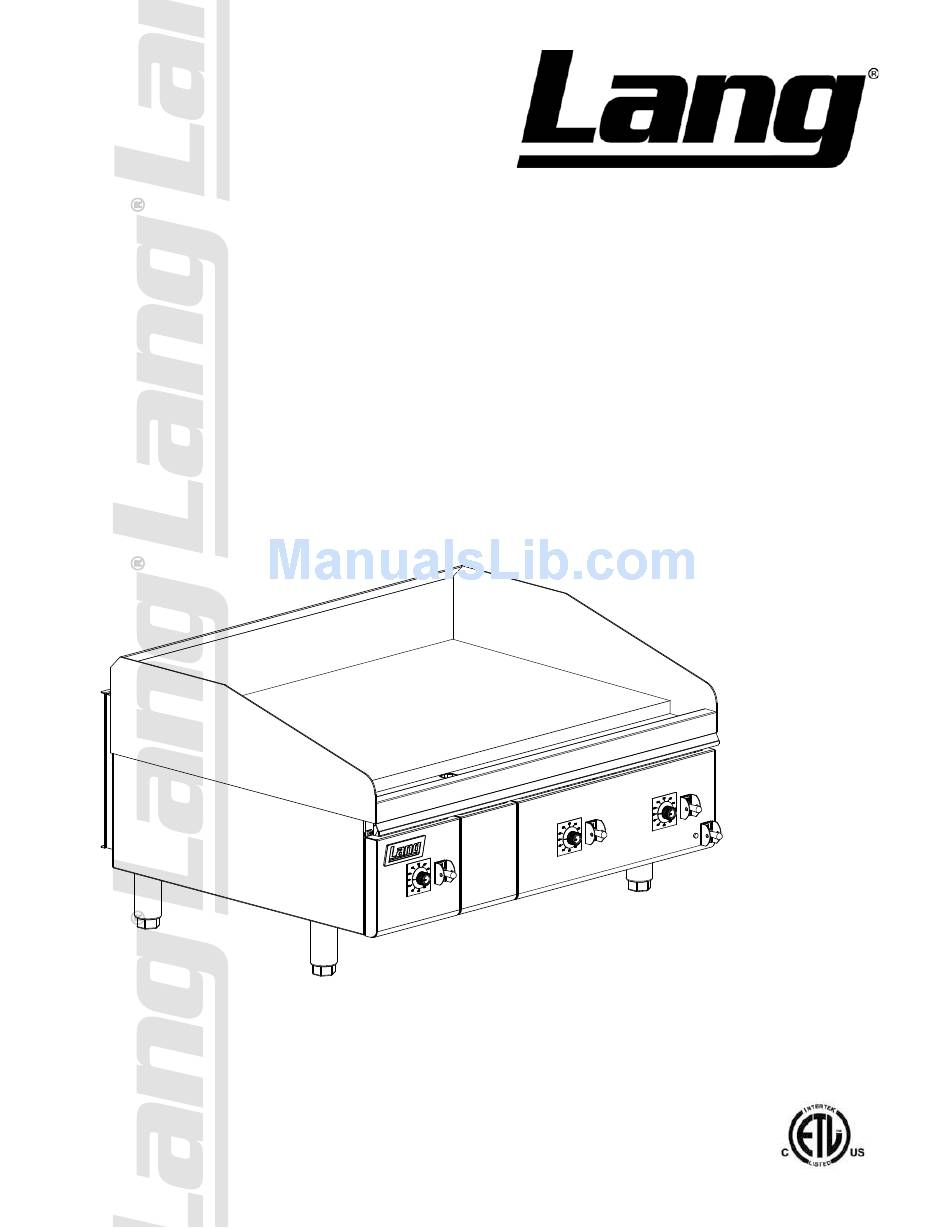

- Page 1 ENVIROZONE SELECTRONIC GAS GRIDDLE Commercial 224ZS, 236ZS, 248ZS, 260ZS, 272ZS 224ZSD, 236ZSD, 248ZSD, 260ZSD, 272ZSD Installation and Operation Instructions 2M-W2014 Rev. A 5/20/14 IL2810 236ZS...
- Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at (314) 678-6315 TABLE OF CONTENTS Specifications ......2 - 3 Equipment Description . - Page 4 (Not including legs) combustible surface Class Actual Shipping 16.4” x 24.1” x 30.4” 243 lbs. 280 lbs. 224ZS 418mm x 613mm x 773mm 110 kg 127 kg 16.4” x 36.1” x 30.4” 368 lbs. 420 lbs. 236ZS 418mm x 917mm x 773mm...
-
Page 5: Specifications
EQUIPMENT SPECIFICATIONS continued SPECIFICATIONS Electrical Requirments NAT. Burner Model Manifold Gas Connection (3/4” NPT) Total Amps / Input Voltage Phase Line 224ZS-NAT 5 WC 54,000 BTU/hr 224ZS-LP 10 WC 236ZS-NAT 5 WC 81,000 BTU/hr 236ZS-LP 10 WC 248ZS-NAT 5 WC 27000... -
Page 6: Equipment Description
The griddle weighs 260, 390, 520, 650, 780 lbs. depending on actual model number. Griddle Gas and Voltage Specifications The Lang Model can be connected to any 120 Volt source. The gas and electrical specifications are listed in the table on the previous page. -
Page 7: Unpacking
UNPACKING Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 8: Leg Installation
Initial adjustments are the responsibility of the installer and are not chargeable to Lang Manufacturing. After the griddle is in its final position, adjust the legs to create 1/8 inch slant from back to front. - Page 9 INSTALLATION continued DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED. FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION AND DEATH. INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT.
-
Page 10: Initial Start-Up
INITIAL START UP Initial Lighting Procedure Clean the preservative coating from the griddle plate and splash guard. Add a mild detergent to hot water and wash the griddle plate and splash guard. Rinse with a damp sponge and dry with a clean rag. -
Page 11: Operation
OPERATION Setting the Griddle Temperature The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. -
Page 12: Loading The Griddle
OPERATION Loading the Griddle An understanding of how the griddle sections are controlled will be a valuable aid in loading your griddle. Each 12 inch section of your griddle is independently controlled. The temperature control sensor is mounted under the griddle plate in the center of each cooking section. If the product is loaded directly over the temperature sensor, that section will turn on and the burner will heat the entire cooking section. -
Page 13: Sequence Of Operation Power On
5 years against manufacturing defects to the original owner from the date of installation. This limited warranty is void if it is determined by Lang Manufacturing or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1. -
Page 14: Daily Cleaning
MAINTENANCE & CLEANING continued Daily Cleaning (Non chrome only) • Empty the grease drawer daily or whenever it is 3/4 full. It is easily removed for washing. • Keep the griddle surface clean. After each cooking load, scrape the griddle surface to remove any carbonized grease. -
Page 15: Troubleshooting Symptoms / Possible Causes
TROUBLESHOOTING Symptoms The chart below is to assist in the troubleshooting of the griddle. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible cause, refer to the TEST section (on the following page) and locate the Possible Cause then refer to test to identify test procedures. -
Page 16: Possible Causes / Test
• Adjust to correct pressure Plugged regulator vent, or orifice • Clean as necessary NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your LANG authorized service agent directory or call the factory at (314) 678-6315, or WWW.LANGWORLD.COM For the service agent nearest you. -
Page 18: Exploded View & Parts List
SEE DETAIL Model: EnviroZone Gas Selectronic Griddle SK2771, Rev. - 4/14/14... - Page 19 47 44 48 42 DETAIL Model: 236ZS EnviroZone Selectronic Gas SK2771, Rev. - 4/01/14...
- Page 20 PARTS LIST May 20, 2014, Rev. A Model: 224ZS-NAT & LP EnviroZone Selectronic Gas Griddle Fig No. Part No Description Application K9-141-201-123 GRIDDLE PLATE ASSY, 2’ ZS 224ZS K9-141-201-723 GRIDDLE PLATE ASSY 2’ ZSD 224ZSD 2E-41100-42 SENSOR EZONE SELECTRONIC K9-141-486...
- Page 21 Model: 224ZS-NAT & LP EnviroZone Selectronic Gas Griddle Fig No. Part No Description Application 2A-45408 ORIFICE-HOOD #42 GRID NAT 224ZS-NAT 2A-80400-12 ORIFICE HOOD .0595 #53 224ZS-LP 2A-80404-29 ORIFICE - #51 BLACK 224ZSD-LP Y9-80400-18 ORIFICE HOOD .1065 #36 224ZSD-NAT 2A-W1185 ORIFICE FITTING - 90 DEG 2C-20102-08 SCRW PHD ST 8-32X.375...
- Page 22 2I-05-07-0013 BOOT SWITCH Y9-31601-09-1 PILOT LT 120V W/TIN CLIP 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2M-60301-43 DIE CAST PLT LANG SATIN K9-141-241-W9 FRONT PANEL-LEFT END 2FT 2E-30600-W14 RELAY 277VAC SPST 30A 2K-70801-07 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450oFW/41100-13...
- Page 23 Model: 236ZS-NAT & LP EnviroZone Selectronic Gas Griddle Fig No. Part No Description Application 2A-45408 ORIFICE-HOOD #42 GRID NAT 236ZS-NAT 2A-80400-12 ORIFICE HOOD .0595 #53 236ZS-LP 2A-80404-29 ORIFICE - #51 BLACK 236ZSD-LP Y9-80400-18 ORIFICE HOOD .1065 #36 236ZSD-NAT 2A-W1185 ORIFICE FITTING - 90 DEG 2C-20102-08 SCRW PHD ST 8-32X.375 K9-141-156-W5...
- Page 24 2I-05-07-0013 BOOT SWITCH Y9-31601-09-1 PILOT LT 120V W/TIN CLIP 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2M-60301-43 DIE CAST PLT LANG SATIN K9-141-241-W9 FRONT PANEL-LEFT END 2FT 2E-30600-W14 RELAY 277VAC SPST 30A 2K-70801-07 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450oFW/41100-13...
- Page 25 Model: 248ZS-NAT & LP EnviroZone Selectronic Gas Griddle Fig No. Part No Description Application 2A-45408 ORIFICE-HOOD #42 GRID NAT 248ZS-NAT 2A-80400-12 ORIFICE-HOOD .0595 #53 248ZS-LP 2A-80404-29 ORIFICE - #51 BLACK 248ZSD-LP Y9-80400-18 ORIFICE HOOD .1065 #36 248ZSD-NAT 2A-W1185 ORIFICE FITTING - 90 DEG 2C-20102-08 SCRW PHD ST 8-32X.375 K9-141-156-W5...
- Page 26 2I-05-07-0013 BOOT SWITCH Y9-31601-09-1 PILOT LT 120V W/TIN CLIP 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2M-60301-43 DIE CAST PLT LANG SATIN K9-141-241-W9 FRONT PANEL-LEFT END 2FT 2E-30600-W14 RELAY 277VAC SPST 30A 2K-70801-07 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450oFW/41100-13...
- Page 27 Model: 260ZS-NAT & LP EnviroZone Selectronic Gas Griddle Fig No. Part No Description Application 2A-45408 ORIFICE-HOOD #42 GRID NAT 260ZS-NAT 2A-80400-12 ORIFICE HOOD .0595 #53 260ZS-LP 2A-80404-29 ORIFICE - #51 BLACK 260ZSD-LP Y9-80400-18 ORIFICE HOOD .1065 #36 260ZSD-NAT 2A-W1185 ORIFICE FITTING - 90 DEG 2C-20102-08 SCRW PHD ST 8-32X.375 K9-141-156-W5...
- Page 28 BOOT SWITCH Y9-31601-09-1 PILOT LT 120V W/TIN CLIP 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2M-60301-43 DIE CAST PLT LANG SATIN K9-141-242-W8 FRONT PANEL WELD, LEFT ZS 2E-30600-W14 RELAY 277VAC SPST 30A 2K-70801-07 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450oFW/41100-13...
- Page 29 Model: 272ZS-NAT & LP EnviroZone Selectronic Gas Griddle Fig No. Part No Description Application 2A-45408 ORIFICE-HOOD #42 GRID NAT 272ZS-NAT 2A-80400-12 ORIFICE HOOD .0595 #53 272ZS-LP 2A-80404-29 ORIFICE - #51 BLACK 272ZSD-LP Y9-80400-18 ORIFICE HOOD .1065 #36 272ZSD-NAT 2A-W1185 ORIFICE FITTING - 90 DEG 2C-20102-08 SCRW PHD ST 8-32X.375 K9-141-156-W5...
- Page 32 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
