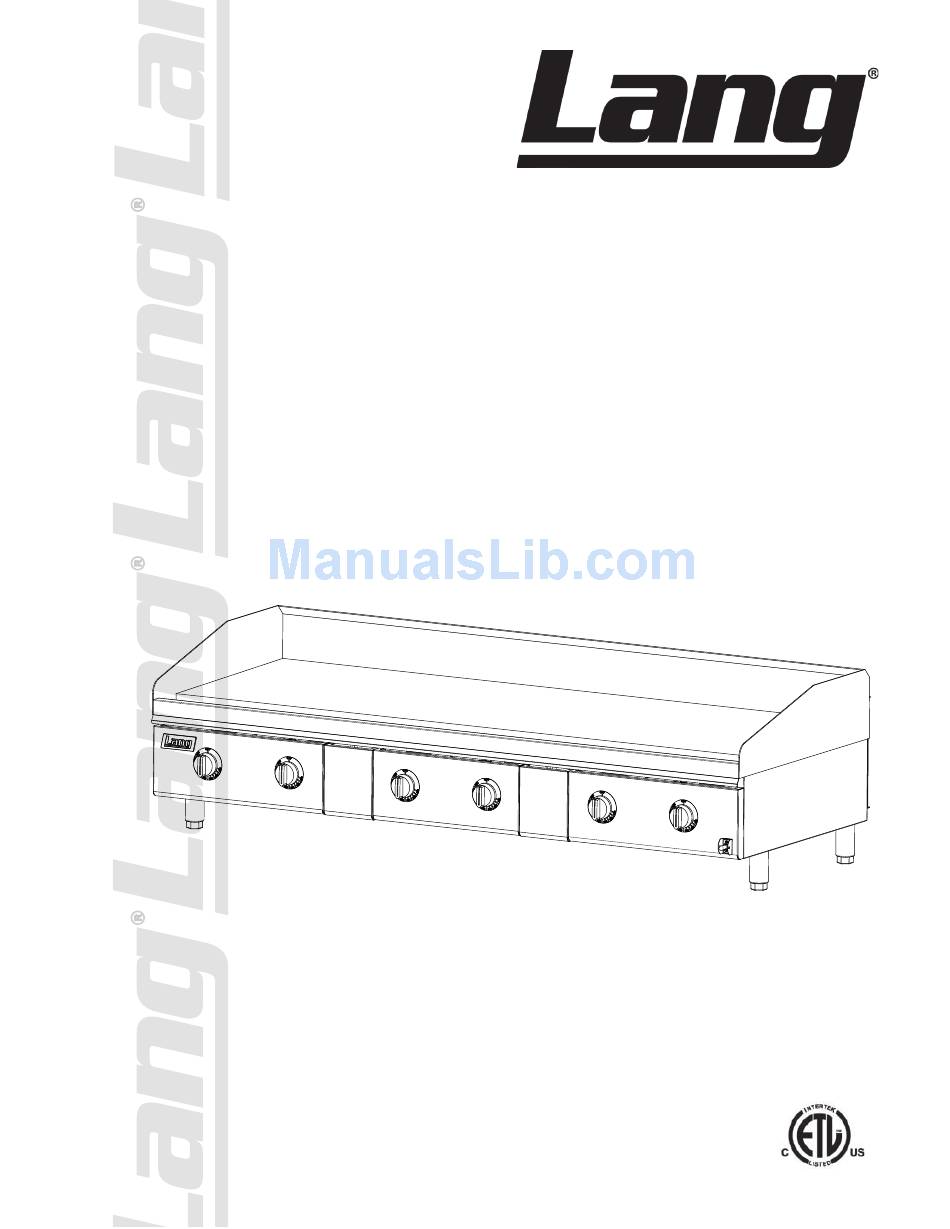

- Page 1 ENVIROZONE-TSTAT GAS GRIDDLE Commercial 224ZT, 236ZT, 248ZT, 260ZT, 272ZT Installation and Operation Instructions 2M-W1785 Rev. C 4/23/15 272ZT IL2412...
- Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at (314) 678-6315 TABLE OF CONTENTS Specifications Equipment Description Unpacking Installation Leg Installation Ventilation & Clearence Electrical & Gas Connection... -
Page 4: Specifications
ELECTRICAL CORD/PLUG MODEL CONNECTION NATURAL PROPANE & PRESSURE Unit Griddle Surface NUMBER CONNECTION REGULATOR Width Depths 5” WC 10” WC VOLTAGE AMPS 224ZT 24” 54,000 54,000 24” 224ZTD 30” 70,000 70,000 236ZT 24” 81,000 81,000 36” 236ZTD 30” 105,000 105,000 248ZT 24”... -
Page 5: Equipment Description
The griddle weighs 255, 336, 435, 530, 610 lbs. depending on actual model number. Griddle Gas and Voltage Specifications The Lang Model can be connected to any 120 Volt source. The gas and electrical specifications are listed in the table on the previous page. -
Page 6: Unpacking
15 days of delivery. All packing material should be kept for inspection. DO NOT return damaged merchandise to Lang Manufacturing. File your claim with the carrier. Location Prior to un-crating, move the griddle as near to its intended location as practical. The crating will help protect the unit from the physical damage normally associated with moving it through hallways and doorways. -
Page 7: Ventilation & Clearence
VENTILATION & CLEARENCE CLEARANCE For use on non-combustible countertops only. Combustible and non-combustible material must be at least 48” (120cm) from the top of the appliance. Combustible material must be 5” (150mm) from the sides and back, while clearance to non-combustible material on the sides and back is 0”. -
Page 8: Electrical & Gas Connection
When replacing the plug in the manifold, a pipe joint compound or sealant should be used that is resistant to the action of liquid petroleum gas. Initial adjustments are the responsibility of the installer and are not chargeable to Lang Manufacturing International. -
Page 9: Initial Start-Up
INITIAL START UP Initial Lighting Procedure Clean the preservative coating from the griddle plate and splash guard. Add a mild detergent to hot water and wash the griddle plate and splash guard. Rinse with a damp sponge and dry with a clean rag. -
Page 10: Operation
OPERATION Setting the Griddle Temperature The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. -
Page 11: Loading The Griddle
OPERATION Loading the Griddle An understanding of how the griddle sections are controlled will be a valuable aid in loading your griddle. Each 12 inch section of your griddle is independently controlled. The temperature control sensor is mounted under the griddle plate in the center of each cooking section. If the product is loaded directly over the temperature sensor, that section will turn on and the burner will heat the entire cooking section. -
Page 12: Daily Cleaning
MAINTENANCE & CLEANING Daily Cleaning (Non chrome only) • Empty the grease drawer daily or whenever it is 3/4 full. Clean using mild soap and warm water. • Keep the griddle surface clean. After each cooking load, scrape the griddle surface to remove any carbonized grease. -
Page 13: Calibration
5 years against manufacturing defects to the original owner from the date of installation. This limited warranty is void if it is determined by Lang Manufacturing or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1. - Page 14 Adust pilot flame by closing pilot valve. Pilot flame too large Turn screw on valve clockwise NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your LANG authorized service agent directory or call technical service at (314) 678-6315, or www.langworld.com For the service agent nearest you.
-
Page 15: Wiring Diagram
PART NO. STAR MANUFACTURING INTERNATIONAL INC. 2M-61122-W54 # 10 SUNNEN DRIVE FINISH ST. LOUIS, MO. 63143, USA TITLE WIRE DIAGRAM - 224ZT (NO TIMERS) DATE: 12/2/11 TOLERANCE: UNLESS NOTED: .xxx .015 REVISIONS THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L REV. - Page 16 MATERIAL MODEL NO. PART NO. STAR MANUFACTURING INTERNATIONAL INC. 2M-61122-W56 # 10 SUNNEN DRIVE FINISH ST. LOUIS, MO. 63143, USA TITLE WIRE DIAGRAM - 248ZT (NO TIMERS) DATE: 12/8/2011 THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L TOLERANCE: UNLESS NOTED: .xxx .015 REVISIONS REV.
- Page 17 MATERIAL MODEL NO. PART NO. STAR MANUFACTURING INTERNATIONAL INC. 2M-61122-W53 # 10 SUNNEN DRIVE FINISH ST. LOUIS, MO. 63143, USA TITLE WIRE DIAGRAM - 272ZT (NO TIMERS) DATE: 11/28/2011 TOLERANCE: UNLESS NOTED: .xxx .015 THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L REVISIONS REV.
-
Page 18: Exploded View & Parts List
See Detail timer units MODEL:ENVIROZONE THERMOSTAT GAS GRIDDLE SK2564, Rev. A 5/17/2014... - Page 19 PARTS LIST April 23, 2015, Rev. C Model: 224ZT, 236ZT, 248ZT, 260ZT, 272ZT GAS GRIDDLE Fig No Part Number Quantity Description Application 2C-20201-06 WSHR PLT 5/16 FLAT USS 224ZT 236ZT 2C-20301-06 NUT HEX 5/16-18 PLTD 248ZT 260ZT 272ZT 224ZT 236ZT...
-
Page 20: Parts List
PARTS LIST April 23, 2015, Rev. C Model: 224ZT, 236ZT, 248ZT, 260ZT, 272ZT GAS GRIDDLE K9-141-107-1 LEFT SIDE STD 2A-72500-20 LEG 10.25 WITH ADJ HEX 2C-31007-01 TERM DOUBLER FEMALE 2E-Z12020 SWITCH-TOGGLE 2P ST K9-141-231-2-W2 FRONT PANEL-RIGHT WELDMNT 224ZT K9-141-231-2-W3 FRONT PANEL-ASSY RIGHT w/TIMER... - Page 21 Manifold Removed for Clarity DETAIL SK2565, Rev. A 4/23/2015...
- Page 22 PARTS LIST April 23, 2015, Rev. C Model: 224ZT, 236ZT, 248ZT, 260ZT, 272ZT DETAIL A Fig No Part Number Quantity Description Application 224ZT, 236ZT BRASTBEELBOW 1/4NPT- 2K-70101-03 248ZT, 260ZT 3/8CC 272ZT 224ZT 2K-70101-06 BRASTEE BRNCH 1/4NPTM-3/8 236ZT, 248ZT 260ZT, 272ZT...
- Page 23 PARTS LIST April 23, 2015, Rev. C Model: 224ZT, 236ZT, 248ZT, 260ZT, 272ZT DETAIL A Fig No Part Number Quantity Description Application 224ZT 236ZT 2C-20102-12 SCRW PHD ST 10-32X3/8 248ZT 260ZT 272ZT 224ZT 236ZT 248ZT 2V-80502-W07 VALVE SOLENOID-1/8 NPT 260ZT...
- Page 24 260ZT 272ZT 224ZT 2K-Z6943 GAS LINE 1/4”D x 8”L 236ZT, 248ZT 260ZT, 272ZT STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
