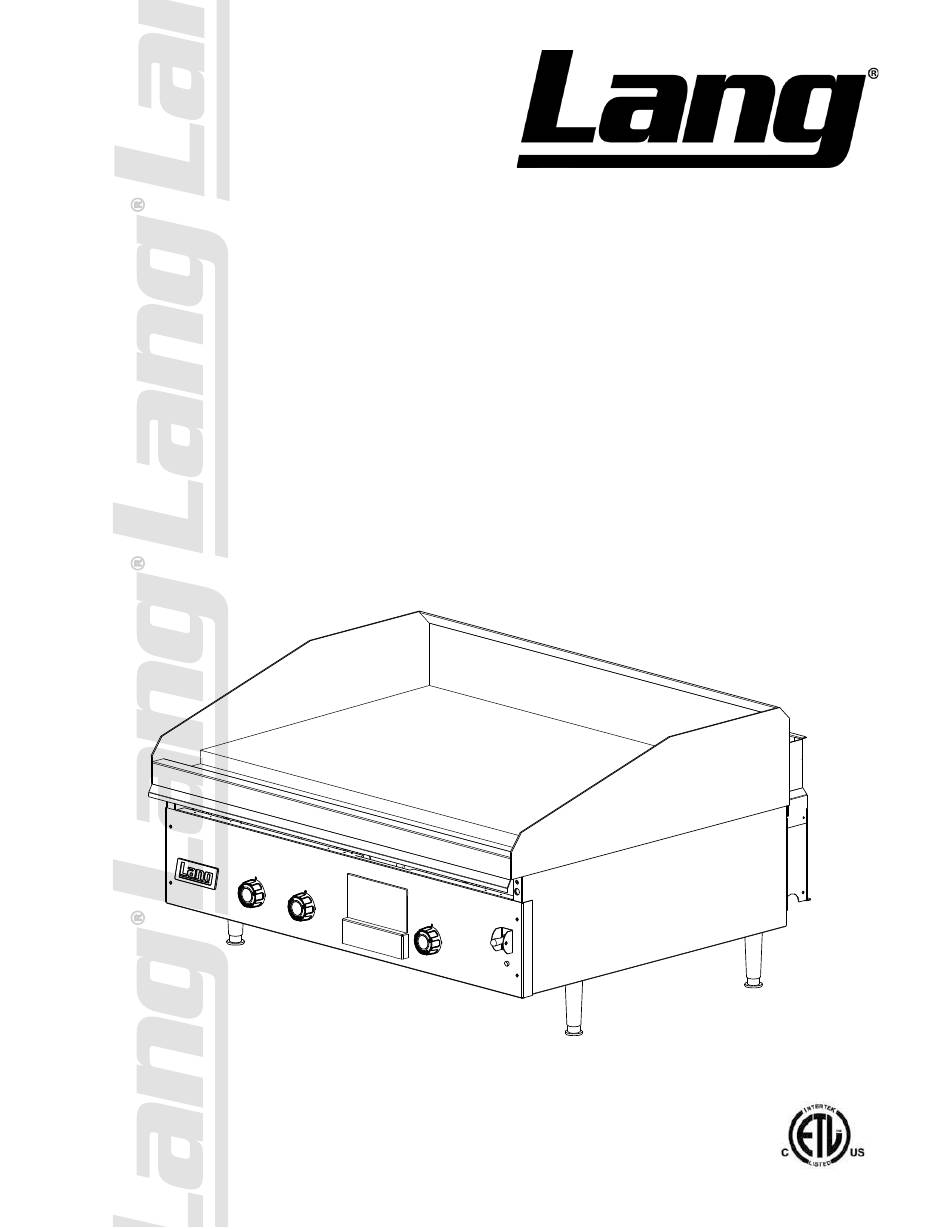

- Page 1 ACCU-TEMP Spark Ignition GAS GRIDDLE Commercial 224T, 236T, 248T, 260T, 272T Installation and Operation Instructions 2M-W358 Rev. I 3/03/15 IL2466 236T...
- Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at (314) 678-6315 TABLE OF CONTENTS Specifications 4 - 5 Equipment Description Unpacking Installation Ventilation & Clearence Electrical & Gas Connection... -
Page 4: Specifications
EQUIPMENT SPECIFICATIONS 30.4” 16.4” 20.4” 4” Front Side IL2467 Height x Width x Depth Clearance from Weight Freight Model (Not including legs) combustible surface Actual Shipping Class 16.4” x 24.1” x 30.4” 243 lbs. 280 lbs. 224T 418mm x 613mm x 773mm 110 kg 127 kg 16.4”... - Page 5 EQUIPMENT SPECIFICATIONS Gas Requirements Electrical Requirments Current Model NAT. Gas LP Gas Burner Input Manifold Press Gas Connection (3/4” NPT) Voltage Total kW. Amps/Line 224TCHE-NAT 5 WC 224TCHG-NAT 5 WC 224TC-LP 10 WC 224TC-NAT 5 WC 224THE-LP 10 WC 224THE-NAT 5 WC 224THG-LP 10 WC...
-
Page 6: Equipment Description
The griddle weighs 260, 390, 520, 650, 780 lbs. depending on actual model number. Griddle Gas and Voltage Specifications The Lang Model can be connected to any 120 Volt source. The gas and electrical specifications are listed in the table on the previous page. -
Page 7: Unpacking
UNPACKING Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 8: Electrical & Gas Connection
INSTALLATION Electrical Connection The griddle is supplied with a cord and plug. The receptacle is not provided with the griddle. Follow the receptacle manufacturer’s instructions when connecting the receptacle to the power supply. Gas Connection This griddle is manufactured for use with the type of gas indicted on the nameplate. Contact the factory if your type of gas does not match the nameplate data. -
Page 9: Initial Start-Up
INITIAL START UP Initial Lighting Procedure Clean the preservative coating from the griddle plate and splash guard. Add a mild detergent to hot water and wash the griddle plate and splash guard. Rinse with a damp sponge and dry with a clean rag. -
Page 10: Operation
OPERATION Setting the Griddle Temperature The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. -
Page 11: Loading The Griddle
OPERATION Loading the Griddle An understanding of how the griddle sections are controlled will be a valuable aid in loading your griddle. Each 12” inch section of your griddle is independently controlled by a thermostat. The thermostat’s sensor is mounted in the center of each cooking section under the griddle plate. If the product is loaded directly over the probe, that section will turn on and the burner will heat the entire 12”... -
Page 12: Daily Cleaning
5 years against manufacturing defects to the original owner from the date of installation. This limited warranty is void if it is determined by Lang Manufacturing or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1. -
Page 13: Burner Air Shutter Adjustment
MAINTENANCE & CLEANING continued Burner Air Shutter Adjustment • The air shutters are pre-set at the factory. However, minor adjustments may be required in Burner the field to accommodate differences in gas and Set Screw elevation. • To adjust the air shutters, loosen the set screw Air Shutter holding the air damper to the burner near the gas inlet. - Page 14 TROUBLESHOOTING Symptoms The chart below is to assist in the troubleshooting of the griddle. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible cause, refer to the TEST section (on the following page) and locate the Possible Cause then refer to test to identify test procedures.
- Page 15 · Adjust to correct pressure Plugged regulator vent, or orifice · Clean as necessary NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your LANG authorized service agent directory or call the factory at (314) 678-6315, or www.langworld.com For the service agent nearest you.
- Page 16 MATERIAL MODEL NO. PART NO. STAR MANUFACTURING INTERNATIONAL INC. # 10 SUNNEN DRIVE 2M-61122-W33 NOTES: ST. LOUIS, MO. 63143, USA FINISH TITLE DASHED COMPONENTS ARE FOR USE WITH W/D ACCUTEMP 24" GAS GRIDDLE WITH CSG24 CLAMSHELL 12/11/2007 Dan Sovar DATE OPTIONAL TIMER.
- Page 17 MATERIAL MODEL NO. PART NO. STAR MANUFACTURING INTERNATIONAL INC. 2M-61122-W24 # 10 SUNNEN DRIVE ST. LOUIS, MO. 63143, USA FINISH TITLE NOTES: W/D ACCUTEMP 3' GAS GRIDDLE WITH CSE12 CLAMSHELL DATE 10/23/2007 FUSE BLOCK PAIR REQUIRED FOR THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L TOLERANCE: UNLESS NOTED: .xxx ±...
- Page 18 Units mfg before July 2013 :SEE DETAIL Units mfg after July 2013 :SEE DETAIL Electrical Conduit Correctional Package Model: 224T thru 272T GAS ACCU-TEMP GRIDDLE SK2581 Rev. A 7/19/13...
- Page 19 PARTS LIST March 03, 2015, Rev. I Model: 224T Accu-Temp Gas Griddle Fig No. Part Number Description Application K9-EZG-460 PLATE ASY 2’ ACU 224T-NAT 224THG-LP, 224THG-NAT, 224THG-LPMG, 224THG- K9-EZG-460-01 PLATE ASY 2” ACU W/AGC NATMG, 224TH-NATMG, 224TH-LPMG K9-EZG-460-011 PLATE ASSY 2’ CHROME...
- Page 20 PARTS LIST March 03, 2015, Rev. I Model: 236T Accu-Temp Gas Griddle Fig No Part No Description Application K9-EZG-463 PLATE ASY 3’ ACU 236T K9-EZG-463-01 PLATE ASY 3’ ACU w/AGC 236THG-LP K9-EZG-463-3 PLATE ASY 3’ ACU w/XLH-12 236THE-NAT, 236THE-NATCD K9-EZG-463-60 PLATE ASSY-3’...
- Page 21 PARTS LIST March 03, 2015, Rev. I Model: 248T Accu-Temp Gas Griddle Fig No Part Number Quantity Description Application K9-EZG-466 PLATE ASY 4’ ACU 248T K9-EZG-466-01 PLATE ASY 4’ ACU W/AGC 248THG K9-EZG-466-3 PLATE ASY 4’ ACU w/XLH-12 248THE K9-EZG-466-60 PLATE ASY 4’...
- Page 22 DIAL PLATE 450o STAT K9-60301-43-1 DIE CAST LOG + TINNERMAN K9-EZG-607 SPOT CNTRL PNL 5’ ACU K9-60102-16-5 CONTROL PANEL 5’ EZG ACCU-TEMP W/LABELS 2C-20101-11 SCRW THD MS 1/4-20X1/2 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL K9-EZG-344 GREASE DRAWER ASSY...
- Page 23 PARTS LIST March 03, 2015, Rev. I Model: 272T Accu-Temp Gas Griddle Fig No .Part Number Quantity Description Application K9-EZG-472 PLATE ASY 6’ ACU 272T-NAT K9-EZG-472-60 PLATE ASSY-6’ ACCU CHROME 272TC-NAT K9-EZG-472-63 PLATE ASY 6’ ACU CROME 272TC-LPTE, 272TC-NATTE K9-EZG-472-01 PLATE ASY 6’...
- Page 24 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL 2J-80201-24 PLT LT BURNR, SEC 2, 3, 4 (except 6ft griddles) 5 & 6 Model: Selectronic & ACCU-TEMP MANIFOLD ASSY 2J-80201-25 PLT LT BRNR, SEC 1 & (4 on 6ft Grills) DETAIL...
- Page 25 DETAIL Manifold Assy, units Mfg After July 2013 (manufactured after July 2013) Fig No. Part Number Description Application 2K-70101-03 BRASTBEELBOW 1/4NPT-3/8CC 2K-70101-06 BRASTEE BRNCH 1/4NPTM-3/8 2K-70308-01 PIPE PLUG REG 1/8 NPT BLK 2J-80201-25 PLT LT BRNR GEI LT 12 3S2 2J-80201-24 PLT LT BURNR FR GEI12LEAD 2C-20103-02...
- Page 28 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
