Summary of Contents for Lang 124TH

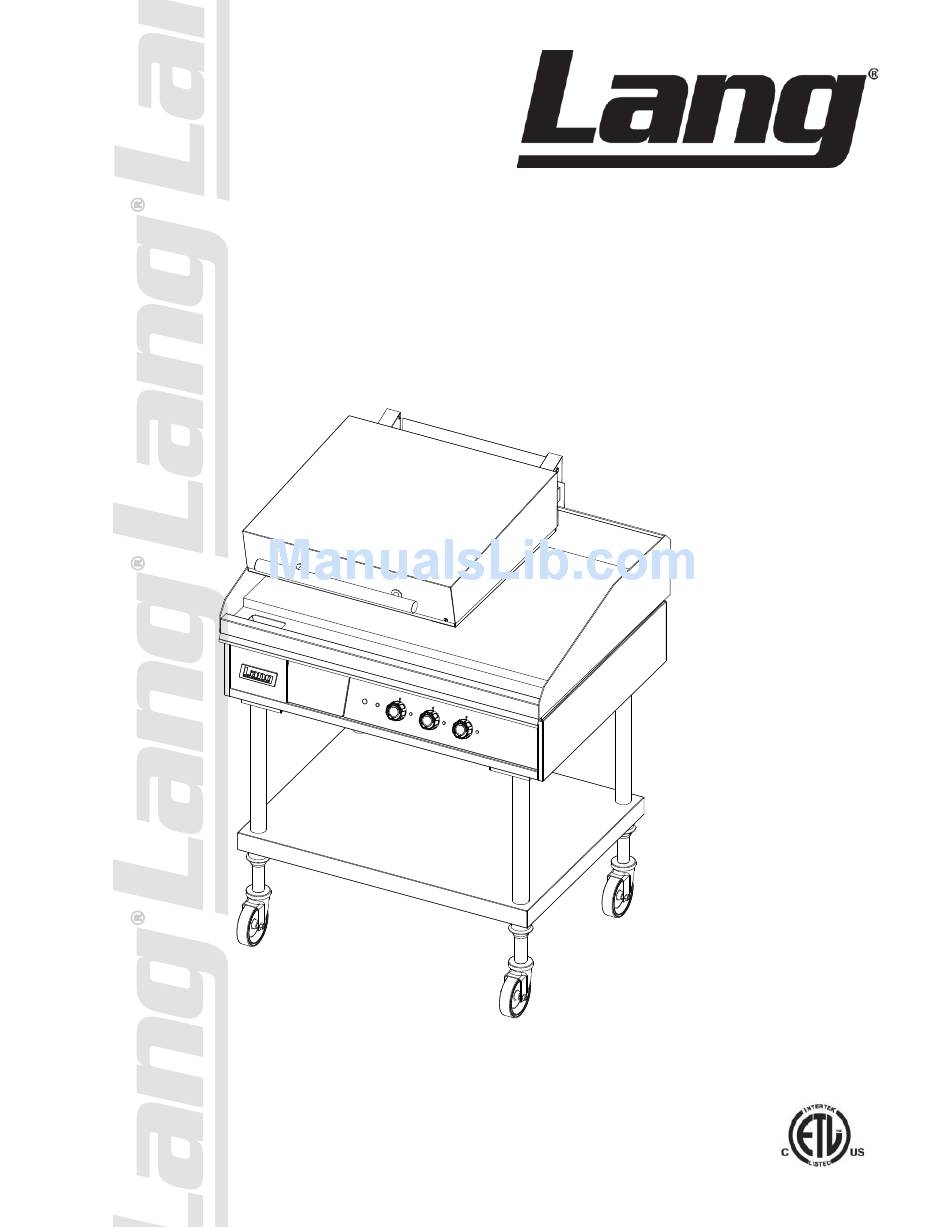

- Page 1 ELECTRIC GRIDDLE ® w/24” CLAMSHELL 24TH 36TH, 36TH, 36THR 48TH, 48THR 48THS 48TH2 Installation and Operation Instructions 2M-W351 Rev. F 1/27/12 36TH IL1559...
- Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 314-678-6315. TABLE OF CONTENTS Specifications ......4 Equipment Description . - Page 4 Actual Shipping Class (Not including legs, Clamshell® open) 45.6” X 24.0” 31.9” 298 lbs. 335 lbs 124TH 1158mm x 610mm x 811mm 135 kg 152 kg 45.6” X 36.0” 31.9” 428 lbs. 470 lbs. 136TH 1158mm x 914mm x 811mm...
-
Page 5: Equipment Description
EQUIPMENT DESCRIPTION Griddle Surface Electric Hood Gutter Grease Pan Hood “on/off” Switch Hood Indicator light Section Temp Dial Section Pilot Light IL1561 Exterior Construction Griddle The griddle dimensions are 7” (43.8cm) High, 30” (76.20cm) Deep, and width is dependent on the actual model number. -
Page 6: Unpacking
The griddle is standard 208/240 dual voltage, 3 phase, for on-site installation to either 208V or 240V. For simple conversion to single phase power connection see the phasing portion of this manual. This conversion is extremely easy and neither terminates the Lang warranty nor is chargeable to Lang as warranty service. -
Page 7: Installation
INSTALLATION IL1562 Std Leg Above: typical leg installation. Leg Installation The TH Hood comes standard with 4-inch stainless steel legs. An optional stand is available. To install the legs, remove the legs from the grease drawer. Using extreme caution elevate the griddle 0 inches off the ground and install the legs in the threaded holes provided. -
Page 8: Ventilation & Clearence
BE SURE THE POWER SUPPLY VOLTAGE MATCHES THE VOLTAGE SPECIFIED ON THE NAMEPLATE LOCATED ON THE FRONT OF THE GRIDDLE. Phasing GRIDDLE TH HOOD Three Phase Single Phase Single Phase Model Number 124TH 136TH 1,3,5 2,4,6 148TH 1,4,7 2,5,8 1,3,5,7 2,4,6,8... - Page 9 INITIAL START UP Griddles Prior to putting any griddle into full time operation at normal cooking temperatures, it must be thoroughly “seasoned” and dried out. Moisture absorption in the closed spaces, in the insulation and even inside the heating elements can cause future trouble if not properly treated. Before seasoning the griddle it is first necessary to remove the shipping preservative from the griddle surface.
-
Page 10: Operation General
OPERATION General The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. Adjoining sections should be set at progressively higher temperatures. Do not try to operate the end sections hot and the center sections cool. -
Page 11: Daily Cleaning
MAINTENANCE & CLEANING WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC. MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAUTION CAREFULLY READ THE WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. -
Page 12: Calibration
ON CROME SURFACES: Never use pumice, griddle stones, or abrasives on the surface. Never strike the griddle surface with a sharp instrument or spatula edge. Never use steel wool. CAUTION Never use commercial liquid grill cleaner on the griddle surface. Abusing the surface voids the warranty. -
Page 13: Troubleshooting
To test for a possible causes refer to the TEST section and locate the Possible Cause then refer to test to identify test procedures. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory or call the factory at 314-678-6315, or www.langworld.com For the service agent nearest you. - Page 16 DETAIL 14 10 Model: 124TH, 136TH, 148TH Electric Clamshell ® SK2399 Rev. - 10/06/08...
-
Page 17: Parts List
PARTS LIST March 2, 202, Rev. F Model: 124TH, 124TH-208MGT, 124TH-208VMG; Thermostatic Electric Clamshell® Commercial Fig No Part Number Description Application K9-XL-722-7 PLATE ASY 2’ COMBO 124TH K9-XL-722-C7 PLATE ASSY 2’ COMBO CHROME 124THC 2N-11030-30 ELMNT GRID 208V 1257W 124TH 2N-11030-29 ELE GRD 208/240V4.5KW/6KW... - Page 18 PARTS LIST January 27, 202, Rev. F Model: 136TH, 136THE-480VM; Thermostatic Electric Clamshell® Commercial Fig No Part Number Description Application K9-XL-722-8 PLATE ASY 3’ COMBO 136TH K9-XL-722-81 PLATE ASY 3’ COMBO RH 136THR 2N-11030-30 ELMNT GRID 208V 1257W 136TH 2N-11030-29 ELE GRD 208/240V4.5KW/6KW 136TH K9-XL-426...
- Page 19 PARTS LIST January 27, 202, Rev. F Model: 148TH, 148THR, 148THS; Thermostatic Electric Clamshell® Commercial Fig No Part Number Description Application K9-XL-722-9 PLATE ASY 4’ COMBO LH 148TH K9-XL-722-901 PLATE ASY 4’ COMBO RH 148THR K9-XL-722-903 PLATE ASY 4’ SLIDER TALL 148THS 2N-11030-30 ELMNT GRID 208V 1257W...
- Page 20 See Detail 148THS SLIDE DETAIL Model: 124TH, 136TH, 148TH Electric Clamshell ® SK2400 Rev. - 10/06/08...
- Page 21 PARTS LIST June 3, 20, Rev. F Model: 124TH, 136TH, 148TH, 148THS, 148TH2, DETAIL A, THEMOSTAT ELECTRIC HOOD Single Double Fig No. Part No Hood Qty Hood Qty Description Applications 2C-20101-09 SCRW THD MS 10-24X3/8 PLT K9-XLH-122 HOOD WRAP K9-XLH-125...
- Page 22 DETAIL Model: 148THS Electric Sliding Clamshell Frame Assy ® SK2401 Rev. - 10/06/08...
- Page 23 PARTS LIST September 0, 2009, Rev. F Model No: 148THS Detail A: Sliding Hood Frame Assy Part Number Description Number 2K-7080-0 SNAP BUSH 7/6 SB437-5 48THS K9-XLH-435 SLIDER STOP SLIDER HOOD 48THS 2C-2020-09 WSHR PLT 5/6 FLAT SAE 48THS 2C-2004-2 SCRW HXHD CAP 5/6-8X2 48THS K9-XLH-433...
- Page 24 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
