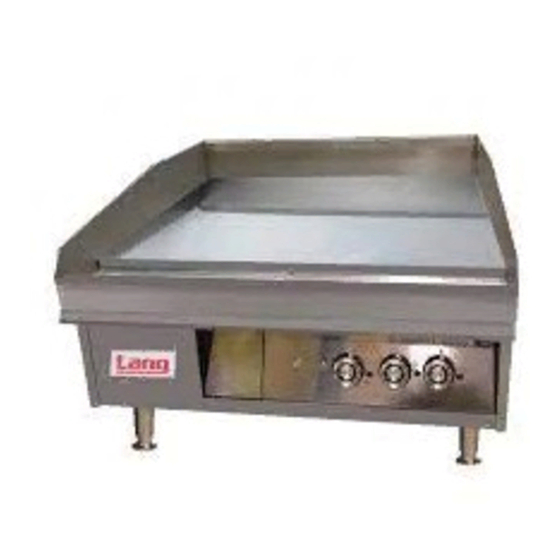

Selectronic gas griddle
Hide thumbs
Also See for 224S:
- Installation, operation and maintenance instructions (24 pages) ,
- Installation & operation instructions (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lang 224S
Summary of Contents for Lang 224S

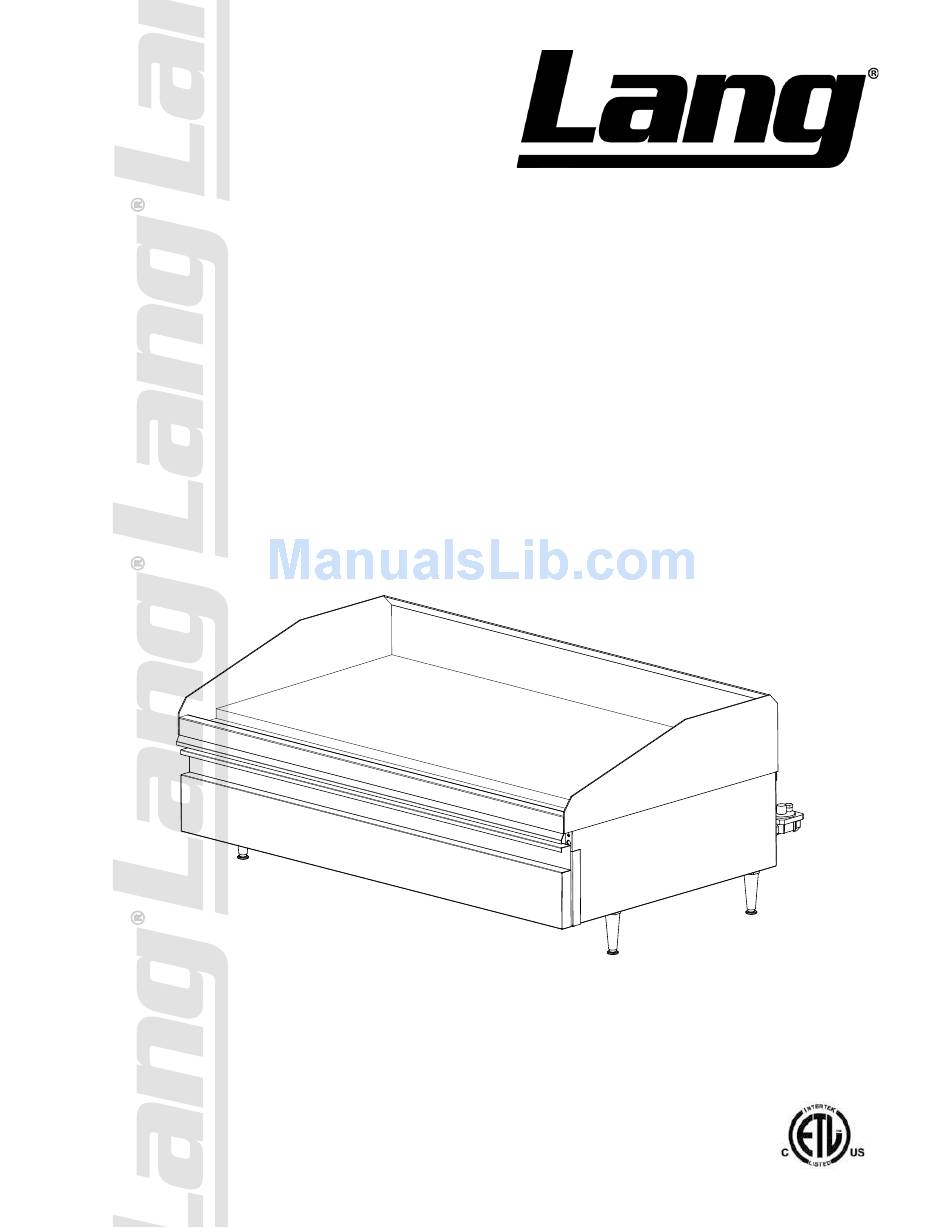

- Page 1 SELECTRONIC GAS GRIDDLE Commercial 224S, 224SC 236S, 236SC 236SCHG, 236SHE, 236SHG 248S, 248SHE, 248SHG, 260S, 272S Installation and Operation Instructions 2M-W360 Rev. J 3/03/15 IL1576 248S...
- Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at (314) 678-6315 TABLE OF CONTENTS Specifications 4 - 5 Equipment Description Unpacking Installation Ventilation & Clearence Electrical & Gas Connection... - Page 4 (Not including legs) combustible surface Actual Shipping Class 16.4” x 24.1” x 30.4” 243 lbs. 280 lbs. 224S 418mm x 613mm x 773mm 110 kg 127 kg 16.4” x 36.1” x 30.4” 368 lbs. 420 lbs. 236S 418mm x 917mm x 773mm...
-
Page 5: Specifications
EQUIPMENT SPECIFICATIONS SPECIFICATIONS Gas Requirements Electrical Requirments Current Model NAT.Gas LP. Gas Burner Input Manifold Press. Gas Connection (3/4” NPT) Voltage Total kW Phase Amps /Line 224S-NAT 5 WC 224SC-NAT 5 WC 115V/60Hz 224SHE-NAT 5 WC 50,000 BTU/hr 224SR-LP 10 WC 240V/60Hz 0.25... -
Page 6: Equipment Description
The griddle weighs 260, 390, 520, 650, 780 lbs. depending on actual model number. Griddle Gas and Voltage Specifications The Lang Model can be connected to any 120 Volt source. The gas and electrical specifications are listed in the table on the previous page. -
Page 7: Unpacking
UNPACKING Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 8: Electrical & Gas Connection
INSTALLATION Electrical Connection The 120V griddles are supplied with a cord and plug, 240V units are not. The 120V receptacle is not provided with the griddle. Follow the receptacle manufacturer’s instructions when connecting the receptacle to the power supply. Gas Connection This griddle is manufactured for use with the type of gas indicted on the nameplate. -
Page 9: Initial Start-Up
INITIAL START UP Initial Lighting Procedure Clean the preservative coating from the griddle plate and splash guard. Add a mild detergent to hot water and wash the griddle plate and splash guard. Rinse with a damp sponge and dry with a clean rag. -
Page 10: Operation
OPERATION Setting the Griddle Temperature The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. -
Page 11: Loading The Griddle
OPERATION Loading the Griddle An understanding of how the griddle sections are controlled will be a valuable aid in loading your griddle. Each 12 inch section of your griddle is independently controlled. The temperature control sensor is mounted under the griddle plate in the center of each cooking section. If the product is loaded directly over the temperature sensor, that section will turn on and the burner will heat the entire cooking section. -
Page 12: Sequence Of Operation
5 years against manufacturing defects to the original owner from the date of installation. This limited warranty is void if it is determined by Lang Manufacturing or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1. -
Page 13: Daily Cleaning
MAINTENANCE & CLEANING continued Daily Cleaning (Non chrome only) • Empty the grease drawer daily or whenever it is 3/4 full. It is easily removed for washing. • Keep the griddle surface clean. After each cooking load, scrape the griddle surface to remove any carbonized grease. - Page 14 TROUBLESHOOTING Symptoms The chart below is to assist in the troubleshooting of the griddle. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible cause, refer to the TEST section (on the following page) and locate the Possible Cause then refer to test to identify test procedures.
-
Page 15: Possible Causes / Test
• Adjust to correct pressure Plugged regulator vent, or orifice • Clean as necessary NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your LANG authorized service agent directory or call the factory at (314) 678-6315, or WWW.LANGWORLD.COM For the service agent nearest you. -
Page 20: Exploded View & Parts List
Units mfg before July 2013 :SEE DETAIL Units mfg after July 2013 :SEE DETAIL Electrical Conduit Model: 224S thru 272S GAS SELECTRONIC GRIDDLE SK2404 Rev. A 7/18/13... -
Page 21: Parts List
PNLLBL SELCT SWTDIAL 450o 224S 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 224S K9-60102-144 CONTROL PANEL COVER 2’ 224S 2M-60301-43 DIE CAST PLT LANG SATIN 224S K9-60301-43-1 DIE CAST LOG + TINNERMAN 224S 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL 224S K9-EZG-349 GREASE DRAWER SLIDE 2’... - Page 22 SWT PLATE ON/OFF 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 K9-60102-42 CONTROL PANEL COVER 3’ 2M-60301-43 DIE CAST PLT LANG SATIN K9-60301-43-1 DIE CAST LOG + TINNERMAN 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL K9-EZG-355 GREASE DRAWER SLIDE K9-50303-11...
- Page 23 PNLLBL SELCT SWTDIAL 450o 248S 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 248S K9-60102-122 PANEL COVER ASSY 4FT EZG 248S-NAT/LP 2M-60301-43 DIE CAST PLT LANG SATIN 248S K9-60301-43-1 DIE CAST LOG + TINNERMAN 248S 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL 248S K9-EZG-355...
- Page 24 260S 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 260S K9-EZG-620 CONTROL PANEL 5’ COVER 260S-NAT, 260S-LP 2M-60301-43 DIE CAST PLT LANG SATIN 260S K9-60301-43-1 DIE CAST LOG + TINNERMAN 260S 2C-20602-04 TINNERAMN SPD NUT 1/8” DIA 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL...
- Page 25 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 K9-EZG-615 CONTROL PANEL COVER 3’ 2M-60301-43 DIE CAST PLT LANG SATIN K9-60301-43-1 DIE CAST LOG + TINNERMAN 2C-20602-04 TINNERAMN SPD NUT 1/8” DIA 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL...
- Page 26 Manifold Assy, units Mfg Before July 2013 Fig No. Part Number Description 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL K9-EZG-995 PILOT ASSEMBLY, LF MNT K9-EZG-996 PILOT ASSEMBLY, RT MNT Model: Selectronic & ACCU-TEMP MANIFOLD ASSY K9-EZG-637 PILOT TUBE #1 DETAIL K9-EZG-640 PILOT TUBE #2...
- Page 27 DETAIL Manifold Assy, units Mfg After July 2013 (manufactured after July 2013) Fig No. Part Number Description Application 2K-70101-03 BRASTBEELBOW 1/4NPT-3/8CC 2K-70101-06 BRASTEE BRNCH 1/4NPTM-3/8 2K-70308-01 PIPE PLUG REG 1/8 NPT BLK K9-EZG-996 PILOT ASSEMBLY, RT MNT K9-EZG-995 PILOT ASSEMBLY, LF MNT SK2671 Rev.
- Page 28 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
