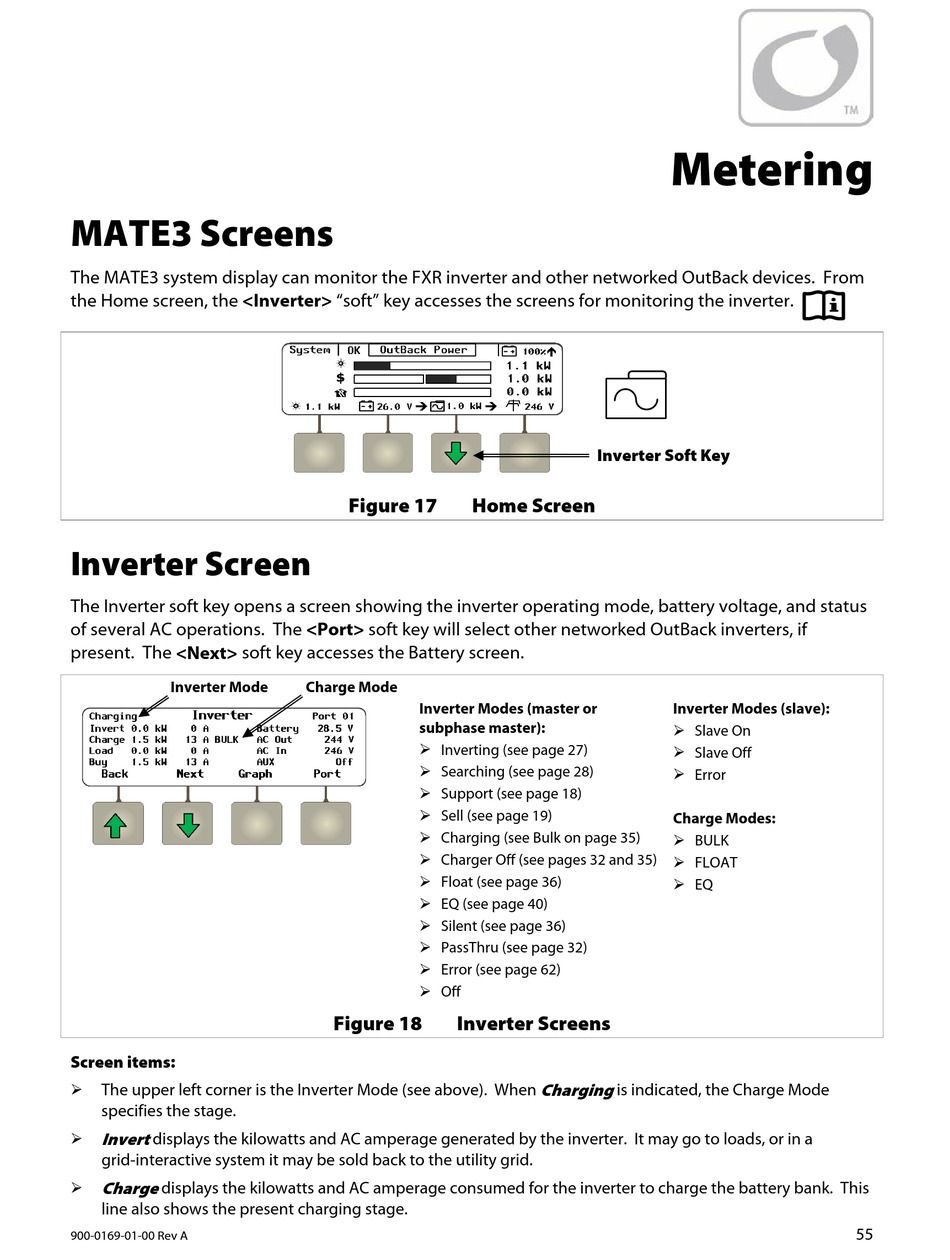

MATE3 Screens

The MATE3 system display can monitor the FXR inverter and other networked OutBack devices. From
the Home screen, the <Inverter> "soft" key accesses the screens for monitoring the inverter.

Inverter Screen

The Inverter soft key opens a screen showing the inverter operating mode, battery voltage, and status
of several AC operations. The <Port> soft key will select other networked OutBack inverters, if
present. The <Next> soft key accesses the Battery screen.
Inverter Mode
Screen items:

The upper left corner is the Inverter Mode (see above). When
specifies the stage.

Invert displays the kilowatts and AC amperage generated by the inverter. It may go to loads, or in a
grid-interactive system it may be sold back to the utility grid.

Charge displays the kilowatts and AC amperage consumed for the inverter to charge the battery bank. This
line also shows the present charging stage.
900-0169-01-00 Rev A
Figure 17 Home Screen
Charge Mode
Inverter Modes (master or
subphase master):
 Inverting (see page 27)
 Searching (see page 28)
 Support (see page 18)
 Sell (see page 19)
 Charging (see Bulk on page 35)
 Charger Off (see pages 32 and 35)
 Float (see page 36)
 EQ (see page 40)
 Silent (see page 36)
 PassThru (see page 32)
 Error (see page 62)
 Off
Figure 18 Inverter Screens

Metering

Inverter Soft Key
Inverter Modes (slave):
 Slave On
 Slave Off
 Error
Charge Modes:
 BULK
 FLOAT
 EQ
Charging is indicated, the Charge Mode
