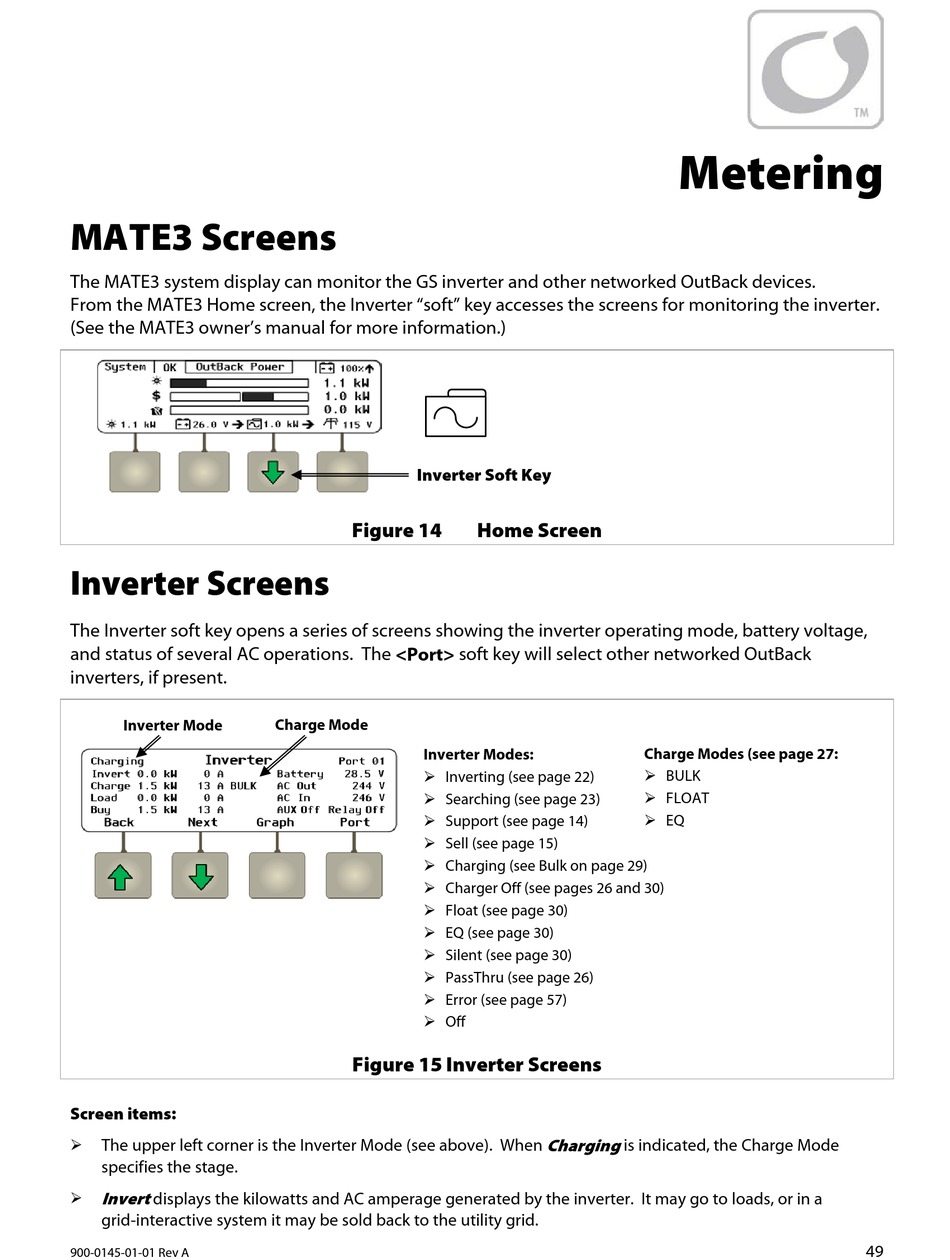

Metering; Mate3 Screens; Inverter Screens; Figure 14 Home Screen - Outback Power Systems GS7048E Operator's Manual

MATE3 Screens

The MATE3 system display can monitor the GS inverter and other networked OutBack devices.
From the MATE3 Home screen, the Inverter "soft" key accesses the screens for monitoring the inverter.
(See the MATE3 owner's manual for more information.)

Inverter Screens

The Inverter soft key opens a series of screens showing the inverter operating mode, battery voltage,
and status of several AC operations. The <Port> soft key will select other networked OutBack
inverters, if present.
Inverter Mode
Screen items:
The upper left corner is the Inverter Mode (see above). When

specifies the stage.
Invert
displays the kilowatts and AC amperage generated by the inverter. It may go to loads, or in a

grid-interactive system it may be sold back to the utility grid.
900-0145-01-01 Rev A
Inverter Soft Key
Figure 14
Charge Mode
Inverter Modes:
 Inverting (see page 22)
 Searching (see page 23)
 Support (see page 14)
 Sell (see page 15)
 Charging (see Bulk on page 29)
 Charger Off (see pages 26 and 30)
 Float (see page 30)
 EQ (see page 30)
 Silent (see page 30)
 PassThru (see page 26)
 Error (see page 57)
 Off

Figure 15 Inverter Screens

Home Screen
Charge Modes (see page 27:
 BULK
 FLOAT
 EQ
Charging
is indicated, the Charge Mode

Metering

49
