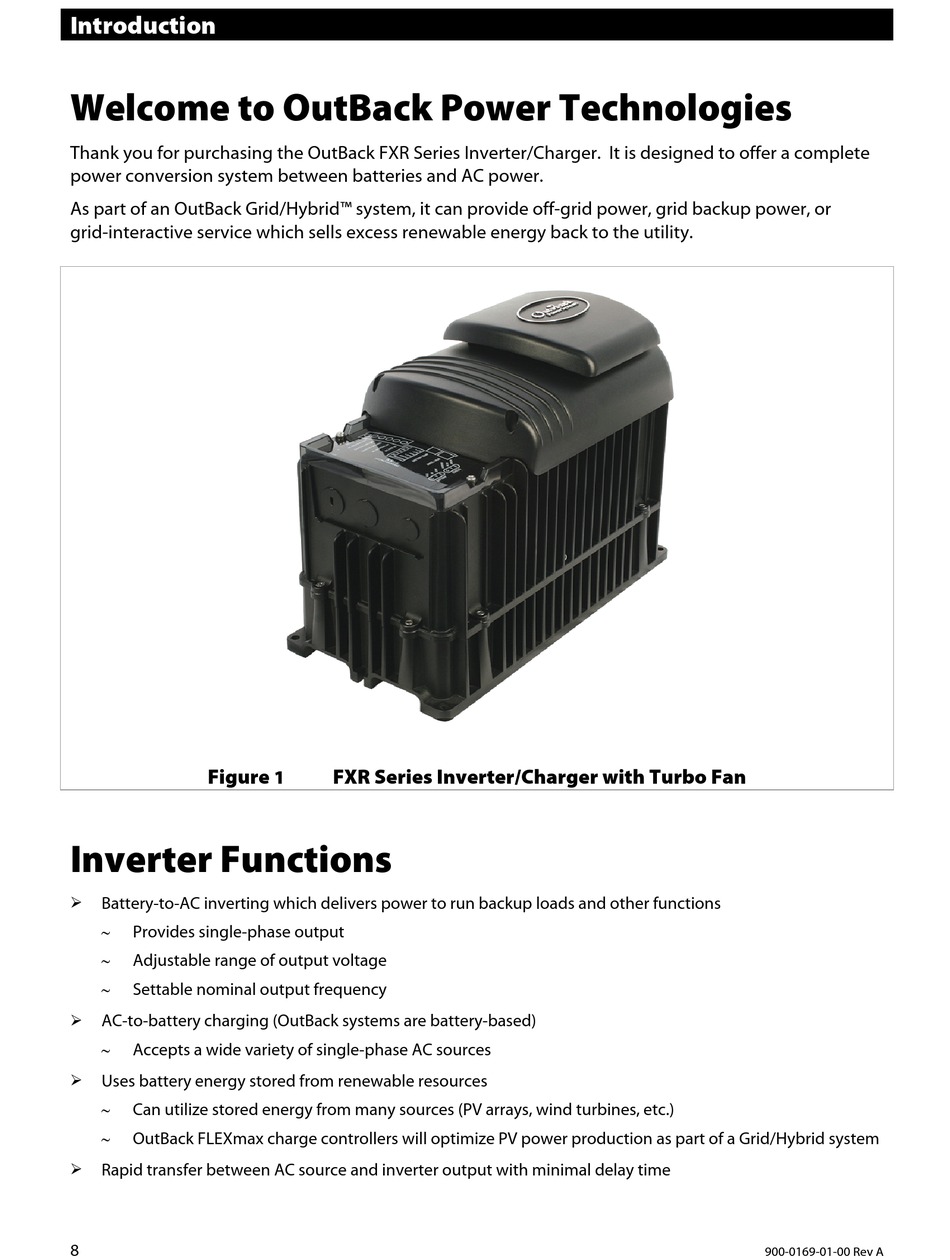

Welcome To Outback Power Technologies; Inverter Functions; Figure 1 Fxr Series Inverter/Charger With Turbo Fan - Outback Power Systems FXR2012E Operator's Manual

Introduction

Welcome to OutBack Power Technologies

Thank you for purchasing the OutBack FXR Series Inverter/Charger. It is designed to offer a complete
power conversion system between batteries and AC power.
As part of an OutBack Grid/Hybrid™ system, it can provide off-grid power, grid backup power, or
grid-interactive service which sells excess renewable energy back to the utility.
Figure

Inverter Functions


Battery-to-AC inverting which delivers power to run backup loads and other functions

Provides single-phase output

Adjustable range of output voltage

Settable nominal output frequency

AC-to-battery charging (OutBack systems are battery-based)

Accepts a wide variety of single-phase AC sources

Uses battery energy stored from renewable resources

Can utilize stored energy from many sources (PV arrays, wind turbines, etc.)

OutBack FLEXmax charge controllers will optimize PV power production as part of a Grid/Hybrid system

Rapid transfer between AC source and inverter output with minimal delay time
8
FXR Series Inverter/Charger with Turbo Fan
1
