Temperature Derating

All FXR inverters can deliver their full rated wattage at temperatures up to 25°C (77°F). The FXR
maximum wattage is rated less in higher temperatures. Above 25°C, each inverter model is derated by
a factor of 1% of that model's rated wattage for every increase of 1°C. This derating applies to all
power conversion functions (inverting, charging, selling, offsetting, etc.)

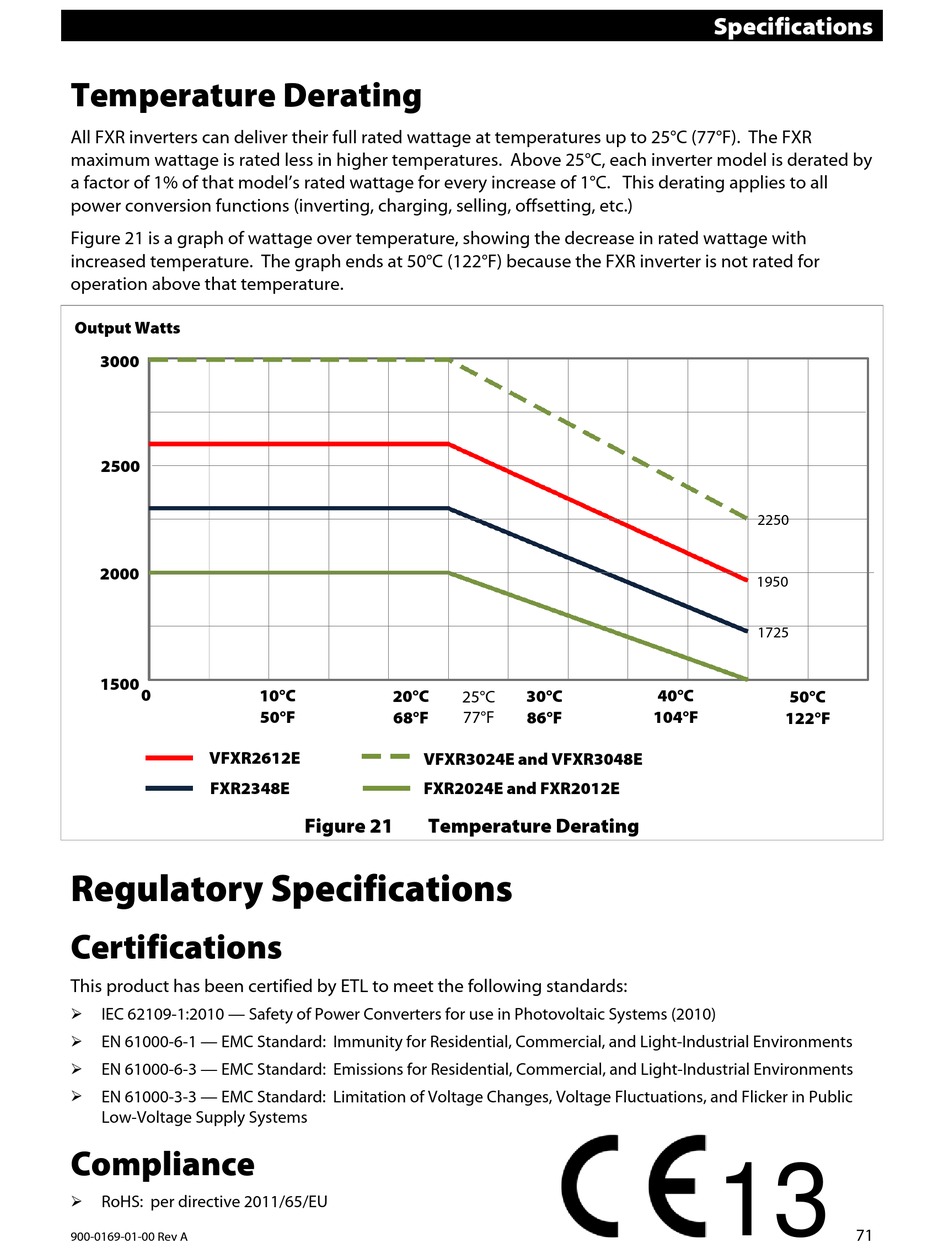

Figure 21 is a graph of wattage over temperature, showing the decrease in rated wattage with
increased temperature. The graph ends at 50°C (122°F) because the FXR inverter is not rated for
operation above that temperature.
Output Watts
3000
2500
2000
1500
0
VFXR2612E
FXR2348E

Regulatory Specifications

Certifications

This product has been certified by ETL to meet the following standards:

IEC 62109-1:2010 — Safety of Power Converters for use in Photovoltaic Systems (2010)

EN 61000-6-1 — EMC Standard: Immunity for Residential, Commercial, and Light-Industrial Environments

EN 61000-6-3 — EMC Standard: Emissions for Residential, Commercial, and Light-Industrial Environments

EN 61000-3-3 — EMC Standard: Limitation of Voltage Changes, Voltage Fluctuations, and Flicker in Public
Low-Voltage Supply Systems

Compliance


RoHS: per directive 2011/65/EU
