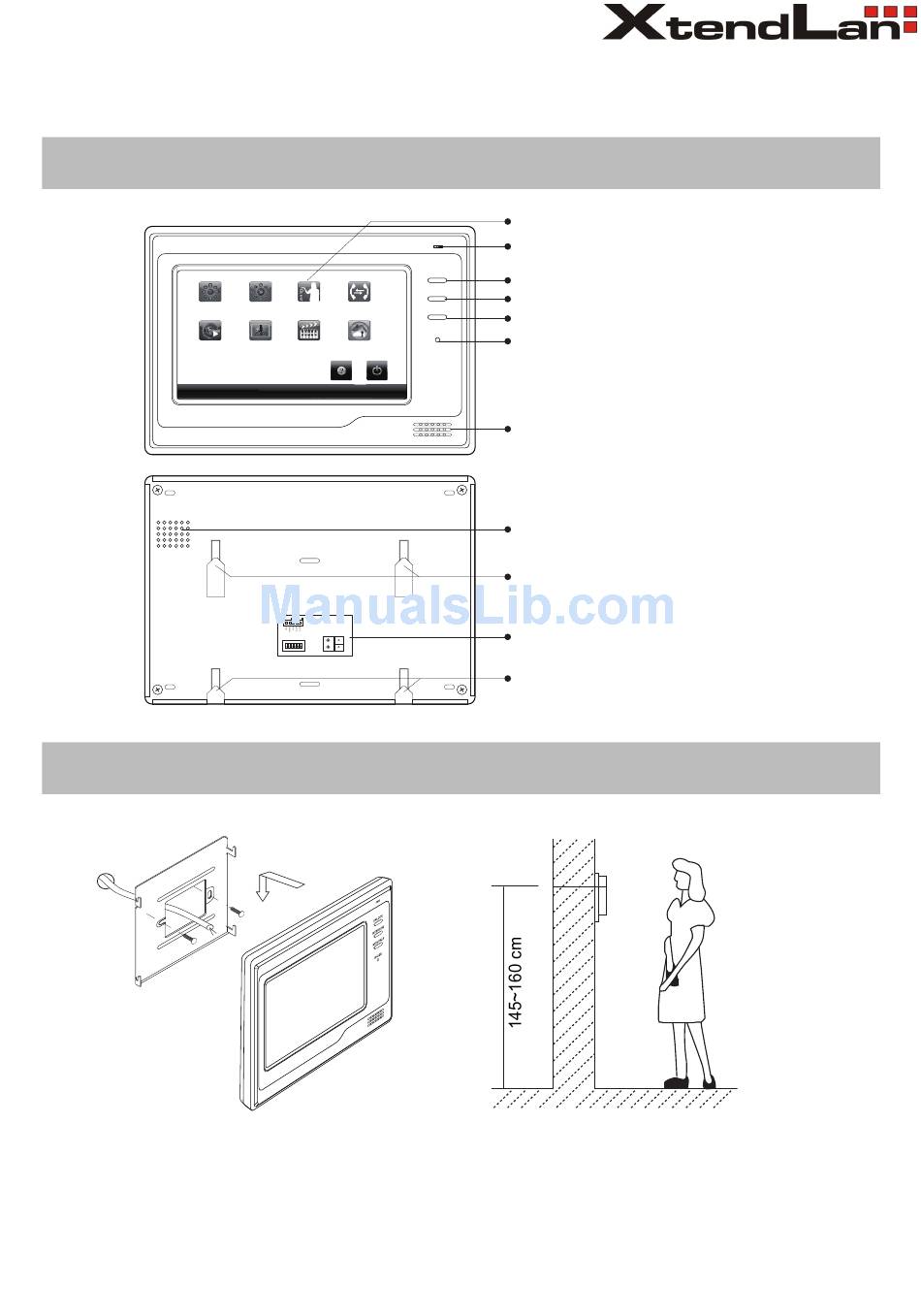

1. Parts and Functions
Monitor
Auto
Memo
Playback
2. Monitor Mounting
1. Use the screws to fix the Mounting Bracket on the wall.(accessories include a Bracket, two 4X25
screws (use to fasten the Mounting Bracket), 2 wire cables (use to connect with Monitor)).
2. Connect the system correctly. then hang the Monitor on the Mounting Bracket firmly.
DPM-D271TMD
User's manual
Monitor
Intercom
Intercom
by Select
by Namelist
Multi
Album
User Setup
Media
DIPS
L1
ON
L2
1 2 3 4 5 6
-1-
Home Screen
Microphone
CALL
CALL button
UNLOCK
UNLOCK button
TALK/MON
TALK/MON button
IN-USE
LED indicator
Speaker
Ventilation Vent
Mounting Hook
Connection Port
Mounting Hook
Advertisement
Table of Contents
Related Manuals for XtendLan DPM-D271TMD
Summary of Contents for XtendLan DPM-D271TMD
-
Page 1: Parts And Functions
DPM-D271TMD User's manual 1. Parts and Functions Home Screen Microphone CALL CALL button UNLOCK UNLOCK button Monitor Monitor Intercom Intercom TALK/MON TALK/MON button Auto by Select by Namelist IN-USE LED indicator Multi Memo Album User Setup Playback Media Speaker Ventilation Vent... -
Page 2: Entrance Monitoring
3. Talk and Unlock Operation 1. Press the Call Button on Outdoor Station, the monitor rings, at the same time, the screen displays the visitor's image. CALL Standard UNLOCK Screen TALK/MON Unlock IN-USE Talk ON/OFF Capture Home 2. Press TALK/MON Button or touch Talk on/off icon, you can talk with the visitor for 90 seconds. During talking state, press the TALK/MON Button again or press icon to end the conversation. If nobody answers the phone, the screen will be turned off automatically after 40 seconds. If the system connects two or more Monitors, pick up any Monitor , the others will be automatically shut off. 3. During the conversation, press UNLOCK Button or touch Unlock icon to unlock the door.(if two locks are connected to door camera,touch icon to release the second lock ) 4. Entrance Monitoring 1. Press TALK/MON button on monitor in standby mode,or touch Monitor Auto icon on home screen. CALL the screen will display the view of the Outdoor Station. -
Page 3: Intercom Function
5. Intercom Function * Intercom by Namelist * User in one apartment can call other apartments in the system. Touch Intercom Call CALL item on home screen page ,and then touch UNLOCK Intercom by Namelist icon (the namelist will Dial TALK/MON Number be created automatically by the system). or direct IN-USE Last Next touch Intercom by Namelist icon on home screen.Select a name on the screen then touch Dial Number icon to call.Press icon to enter last/next name list page. -
Page 4: Ring Setting
6. Ring Setting 6.1 Ring Tone 12 pieces ring tones can be selected. When the Monitor is in standby, press anywhere two times CALL on the screen, home screen will be showed.and UNLOCK Carman Going Home TALK/MON then touch User Setup icon to enter call Door Station Ding Dong Congratulate Call Tone Rhythm of the rain Do Re Me IN-USE tone setting screen,touch Door station call tone/ For Elise Happy Birthday Exit&Save Sonatine Jingle Bell intercom call tone/door bell call tone,12 pieces Edelweiss... -
Page 5: Monitor Time Setting
8. Screen Setting 7. Monitor Time Setting Press anywhere two times on the screen in When the Monitor is in monitoring or talking, Press standby mode, home screen will be showed. Adjust icon to enter screen setting page. CALL CALL Brightness UNLOCK UNLOCK Monitor Monitor Intercom Intercom TALK/MON Auto by Select by Namelist TALK/MON color IN-USE scene IN-USE Adjust - Adjust + Memo Album... - Page 6 9. Bulit-in Memory and SD Card This Monitor has been equipped with a built-in memory (about 120 MB) together with a SD card reader. Maximum 16 GB SD card can be supported. CALL UNLOCK TALK/MON IN-USE SD card 1. The monitor can play photos and pictures. 2. Photo frame function, each photo playing will last 5 seconds, More pictures in the SD card, longer time for triggering the function, 800 pictures is supported in inner memory. With 2G SD card,more than 30000 pictures can be supported. 3. Use T-views photo software tool to transform the JPG format photos took by digital camera to TVS format photos that can be viewed on Monitor. 4. The captured pictures will be saved in a folder named by date,note that the pictures recording every day will be saved in different folders which automatically generated every day 5. The captured pictures in the built-in memory can be copied to the SD card, and it can be seen on the computer. 6. The built-in memory and SD card can be formatted by the Monitor. 7. Avoid to plug in/out the SD card when the monitor is under operation. 8. Playing will be interrupted by the calling from outdoor station.
-
Page 7: Picture Recording
10.Picture Memo 10.1 Picture Recording Both Auto-Recording and Manual-Recording are available. CALL 00:03 Talking Standard and Auto-Recording is default. If receive a Call , after 3s, UNLOCK Screen TALK/MON Unlock the monitor will record automatically. or you can touch IN-USE Talk ON/OFF icon to record the visitor's image manually. Capture Recording... Home 10.2 Setting You can setup Memo Options to choose 1/4/8 pictures memo. If 4/8 was chosen, you will have 4/8 shots for each recording operation, every 1.5 seconds catch a picture. CALL Record times [ ] Touch two times on screen in standy mode to enter home UNLOCK TALK/MON screen,and then touch Multi Media icon to enter IN-USE next page, touch Memo Option icon,a digital... -
Page 8: Photo Frame
11.Photo Frame 11.1 Playing Press anywhere two times on the screen in the standby mode, home screen will be showed.and then touch icon to play the photos.it can be played both manually and automatically,use your fingers to Album slide left or right on screen to play last/next photo. 11.2 Playing time setting Touch two times on screen in standy mode to enter home screen,and then touch Multi Media icon to enter next page, touch Album Option icon,a digital CALL Album time set min:[ ] sec:[ ] keypad will be showed on the screen,then you can set the UNLOCK TALK/MON palying time by touching the digital keypad to input digitals IN-USE and use icon to move location and touch icon to save and press icon to return last page or...
