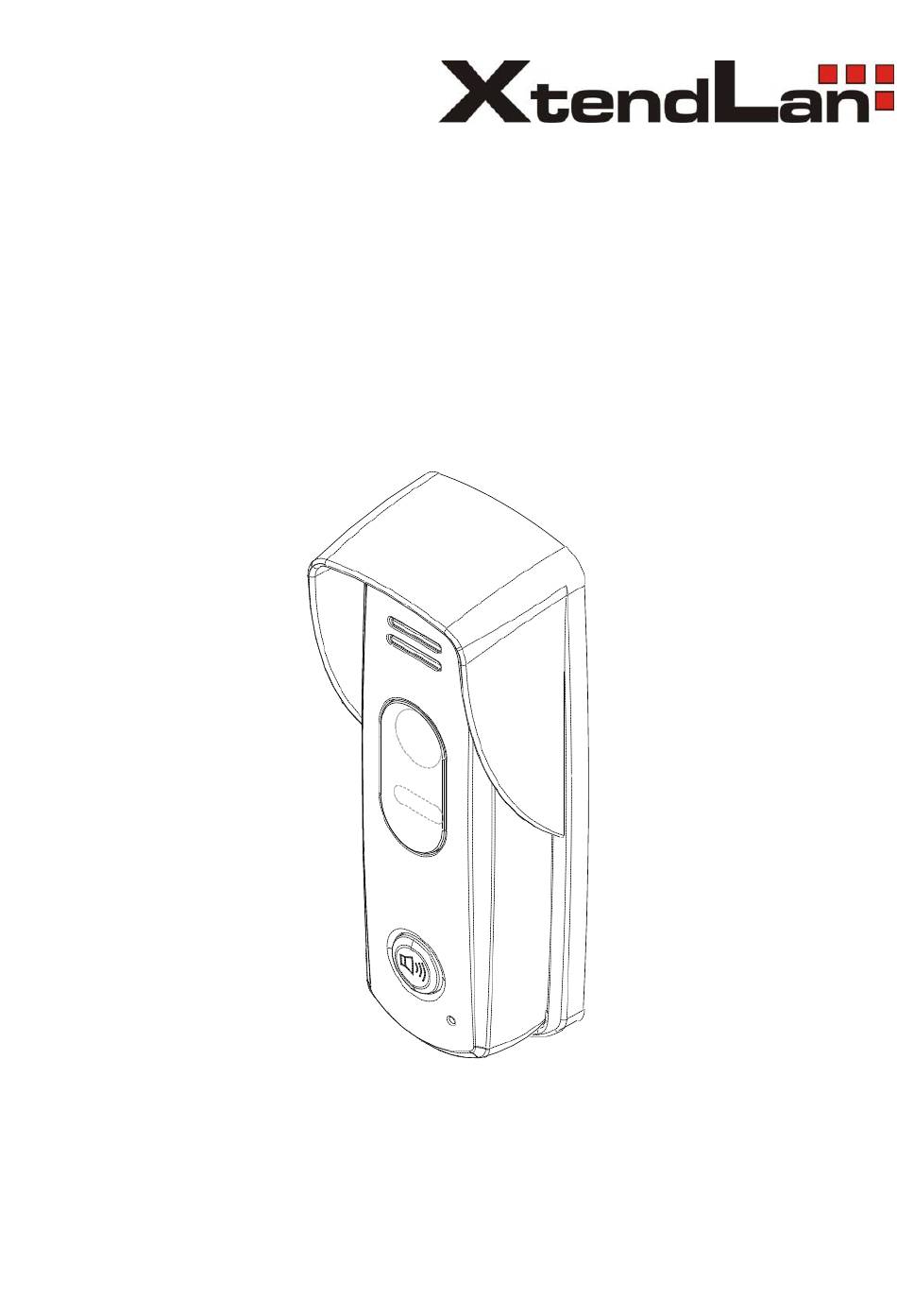

- Page 1 2-Wire Video Intercom System DPC-D246A User’s manual...
-
Page 2: Parts And Function

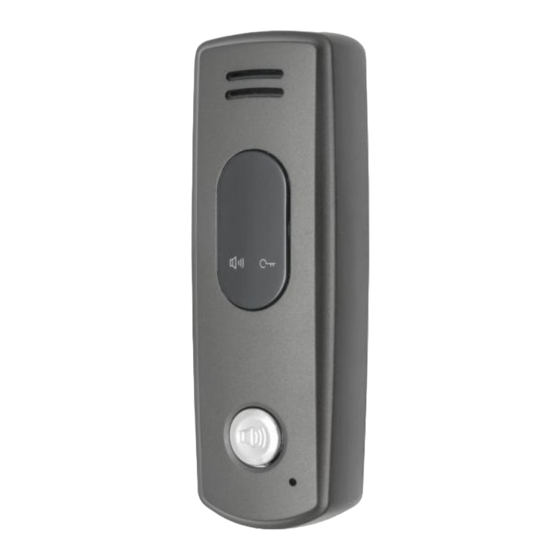

Parts and Function The door station is an audio door station without camera, which is designed for 2-wire system. The front panel is made of zinc alloy for better protection against vandalism & cauterization, and the call button is also made of zinc alloy with blue backlight for auxiliary illumination, the unlock and talking LED indicator guarantee the door station working efficiently. -
Page 3: Unit Mounting
please refer to DPV-D246 user instructions in details. PL(White): external lock power input, connect to the power positive(power +). S1+(Yellow): lock power(+) output. S1-(Black): lock power(-) output. Unit Mounting The location of outdoor station should keep away from snow,rain,and intensity light. Accessory contents: Accessories include a screwdriver T20, one M4X10 screw, two PA4X25 screws,three PA3x25 screws,three PM3x12 screws,and five screw stoppers Φ6X30. - Page 4 Multi Door Station Connection 4# Camera 3# Camera 2# Camera 1# Camera ID=11 ID=01 ID=10 ID=00 Monitors Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- DIP=on,off,off A B C D DBC-4S Impedance Switch...
- Page 5 With DBC-4S Wiring Mode monitor monitor 3 4 5 6 3 4 5 6 Impedance OFF ON switch Code=15, DIP-6=on Code=14, DIP-6=on DIP=on,off,off monitor monitor 3 4 5 6 3 4 5 6 Code=12, DIP-6=on Code=13, DIP-6=on monitor monitor 3 4 5 6 3 4 5 6 Code=3, DIP-6=on Code=2, DIP-6=on...
- Page 6 With DPV-D246 wiring mode The audio door station DPC-D246A can be extended an additional CCTV camera to be a video door station. For more details about the camera, please refer to DPV-D246 user instructions. DPV-D246 Monitor Bus PL S2+ S1+ S1-...
-
Page 7: Dip Switch Setting
There are 6 bits in total. The DIP switches are used to configure the user code for Monitors. Bit-6 is an video impedance match switch, which have to be set to ON if match the impedance, otherwise set to OFF. DPC-D246A Bit-1~Bit-5 are used to set user code, to door station, the user code should set to... -
Page 8: Specification
Bit state User code Bit state User code Bit state User code code=0 code=6 code=11 3 4 5 3 4 5 3 4 5 code=1 code=7 code=12 3 4 5 3 4 5 3 4 5 code=2 code=8 code=13 3 4 5 3 4 5 3 4 5 code=3... -
Page 9: Cable Requirements
Cable Requirements The maximum distance of the wiring is limited in the D2 system. Using different cables may also affect the maximum distance which the system can reach. The farest monitor monitor with two or four monitors monitor monitor DBC-4S When Monitor quantity <...
