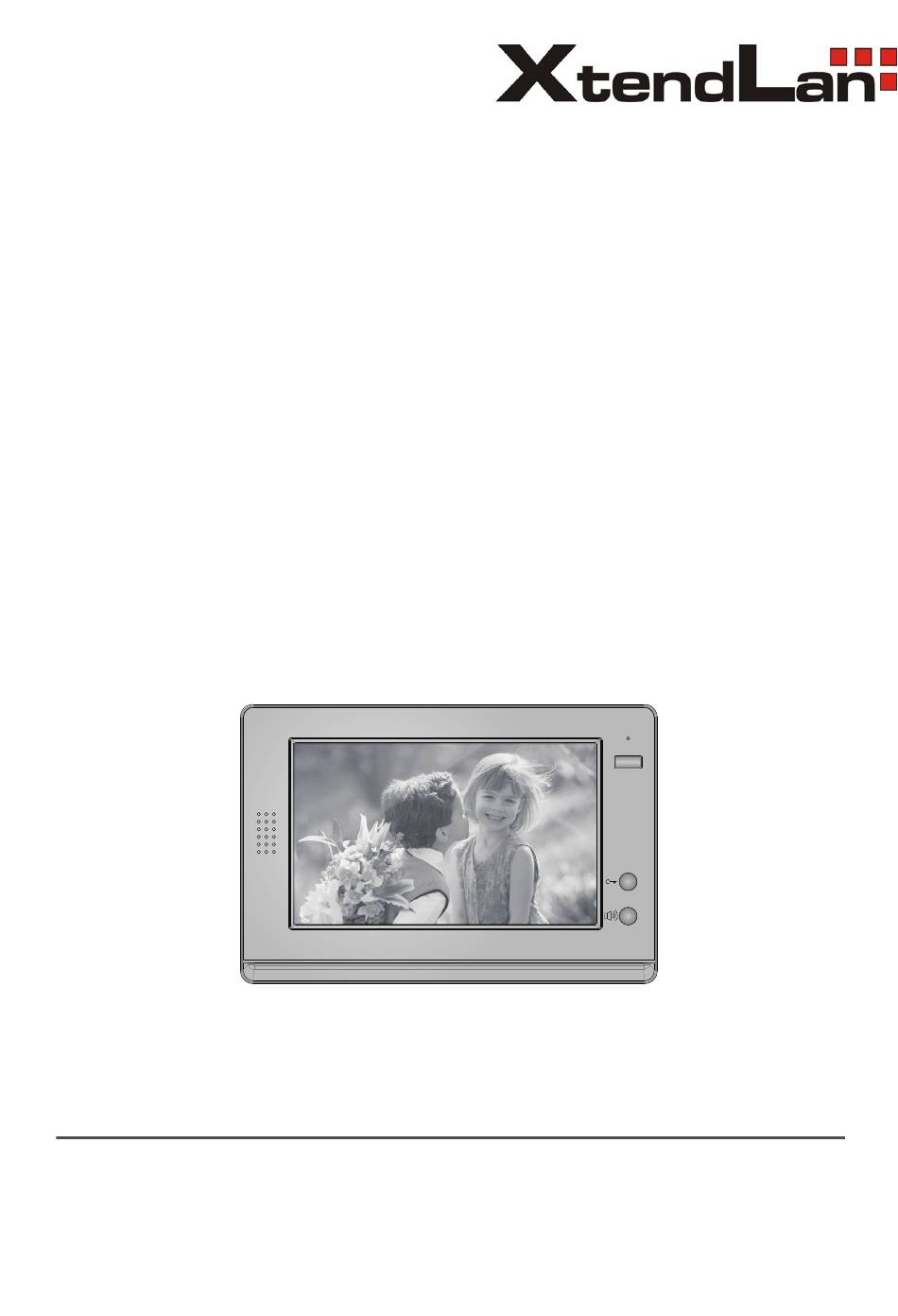

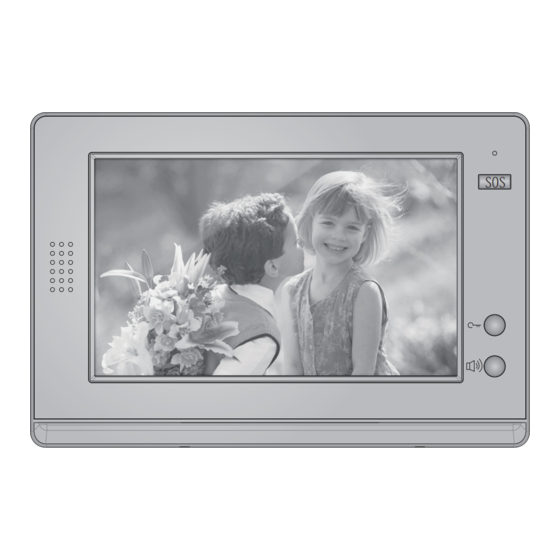

- Page 1 DPM-D2101TMD USER MANUAL ＳＯＳ...
-
Page 2: Table Of Contents
CONTENTS 1. Parts and Functions ............1 2. Monitor Mounting ............. 1 3. Operation Instructions ............2 4. Basic Setup Instructions ............ 4 5. Built-in Memory and SD Card .......... 7 6.Specification ............... 9 Please read this manual carefully before using the ... -
Page 3: Parts And Functions
1. Parts and Functions Microphone Alarm button ＳＯＳ LCD screen （direct call Guard Unit） Manual Monitor Intercom Multimedia Monitor Speaker User Setup Close Memory Album Unlock button Playback ？ 09/30/2010 Thu.16:41 Talk/Mon button About LED indicator Mounting hook Connection port SD card slot with mount box 2. -
Page 4: Operation Instructions
3. Operation Instructions How to Enter Main Menu The Home screen is your starting point for using all the applications on your monitor. You can customize your Home screen to display your logo. ● Touch the screen anywhere in standby mode,a full screen calendar will be shown. ●... - Page 5 Entrance Monitoring Press TALK/MON button on monitor in standby mode,or touch icon on Monitor main menu.the screen will display the view of the Outdoor Station. During monitoring, ＳＯＳ touch icon to get into the Manual Monitor Camera 1 Camera 2 Camera 4 Camera 3 camera switching mode, (or directly touch...
-
Page 6: Basic Setup Instructions
4. Basic Setup Instructions Ring Tone Setting ● Touch icon on main menu User Setup page to enter call tone setting screen,touch ＳＯＳ Door station call tone/intercom call tone/ Carman Going Home Door Station Call Tone door bell call tone,12 pieces ring tones will Ding Dong Congratulate Rhythm of the rain... - Page 7 ＳＯＳ ＳＯＳ Night Ring Night Ring Night Ring Ring Volume Volume Volume Volume Exit&Save Exit&Save Adjust + Adjust + Adjust - Adjust - Exit&Unsave Exit&Unsave Monitor Time Setting ● Enter main menu page,thenTouch icon to enter next page.then Manual Monitor press icon to enter monitor time setting page.
- Page 8 ● Touch icon,a digital Installer setup keypad and installation setting will be showed on screen. Installation settings: ＳＯＳ [0010]#:Remove all remote control ● Input code number by touching the [0011]#:Add remote control [8000]#:Set as master unit 0 [8001]#:Set as slaver unit 1 [8002]#:Set as slaver unit 2 Code Number:[----] [8003]#:Set as slaver unit 3...
-
Page 9: Built-In Memory And Sd Card
5. Built-in Memory and SD Card This Monitor has been equipped with a built-in memory (about 120 MB) together with a SD card reader. Maximum 16 GB SD card can be supported. ＳＯＳ SD card ● The monitor can play photos and pictures. ●... - Page 10 Picture Recording Both Auto-Recording and Manual-Recording 00:03 Talking ＳＯＳ are available.and Auto-Recording is default. Standard Screen If receive a Call , after 3s, the monitor will Unlock Talk record automatically. or you can touch Capture icon to record the visitor's image Capture Recording...
-
Page 11: Specification
Photo Frame Photo Playing Touch icon on main menu to play the photos(must plug in SD card).it can be Album played both manually and automatically,use your fingers to slide right or left on screen to play last/next photo. Playing time setting Touch icon on main menu Multi Media... - Page 12 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
