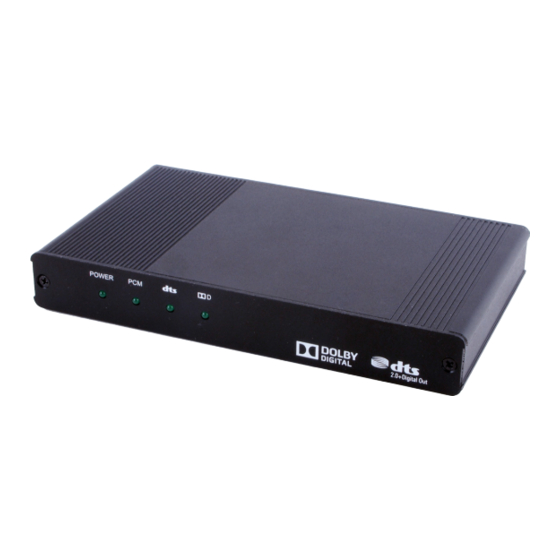

- Page 1 CPRO-SE2DD HDMI Audio Converter with Dolby Digital and ® 2.0+Digital Out Decoder ® Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ...........4 7. Connection Diagram ......5 8. -
Page 5: Introduction
1. INTRODUCTION ® ® The HDMI Audio Converter with Dolby Digital and DTS 2.0+Digital Out Decoder allows the audio signal from an HDMI input to be de- embedded, downmixed and simultaneously output to both digital (optical or coaxial) and analog audio outputs. This unit allows you to utilize an additional audio output such as an AV receiver or set of active speakers, or to further extend the audio signal pathway. -
Page 6: Features
5. FEATURES • Features Dolby Digital Decoder technology • Features DTS 2.0+Digital Out Decoder technology • Integrated digital interpolator filter and Digital-to-Analog Converter (DAC) • Supports LPCM input sampling rates up to 96 kHz and 2CH output at 48 kHz •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER: This LED will illuminate when the device is connected to an active power supply. PCM LED: This LED will illuminate when the input audio source is PCM format. DTS LED: This LED will illuminate when the input audio source is DTS 2.0+Digital Out encoded. -
Page 8: Rear Panel
6.2 Rear Panel OUTPUT HDMI IN HDMI HDMI SPDIF BYPASS/ BYPASS/ SERVICE DC 5V COAX OPTICAL HDMI IN: Connect to an HDMI source device such as a Blu-ray player, Set-top Box or any HDMI equipped source device. HDMI OUTPUT: Connect to an HDMI equipped TV/display or AV receiver for output image or audio display. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply OUTPUT HDMI IN HDMI HDMI SPDIF BYPASS/ BYPASS/ SERVICE DC 5V COAX OPTICAL HDMI Analog Stereo Coaxial Digital Optical Digital Bypass Output Audio Output Audio Output Active Speakers AV Receiver HDTV... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 1×HDMI, 1×USB (Service only) Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 1×R/L (2 RCA) HDMI Cable Length Input: 10m@1080p, 5m@4K2K Output: 10m@1080p, 5m@4K2K Power Supply 5 V/2.6 A DC(US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 11: Video Resolutions
8.2 Video Resolutions HDMI/DVI RESOLUTIONS INPUT OUTPUT 640×480@60/72/75/85 √ √ 720×480@60 √ √ 720×576p@50 √ √ 800×600@56/60/72/75/85 √ √ 1024×768@60/70/75/85 √ √ 1280×720@50/60 √ √ 1280×720p@60 √ √ 1280×768@60/70/75/85 √ √ 1280×800@60 √ √ 1280×1024@60 √ √ 1360×768@60 √ √ 1600×1200@60 √... -
Page 12: Audio Specifications
8.3 Audio Specifications Output T.H.D+N Frequency Output Crosstalk Level (A-Weight) Response HDMI 0 dBFS <0.00001% ±1dBFS >140dB <-160dB HDMI Optical 0 dBFS <0.00001% ±1dBFS >140dB <-160dB Coaxial 0 dBFS <0.00001% ±1dBFS >140dB <-160dB 0dBFS Line-Out 2Vrms +-0.1 <0.006% ±1dB >100dB <-110dB 8.4 Input to Output Audio Formats Audio Output... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 14 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
