Summary of Contents for CYP CPRO-11SI

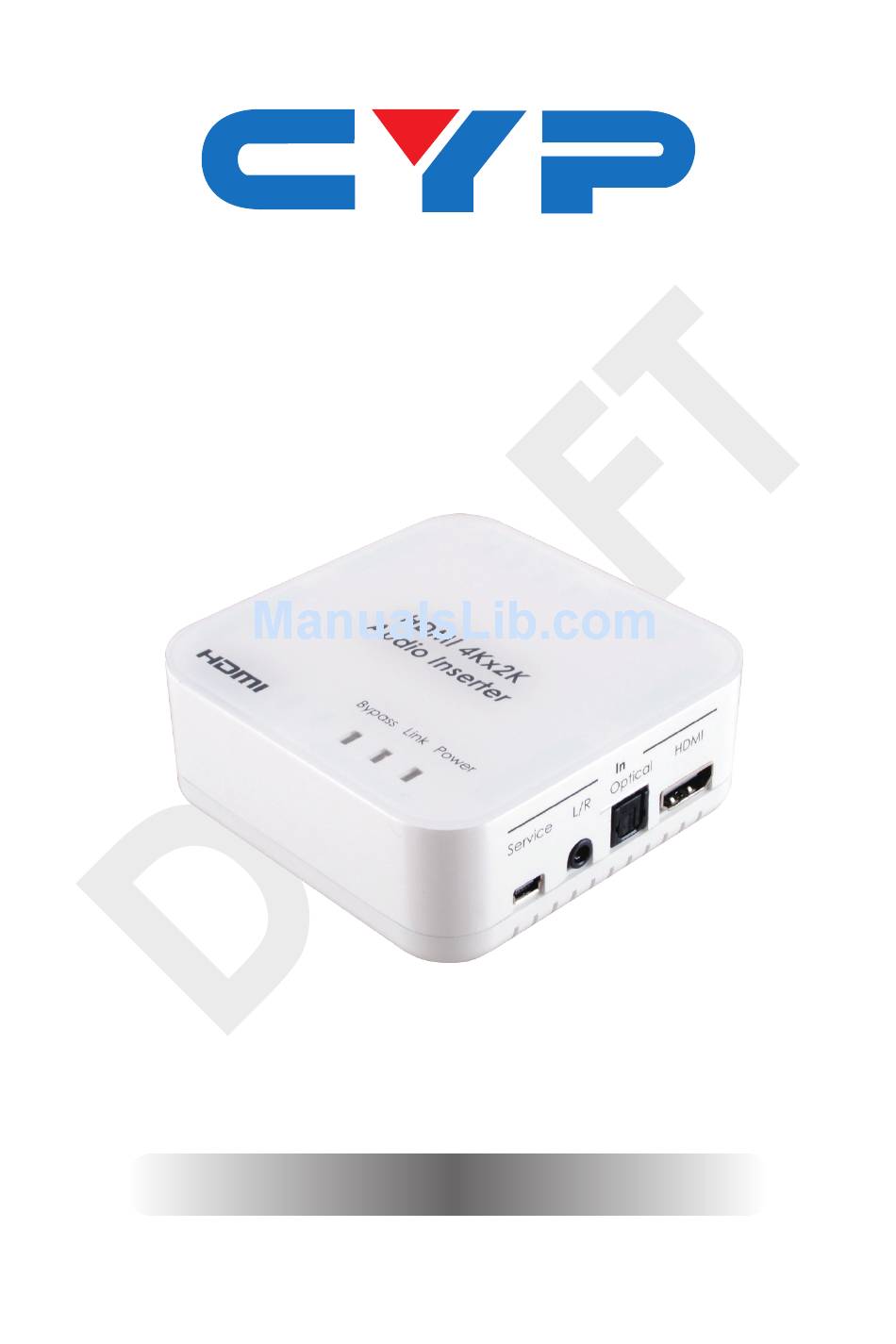

- Page 1 CPRO-11SI HDMI 4Kx2K Audio Inserter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Right Panel ........4 6.3 Left Panel ..........4 6.4 Front Panel ........5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI™ 4K x 2K Audio Inserter lets you insert an external audio signal into your HDMI or DVI (with HDMI to DVI adaptor) signal path. The unit allows you to insert stereo or multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal. -
Page 7: Features
5. FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • Supports HDMI audio sampling rate up to 192 kHz • Supports Optical S/PDIF audio sampling rate up to 48 kHz • Supports external HDMI, Digital or Analog audio signal embeds into HDMI •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel HDMI 4Kx2K Audio Inserter Bypass Link Power LPCM: This LED will illuminate when the input audio is switch to HDMI. Link: This LED will illuminate when input source is connected with HDMI signal. -
Page 9: Right Panel
6.2 Right Panel Service Optical HDMI Service: This port is reserved for firmware update only. L/R In: Connect from audio source equipment such as PC/Laptop or DVD/Blu-ray player with L/R audio signal output. Optical In: Connect from audio source equipment such as AV receiver or DVD player with optical signal output. -
Page 10: Front Panel
6.4 Front Panel DC 5V Optical Power HDMI HDMI/Optical/L/R: Audio in selection allows users to select among 3 of different audio input options. Switch among the original HDMI audio, Digital audio (Optical) and Analog stereo (L/R). Power: Press this button to switch on the device or to set it into standby mode. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop DVD Player Digital Audio Input Optical Blu-ray Player Blu-ray Player HDMI Input Service Optical HDMI HDMI Audio Inserter HDMI Out HDMI Output AV Receiver HDTV or Monitor... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps / 10.2Gbps Input Ports 1 x HDMI, 1 x Optical (Digital Audio), 1 × 3.5mm Phone Jack (L/R), 1 x Mini-USB (service only) Output Port 1 x HDMI HDMI Audio Sampling Rate Up to 192 kHz Optical S/PDIF Audio Sampling Up to 192 kHz Rate... -
Page 13: Acronyms
Relative Humidity 20 ~ 90% RH (non-condensing) Power Consumption 2.37W 9. ACRONYMS ACRONYM COMPLETE TERM 4Kx2K 3840 x 2160 / 4096 x 2160 Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130627 MPM-CPRO11SI...
