Jeff Troy's
0.40-0.55 cu. in. displacement 2-stroke
0.52-0.72 cu. in. displacement 4-stroke
Requires : 4-channel radio w/ 5 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

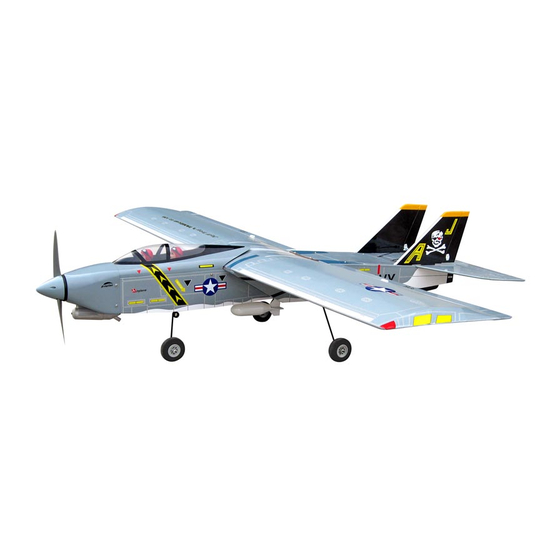

TAMEcat Trainer 40 ARF
Specifications
*Specifications are subject to change without notice.*
69 in / 1760 mm
831 sq in / 53.6 sq dm
5.6 Ib / 2560 g
50 in / 1270 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS Jeff Troy’s TAMEcat Trainer 40 ARF
Summary of Contents for THE WORLD MODELS Jeff Troy’s TAMEcat Trainer 40 ARF
- Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY (ARF) SERIES Manufacturing Co., LTD. MADE IN CHINA...
-
Page 2: Before You Begin
TAMEcat Trainer 40 ARF Jeff Troy’s INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 set 11. SCREW PB2x12mm -- 2 pcs FUEL TUBE Ø6x5mm -- 1 pc. 2. WING JOINER 8x23x205.4mm -- 1 pc. CLEVIS -- 1 pc. 3. SCREW PB2x14mm -- 4 pcs HORN (L) -- 1 set STRAPER -- 2 pcs PUSHROD Ø1.8x260mm w/ Threads (For Elevator) -- 1 pc. - Page 4 Main Wing Aileron Servo Lead Pre-glued Pre-glued Bottom View Main Wing Please dry fit wing joiner into left and right wing to make sure they fit with the proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact.
-
Page 5: Stabilizer & Elevator
Aileron Servos Ø1mm pilot holes for World Models horn are pre-drilled. PB2x14mm Screw Please look for pin-hole marks at under side of control surfaces. Straper Fuel Tube Ø6x5mm PB2x14mm Clevis Fuel Tube Ø6x5mm Pushrod Ø1.8x150mm Bottom View Horn Completed Stabilizer & Elevator Temporary install the main wing, adjust (Stabilizer) leveling of the stabilizer to make is as... -
Page 6: Main Landing Gear
Vertical Fin & Rudder C=C ' D=D ' Pre-glued Bottom View Completed Main Landing Gear Front 4.1mm Collar 4.1mm Collar PA3x12mm Screw 4.1mm Collar Mounting Plate 12x20mm PA3x12mm 3mm Set Screw Completed Bottom View... -
Page 7: Front Landing Gear
Front Landing Gear 4.1mm Collar 3mm Set Screw 4.1mm Collar Front Wheel Pushrod Ø1.6x620mm Front Plastic Tube Bottom View d3xD4x320mm Wheel Ø65mm 3mm Set Screw 3mm Set Screw 4.1mm Collar Front Bomb Completed Bottom View Engine Mount M4x25mm Socket Head Screw d4xD9mm Washer M4x25mm d4xD9mm... -
Page 8: Fuel Tank
Fuel Tank Fuel Tank 320cc Fuel Tank Install Balsa 8x8x101mm 320cc (For Fuel Tank Position Fixing) Rubber Band Rubber Band Engine PM3x25mm Screw Fuel Tank d3xD7mm Washer 320cc M3 Nut Engine PM3x25mm Screw d3xD7mm Washer M3 Nut PM3x25mm Installed Engine Position 108 mm 4.25 in. -
Page 9: Elevator Pushrod
Ø1mm pilot holes for World Models horn are pre-drilled. Elevator Pushrod Please look for pin-hole marks at under side of control surfaces. PB2x12mm Screw Pushrod Ø1.8x260mm PB2x12mm Clevis Fuel Tube Ø6x5mm Horn Bottom View Ø1mm pilot holes for World Models horn are pre-drilled. Rudder Pushrod Please look for pin-hole marks at side of control surfaces. -
Page 10: Radio Equipment
Radio Equipment PWA2.6x12mm Screw Install and arrange the servos as shown in the diagram. Elevator Servo Sponge Battery Nose Gear Pushrod Fuel Tube Fuel Tube Ø6x5mm Ø6x5mm Straper Straper Plywood PWA2.6x12mm 4x170x195.2mm Receiver Rudder Servo Throttle Pushrod Throttle Servo Completed Main Wing M4x40mm Socket Head Screw d4.2xD14.5mm Washer... - Page 11 First insert the grommet to the cowling then apply screw. Cowling & Spinner PWA2.6x12mm Screw PWA2.6x12mm d1.5xD6.5mm Silicon Grommet Please refer to the attached sheet for usage of the d1.5xD6.5mm Silicon Grommet transparent 3D template. Cockpit PM3x16mm Screw Pilot Pilot d3xD7mm Washer PWA2x8mm PM3x16mm...
-
Page 12: Control Throws
Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Rudder 13mm HIGH RATE LOW RATE 13mm Elevator 15mm HIGH RATE LOW RATE 15mm Aileron 12mm HIGH RATE... - Page 13 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 15 F-14 TAMEcat is an ideal airplane for beginners to radio control flying. The .40-size F-14 TAMEcat Trainer ARF is also available from The World Models. There are a few significant differences between that airplane and the EP version you have before you.
- Page 16 Ｐａｔｔｅｒｎ Ｄｕｃｔｅｄ Ｆａｎ Ｆｕｎｆｌｙ Ｗａｒｂｉｒｄｓ Ｓｃａｌｅ Ｅｌｅｃｔｒｉｃ Ｓｐｏｒｔｓ Ｇｌｉｄｅｒ Ｂｏａｔ Ｔｒａｉｎｅｒ Ａｃｃｅｓｓｏｒｉｅｓ Ｃｏｖｅｒｉｎｇ （Ｌｉｇｈｔｅｘ ／ Ｔｏｕｇｈｌｏｎ） The World Models Manufacturing Co., LTD. www.theworldmodels.com A244PO18500906...
