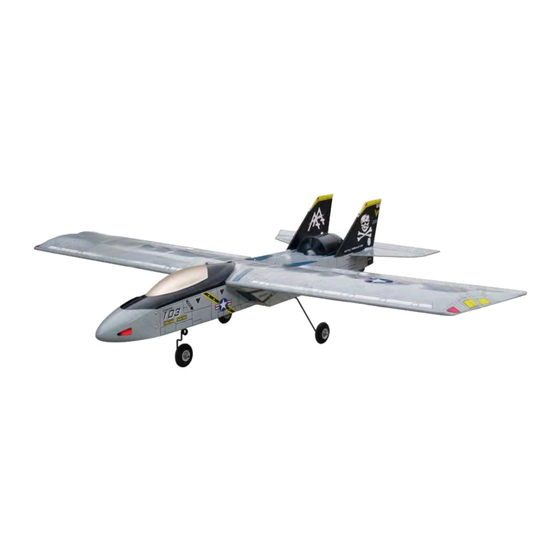

Jeff Troy's TAMEcat DF Trainer
Requires : 4-channel radio w/ 4 micro servos,
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E245SXMPO23901006
Ducted Fan Propulsion Unit PL6800010
and Outrunner Motor KM0283110,
Ducted Fan Booster Cone PL6800011,
30A (burst 35A) brushless ESC,
3 cells 11.1V 15C 2100mAh
Li - Po battery and charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
*Specifications are subject to change without notice.*
Specifications
39.5 in / 1000 mm
273 sq in / 17.6 sq dm
28 oz / 790 g
29.0 in / 730 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS Jeff Troy's TAMEcat DF Trainer
Summary of Contents for THE WORLD MODELS Jeff Troy's TAMEcat DF Trainer
- Page 1 INSTRUCTION MANUAL Jeff Troy's TAMEcat DF Trainer Requires : 4-channel radio w/ 4 micro servos, Ducted Fan Propulsion Unit PL6800010 and Outrunner Motor KM0283110, Ducted Fan Booster Cone PL6800011, 30A (burst 35A) brushless ESC, 3 cells 11.1V 15C 2100mAh Li - Po battery and charger.
- Page 2 Jeff Troy's TAMEcat DF Trainer INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
- Page 3 Parts List 1. MAIN WING -- 1 set 8. SCREW PB2x8mm -- 4 pcs FUEL TUBE d2xD4x4mm -- 2 pcs 2. SCREW PB2x8mm -- 4 pcs CLEVIS -- 2 pcs SCREW PA1.7x8mm -- 8 pcs HORN -- 2 sets STRAPER -- 2 pcs PUSHROD Ø1.4x287mm w/ Threads (For Rudder) -- 1 pair FUEL TUBE d2xD4x4mm -- 4 pcs CLEVIS -- 2 pcs...
- Page 4 Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Ø1mm pilot holes for World Models horn are pre-drilled. Aileron Servos Please look for pin-hole marks at under side of control surfaces. PB2x8mm Screw PA1.7x8mm Fuel Tube...
- Page 5 Stabilizer & Elevator Temporary install the main wing, adjust (Stabilizer) leveling of the stabilizer to make is as parallel to the main wing as possible. Apply instant type CA glue (Main Wing) to both sides of each hinge. *Also refer to step 13 Wing Setting Completed Vertical Fin &...
- Page 6 Front Landing Gear Steering Arm PL4112215 w/ Set Screw 3mm Set Screw 2.6mm Collar 2.6mm Collar 3mm Set Screw 2.6mm Collar 2.6mm Collar 2.6mm Wheel Ø40mm Collar PL3116040 Set Screw 2.6mm Collar 3mm Set Screw Front Bottom View 2.6mm Collar 2.6mm Collar 3mm Set Screw 3mm Set Screw...
-
Page 7: Main Landing Gear
Main Landing Gear Ø1mm pilot holes for World Models Landing Wire Straps are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PWA2.3x8mm Screw Front Landing Wire Straps PWA2.3x8mm 2.6mm Collar PL4114030 2.6mm Collar 2.6mm Collar Wheel Ø40mm PL3116040 3mm Set Screw Bottom View... - Page 8 Ducted Fan Propulsion Unit with 28/31 Motor PM2.5x12mm Screw d3xD7mm Washer PM2.5x12mm d3xD7mm Washer Optional Parts Ducted Fan PL6800010 Center Line Propulsion Unit Make sure TWM logo on ducted fan stay on up side of fuselage. Outrunner Motor 28 / 31 PM2x5mm KM0283110 Ducted Fan...
-
Page 9: Radio Equipment
Radio Equipment Install and arrange the equipment as shown in the diagram. Pushrod Ø1.4x312mm Front w/ Threads (For Elevator) Receiver Elevator Servo Fuel Tube Sponge Battery Tie 180mm Battery Silicon Wire Sponge Straper Pushrod Ø1.2x189mm (For Front Landing Gear) Pushrod Ø1.4x287mm Rudder Servo w/ Threads (For Rudder) Cowling... - Page 10 Main Wing PM2.5x25mm Screw d2.5xD8mm Washer PVC Plate 1x17x64mm (Wing Protection) d2.5xD8mm PM2.5x25mm Washer PVC Plate 1x17x64mm (Wing Protection) PM2.5x25mm d2.5xD8mm Washer Completed Cockpit Completed E245SXMPO23901006...
-
Page 11: Control Throws
Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Rudder HIGH RATE LOW RATE... -
Page 12: Important Safety Precautions
KM0283110 Outrunner Motor is specially designed to be powered by Jeff Troy's TAMEcat DF Trainer # Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running propeller. Extreme caution should be exercised when working with electric powered models. Make sure the propeller is cleared of all objects, especially your hands before connecting the battery to the model. - Page 13 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
- Page 14 Optional Parts ACCESSORIES) Ducted Fan Propulsion Unit without Motor Micro Servo 2 - Pin EZ Connector Code No SV2031 Code No. Size Package Code No. Size Package PL6800010 1 set KP0011210 40A Max. Current 1 set -ideal for electric models -Operating Voltage / Current : 12V / 30A (35A Burst) 3 - Pin EZ Connector...
- Page 15 F-14 TAMEcat is an ideal airplane for beginners to radio control flying. The .40-size F-14 TAMEcat Trainer ARF is also available from The World Models. There are a few significant differences between that airplane and the EP version you have before you.
- Page 16 E245SXMPO23901006...
