X632

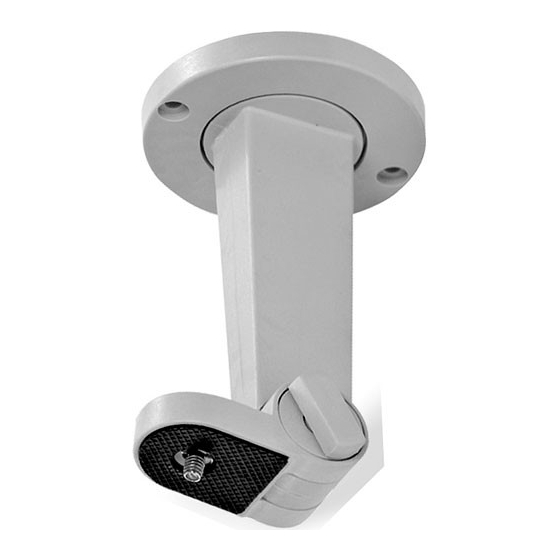

MODEL V800ACM
LIGHT-DUTY ADJUSTABLE CEILING MOUNT
Copyright © 2000 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 1-800-287-1207 WEB: www.vicon-cctv.com
Vicon part no. 8006-8632-01-01
Rev 800 Section 7
Advertisement
Table of Contents
Related Manuals for Vicon V800ACM
Summary of Contents for Vicon V800ACM
- Page 1 Copyright © 2000 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 INFOFAX: 1-800-287-1207 WEB: www.vicon-cctv.com...
-
Page 5: Unpacking And Inspection
The body of the mount can be rotated a full 360° to adjust horizontal positioning. Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier's responsibility to deliver the equipment in the same condition as it left the factory. Inspection For Visible Damage Immediately inspect the cartons upon delivery. -
Page 6: Maintenance
4. If readjusting the camera position in tilt is necessary, loosen the adjusting knob and reposition the camera. Do not force the camera. Figure 1 Outline Drawing/Installation Diagram Maintenance The V800ACM requires no maintenance. 2 • • Maintenance X632 Rev 800 V800ACM Ceiling Mount... -
Page 7: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 9: Technical Information
Indoor. Load Rating: 7.5 lb (3.4 kg). Dimensions: Height: 6.2 in. (157 mm). Width: 3.5 in. (89 mm). Weight: 0.5 lb (0.2 kg). Construction: High-impact plastic. Finish: Light gray. Technical Information • • 3 X632 Rev 800 V800ACM Ceiling Mount...
