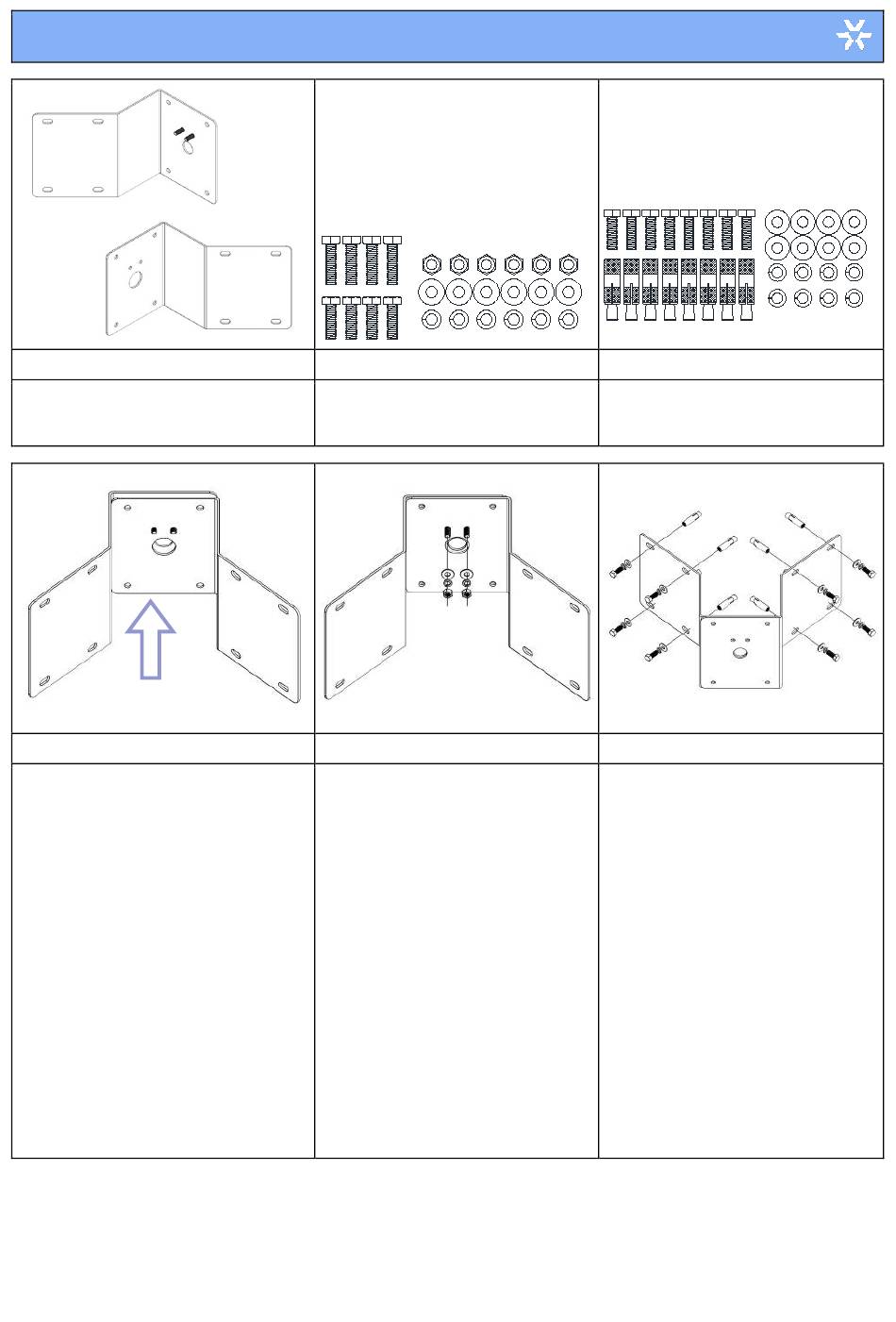

Vicon V1001-WM Quick Manual

Quick Guide: Installation of V1001-CM with V1001-WM
Package Contents
The corner mount is shipped as two
90° angle parts.
Step 1
Align the holes of the two corner
parts and insert the integral posts
on one piece through the holes in
second piece to assemble the
mount.
Vicon part number 8009-8343-00-00
Vicon and its logo are registered trademarks of Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
4 each - M8 screw-
25mm/30mm
6 - M8 nut
6 - M8 spring washer
6 - M8 washer
Use Screw Bag A for steps 2 and 4. Use Screw Bag B for step 3.
Step 2
Secure with M8 nut, M8 spring
washer, M8 washer, tightening
clockwise.
8 - 5/16 anchor
8 - 5/16 ¾ bolt
8 - M8 washer
8 - M8 spring washer
Step 3
Using the mount as a template,
mark and drill mounting holes in
the wall; tap anchors into the
holes. Secure the corner mount on
the wall.
