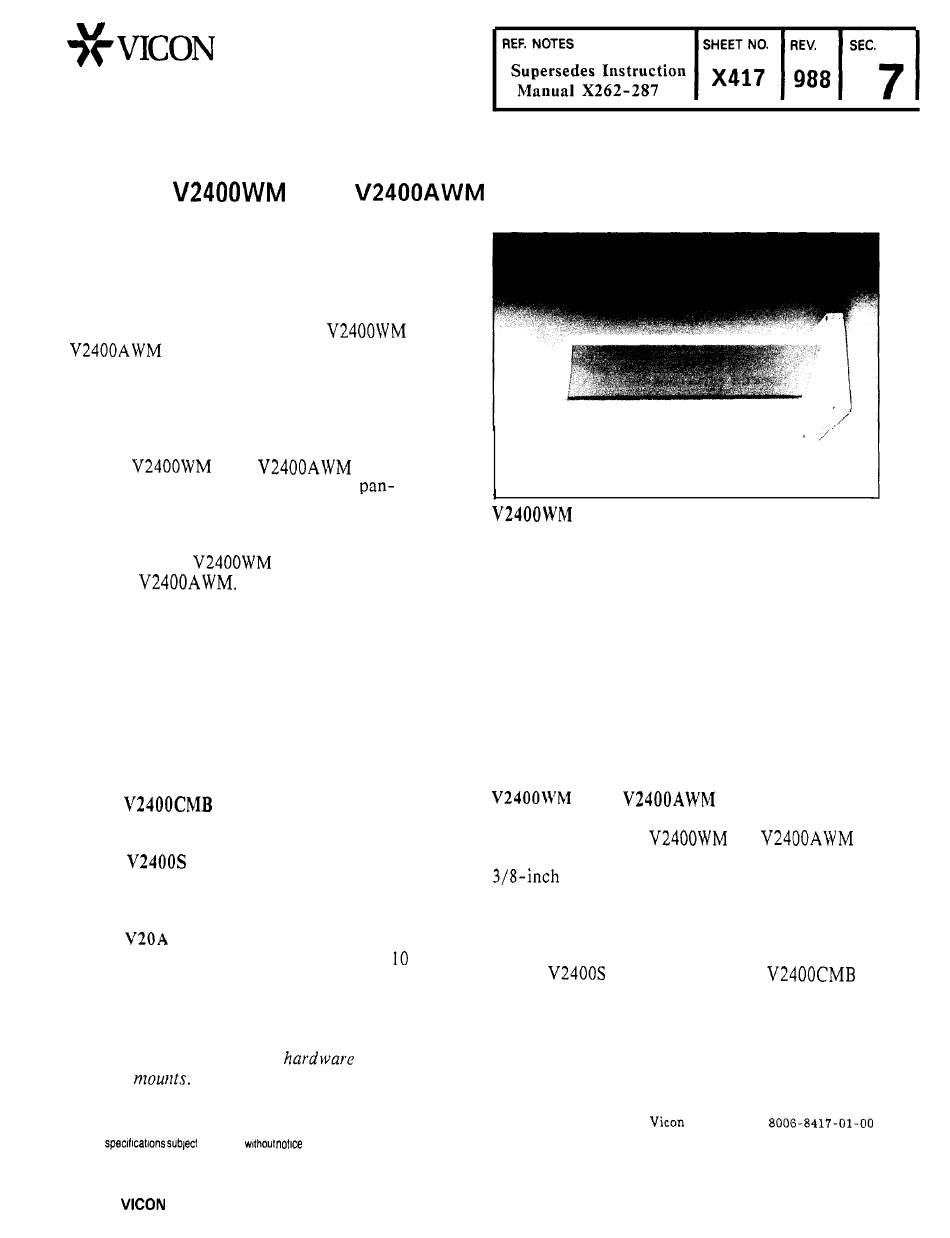

INSTRUCTIONS FOR
INSTALLATION AND OPERATION
MODELS V2400WM AND V2400AWM HEAVY-DUTY WALL MOUNTS
GENERAL
SCOPE
The information in this instruction manual
covers the installation of Models V2400WM and
Associated Equipment and Accessories.
INTRODUCTION
Models V2400WM and V2400AWM Heavy-Duty
Wall Mounts are designed to support pan-
and-tilt drives, scanners, camera/lens
systems, and environmental housings with total
camera station load ratings of up to 200 pounds
(91 kg) for the V2400WM and 100 pounds (45 kg)
for the V2400AWM.
units are constructed of weatherproof aluminum
or corrosion-protected steel.
ASSOCIATED EQUIPMENT
AND ACCESSORIES
MOUNTING
ACCESSORIES
Model V2400CMB Corner Mounting Bracket:
For corner mounting capabilities.
Model V24OOS
Support Strut:
added strength for heavy loads. Can be used
alone or with corner mounting bracket.
Model V20A Pole Mounting Adapter:
Accommodates pole diameters from 4 to 10
inches (10.2 cm to 25.4 cm).
INSTALLATION
NOTE: Use stainless steel hardwase
outdoor- mounts.
Product specifications sub@ to change wthout notice
INDUSTRIES INC.
These industrial, outdoor
Provides
for all
525 BROAD HOLLOW ROAD, MELVILLE, N.Y. 11747 TEL: (516) 293-2200 TELEX: 144581
TOLL FREE: 800-645-9116
GENERAL INSTRUCTIONS
Bolts should preferably extend through the
structure with nuts and washers used on the
opposite side. Studs should be either
anchored in concrete or welded to steel. If
the mount is to be attached to a blind
structure, make certain that the fasteners
used have a minimum pull-out strength of 1500
pounds each. (Never use lag screws in the end
grain of wood.)
To install either the V2400WM or V2400AWM Wall
Mount, secure the base to the wall with four
lag
screws or hex bolts (or studs).
See Figure 1.
When the mounting surface does not provide
adequate strength for the wall mount, use
Model V24OOS Support Strut. The V2400CMB
Corner Mounting Bracket is available for
corner installations. See Figure 2.
(OUTSIDE OF NEW YORK)
part number 8OOG-8417-01-00
