Vicon VM61514-5-MM Installation & Operation Manual

Monitor mounts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
X984-03-00

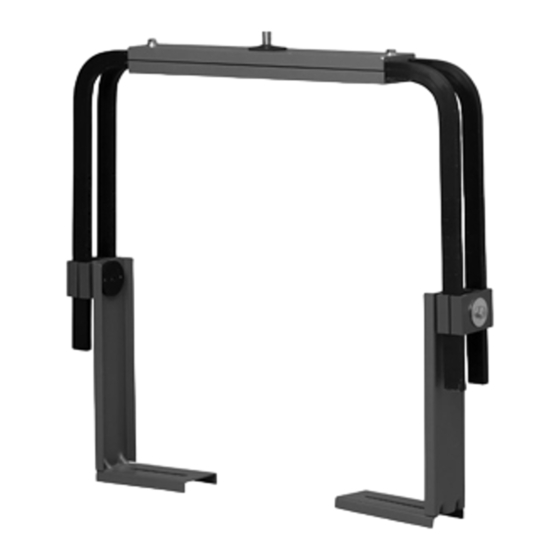

VM61514-5-MM AND VM621-5-MM
MONITOR MOUNTS
Copyright © 2005 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489-566300
WEB: www.vicon-cctv.com
Vicon part number 8006-8984-03-00
Section 6 Rev 1105

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM61514-5-MM and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon VM61514-5-MM

Summary of Contents for Vicon VM61514-5-MM

  • Page 1 Copyright © 2005 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116...
  • Page 5 V1501WM Wall Mounting Adapter or the V1502CA Ceiling Mounting Adapter, respectively. The VM61514-5-MM is used to mount the VM614-3 and VM615-5 monitors. The VM621-5-MM is designed for the VM621-5 monitor. The monitor mounts include all the hardware required for installation.

  • Page 6: Installation

    Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then obtain the carrier’s agent signature and file a damage claim as soon as possible.
  • Page 7 Installing the V1501WM The V1501WM is required for wall mounting the monitor mounts. Be sure the area behind the wall of the selected location is clear of obstacles such as steel beams, headers, pipes, electrical wiring, etc. that would interfere with the installation. To mount the V1501WM, proceed as follows. 1.
  • Page 8 Installing the V1502CA The V1502CA is required for mounting the monitor mounts to the ceiling. Be sure the area directly above the selected location is clear of obstacles such as steel beams, headers, pipes, electrical wiring, etc. that would interfere with the installation. The V1502CA consists of a flanged ceiling attachment and a mount coupling. Both of these pieces are threaded with 1-1/2-inch tapered pipe thread.
  • Page 9 Installing the Monitor Mounts The monitor mounting U-channels are taped to the sides or bottom of the unit for shipping. Remove the channels. Perform the following procedure. Refer to Figure 3. 1. Turn the monitor over on a clean work space. 2.
  • Page 10 7. Adjust the width of the monitor mount by slightly loosening the top mount bolts and sliding the side arms out far enough to accommodate the monitor. Do not retighten at this time. 8. To adjust the vertical opening, unscrew one of the pivot blocks (Figure 4) and remove the outer pivot block half.
  • Page 11 Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 12: Technical Information

    16.4 lb (7.4 kg). Construction: Aluminum and steel. Finish: Dark gray enamel and black. Monitor Compatibility: See table below. Monitor Compatibility Monitor Mount Monitor Compatibility VM61514-5-MM VM614-3, VM615-5 VM621-5-MM VM621-5 8 • Technical Information X984-03-00 Rev 1105 Monitor Mounting Kits...

  • Page 13: Vicon Standard Equipment Warranty

    Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion.

  • Page 14: Corporate Headquarters

    Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office Planet II - Unit E...

This manual is also suitable for:

Vm621-5-mm
