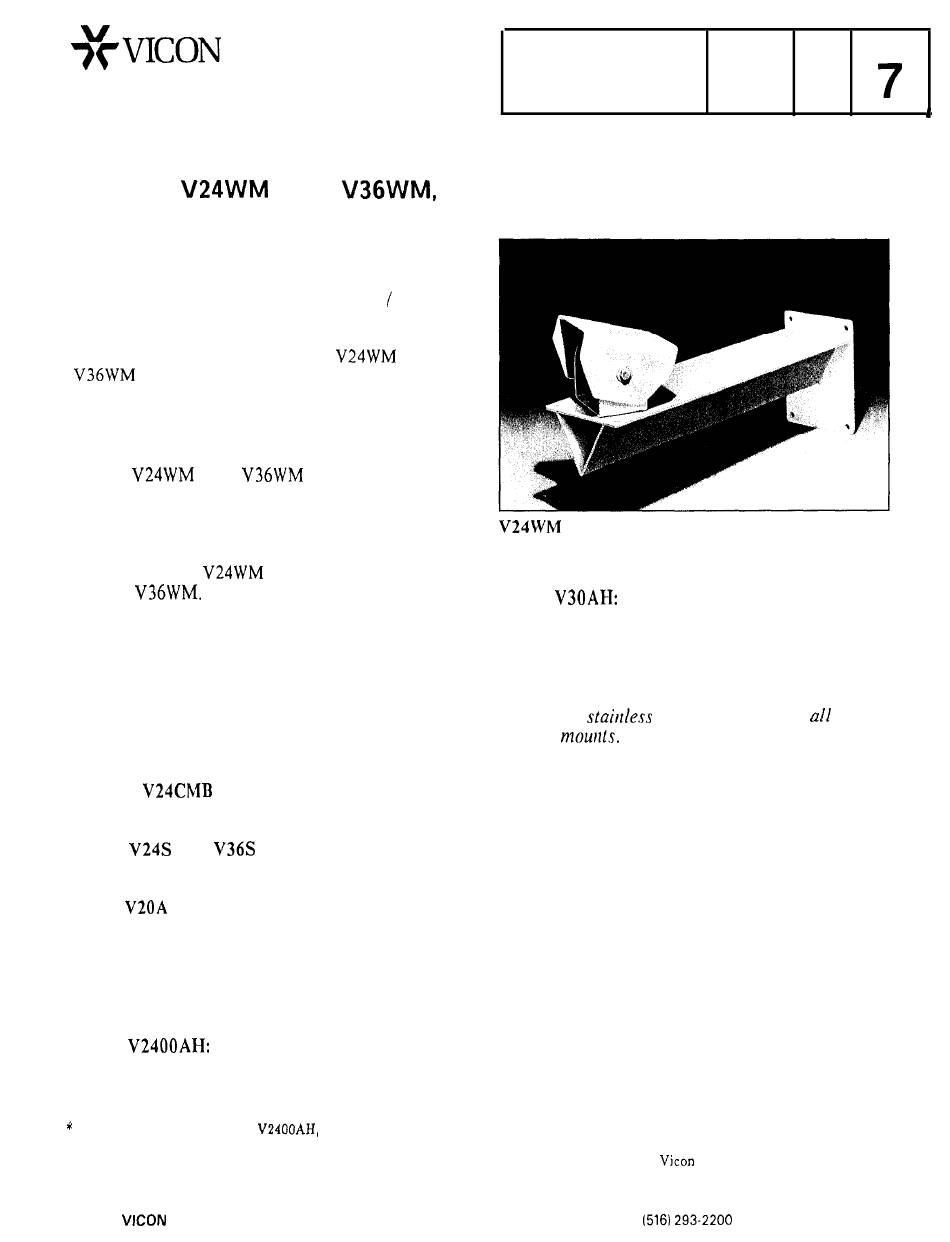

INSTRUCTIONS FOR
INSTALLATION AND OPERATION
MODELS V24WM AND V36WM, HEAVY-DUTY WALL MOUNTS
GENERAL
SCOPE
The information in this instruction manual
covers the installation of Models V24WM and
their Associated Equipment and Accessories.
INTRODUCTION

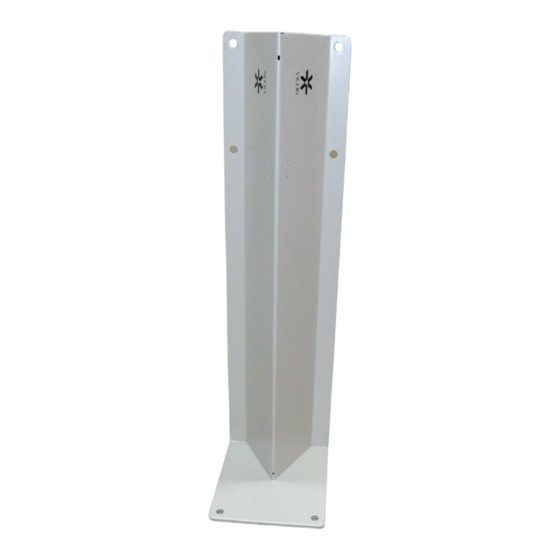

Models V24WM and V36WM Heavy-Duty Wall
Mounts are designed to support pan-and-tilt
drives, scanners, camera/lens systems, and
environmental housings with total camera
station load ratings of up to 200 pounds
(91 kg)* for the V24WM and 130 pounds (59 kg)
for the V36WM. These industrial, outdoor units
are constructed of corrosion-protected steel.
ASSOCIATED EQUIPMENT
AND ACCESSORIES
MOUNTING ACCESSORIES
Model
corner mounting capabilities.
Models V24S and V36S Support Struts:
Provide added strength for heavy loads.
Model V2OA Pole Mounting Adapter:
Accommodates pole diameters from four to
inches (10.2 cm to 25.4 cm). See instruction
manual X532.
ADJUSTABLE HEADS
Model V2400AH:
Provides fixed heavy-duty
wall mounts with repositioning capabilities.
Product specifications subject
For
10
load rating reduced to 100 lb (45.4 kg).
to change without notice.
TOLL FREE: 800-645-9116 (OUTSIDE OF NEW YORK)
REF. NOTES
Supersedes X262-287
Model V30AH: Provides extra support for
the heaviest loads.
INSTALLATION
Note: U steel hardware for
SC
outdoor mounls.
GENERAL INSTRUCTIONS
Bolts should preferably extend through the
structure with nuts and washers used on the
opposite side. Studs should be either
anchored in concrete or welded to steel. If
the mount is to be attached to a blind
structure, make certain that the fasteners
used have a minimum pull-out strength of
1500 lb each. (Never use lag screws in the
end grain of wood.)
SHEET NO. REV. SEC.
X605 488
