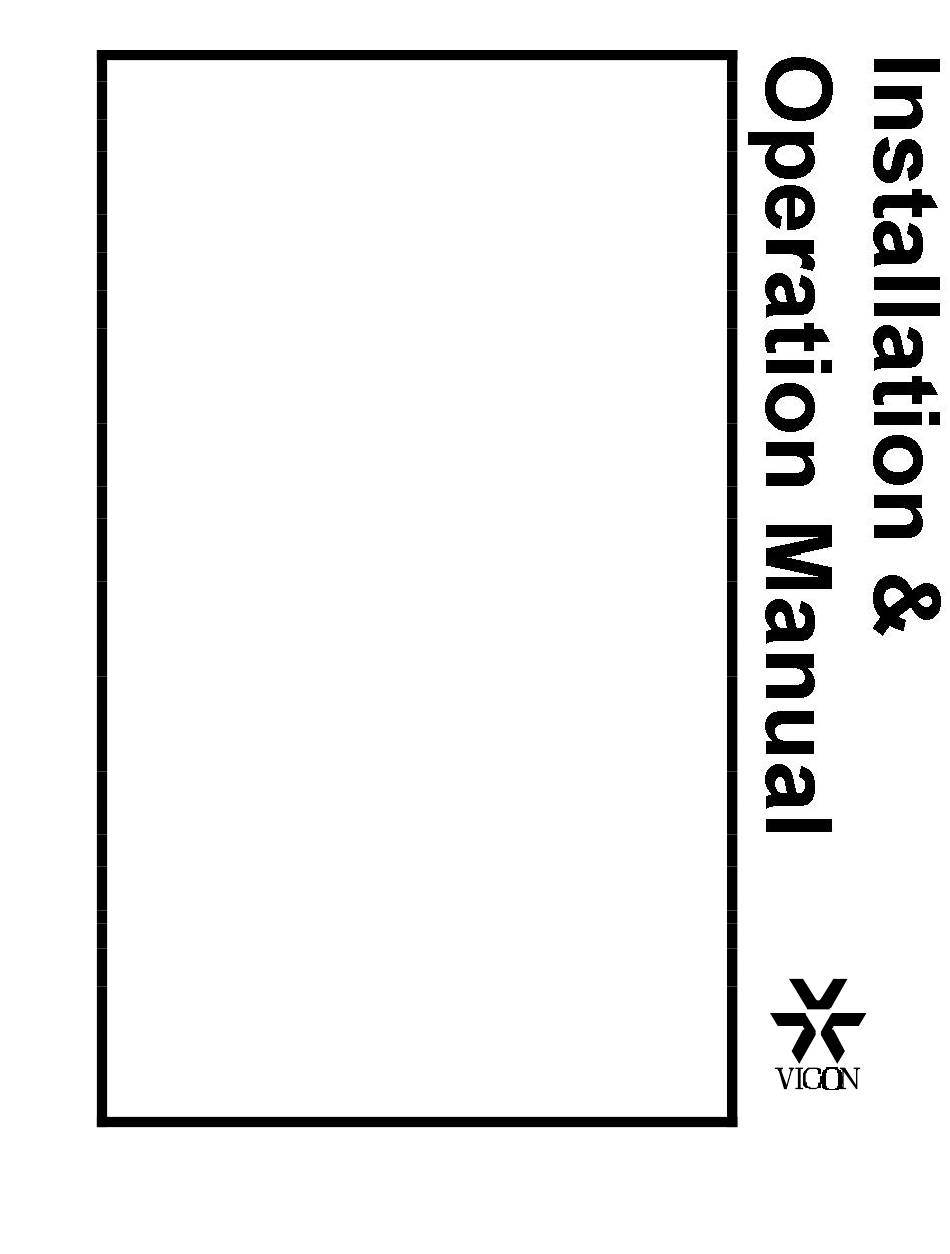

X515
MODELS V10AH, V1000AH, V1600AH,
V2400AH AND V30AH
ADJUSTABLE MOUNTING HEADS
Copyright © 1998 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TELEPHONE: 516-952-CCTV (2288) FACSIMILE: 516-951-CCTV (2288)
TOLL FREE: 800-645-9116 UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207
Vicon part number 8006-8515-01-00
Rev 1298 Section 7
Advertisement
Table of Contents
Related Manuals for Vicon V10AH
Summary of Contents for Vicon V10AH
- Page 1 Copyright © 1998 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TELEPHONE: 516-952-CCTV (2288) FACSIMILE: 516-951-CCTV (2288)
-
Page 5: Table Of Contents
Contents Introduction ............................1 Installation............................3 Installing the V10AH..........................3 Installing the V1000AH ......................... 3 Installing the V1600AH ......................... 4 Installation on the V1600WM....................... 4 Installation on the V14LCM Mount ......................5 Installing the V2400AH ......................... 6 Installing the V30AH..........................7 Shipping Instructions........................ - Page 6 List of Figures Figure 1 V1000AH Installation ..........................4 Figure 2 Installation of the V1600AH on V1600WM....................5 Figure 3 Installation of V1600AH (for V14LCM) and V2400AH................. 6 Figure 4 Installation of V30AH..........................7 ii • • List of Figures X515 Rev 1298 Adjustable Mounting Heads...
-
Page 7: Introduction
Vicon mounts. The use of adjustable heads affects the load rating of the mount. Refer to the instruction manual for the specific mount. Refer to Table 1 for compatibility. The V10AH, V1000AH, V1600AH, V2400AH, and V30AH Adjustable Heads do not require any maintenance. If the equipment must be returned for repair, follow the Shipping Instructions at the end of this manual. - Page 8 NOTES 2 • • Introduction X515 Rev 1298 Adjustable Mounting Heads...
-
Page 9: Installation
The V10AH has a 1/4-20 x 9/32-inch (0.7 cm) full threaded hole in its base. When being used on a light-duty mount, simply screw the adjustable head onto the mount. For standalone installations, install a lag bolt of appropriate length at the installation location and screw the adjustable head onto the bolt. -
Page 10: Installing The V1600Ah
5. To adjust the camera/housing position, loosen the hex-head mounting bolt sufficiently to allow the camera/housing to be rotated and angled up or down to cover the exact scene to be observed. Retighten the mounting bolt. Figure 1 V1000AH Installation Installing the V1600AH The V1600AH consists of three parts, the circular base, the mounting platform, and the clamp, plus related mounting hardware, including a 1/4-20 x 2-1/2 inch stainless steel hex-head bolt, a flat washer, and a 1/4-20... -
Page 11: Installation On The V14Lcm Mount
3. Place the V1600AH mounting plate with the inserted clamp onto the V1600AH base. Slide the washer onto the 1/4-20 hex bolt and insert the threaded end into the bottom of the V1600WM, upwards through the hole in the center of the mount. Place the hex nut on the bolt at the top of the clamp and hand tighten, followed by an additional turn to lock. -
Page 12: Installing The V2400Ah
2. Slide the circular base onto the bolt so that the curved recess of the base mates properly with the curved surfaces of the platform. 3. The square mounting plate at each end of the V14LCM has a 1/4-20 threaded hole located in the center of the plate. -
Page 13: Installing The V30Ah
3. Align the mount in the desired direction. Thread the bolt into the appropriate threaded hole in the mount. Tighten the bolt finger tight followed by an additional 1/2 turn. Caution: Further tightening could damage the unit. Overtightening is not necessary. 4. -
Page 14: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 15: Technical Information
Technical Information Table 2 Technical Data Load Model Rating Number Construction/Finish lb (kg) Application Rotation/Tilt V10AH Die-cast zinc/polished chrome 20 (9.1) Indoor 360°/90° V1000AH Die-cast zinc/matte chrome 25 (11) Indoor 360°/60° V1600AH Die-cast aluminum/gray enamel 60 (27) Outdoor 360°/60° V2400AH Die-cast aluminum/gray enamel 100 (45.4)
