POWERLINE 11 series UPS – Instruction Manual
REAR PANEL

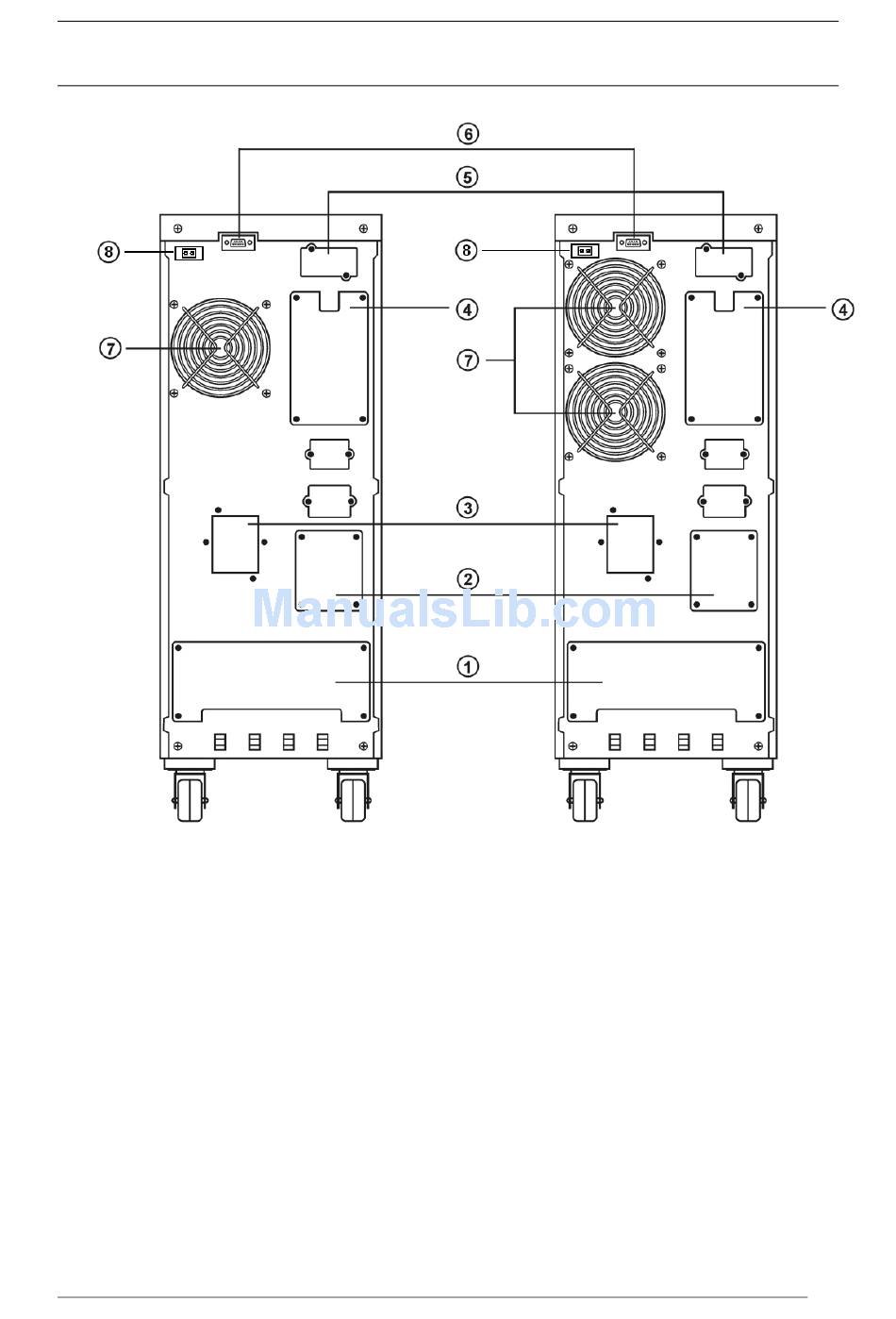

Rear panel view of POWERLINE 6-11 and POWERLINE 10-11 back-ups
1 – Cover of the power supply and receiver grid connections
2 – Cover of the servicing BYPASS switch
3 – Input safeguard
4 – Parallel port (optional)
5 – Expansion card (optional)
6 – RS232 communications port
7 – Fans
8 – EPO connector
6
www.ever.eu
2011/07/22
