CDM-740 Advanced Satellite Modem
Ethernet Management
6.5.4.7.3 Statistics | GE-1 and GE-2 Pages
The 'Statistics | GE-1' and 'Statistics | GE-2' pages (Figure 6-14) provide the user with read-
only status windows pertaining to the aggregate operational statistics for the unit's two
10/100/1000 BaseT Gigabit Ethernet traffic ports.
Information is provided on each page as follows:
Total Pkts Tx: Total number of packets transmitted.
Total Pkts Rx: Total number of packets received.
UC Pkts Tx: Unicast packets transmitted.
UC Pkts Rx: Unicast packets received.
MC Pkts Tx: Multicast packets transmitted.
MC Pkts Rx: Multicast packets received.

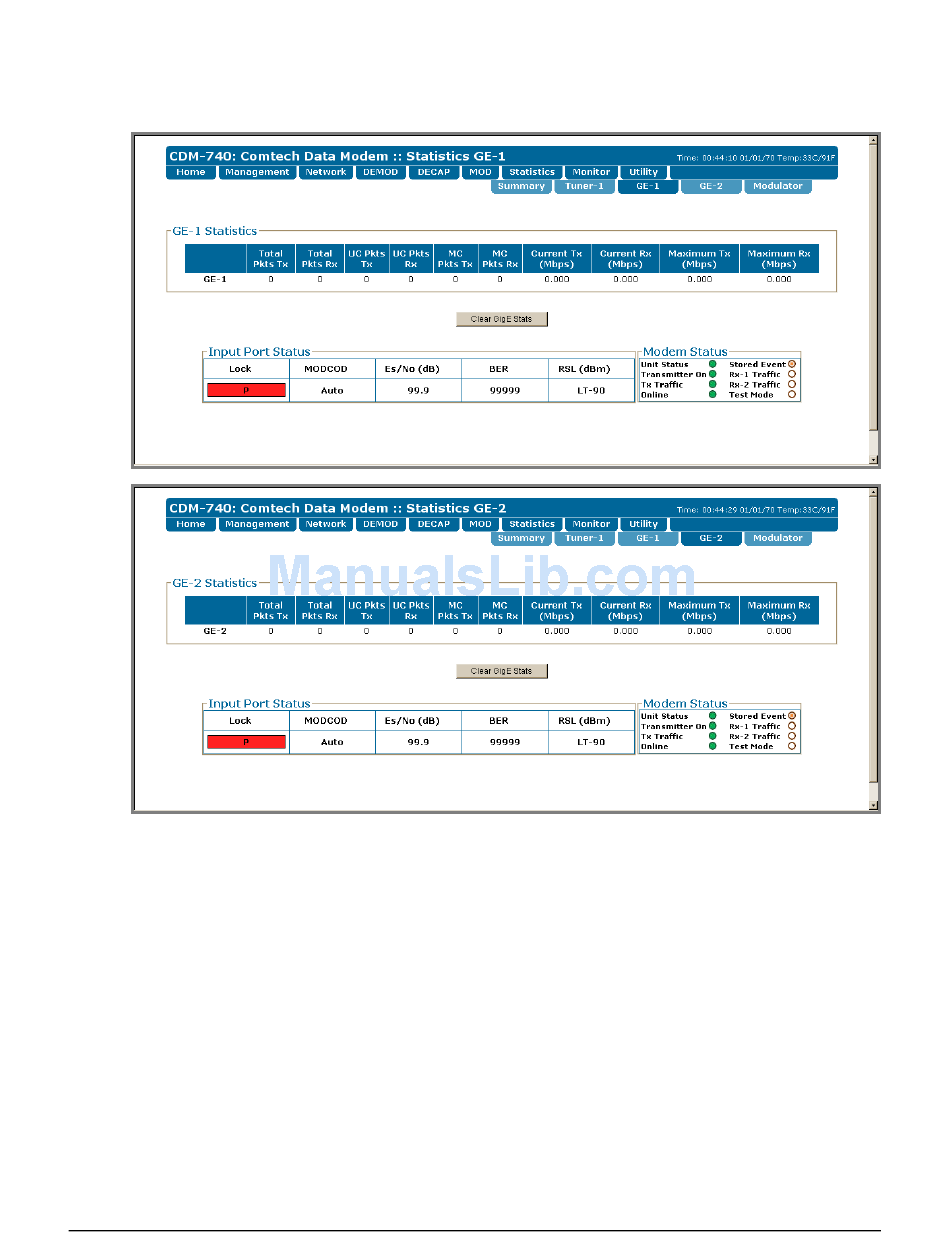

Figure 6-14. Statistics | GE-1 and GE-2 pages

6–25
Revision 0
MN-CDM740
