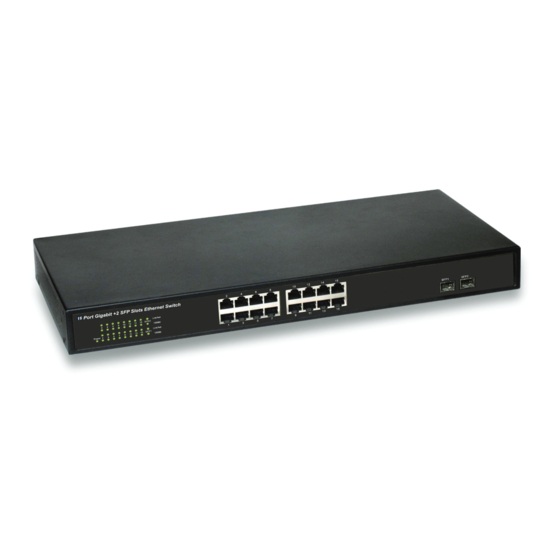

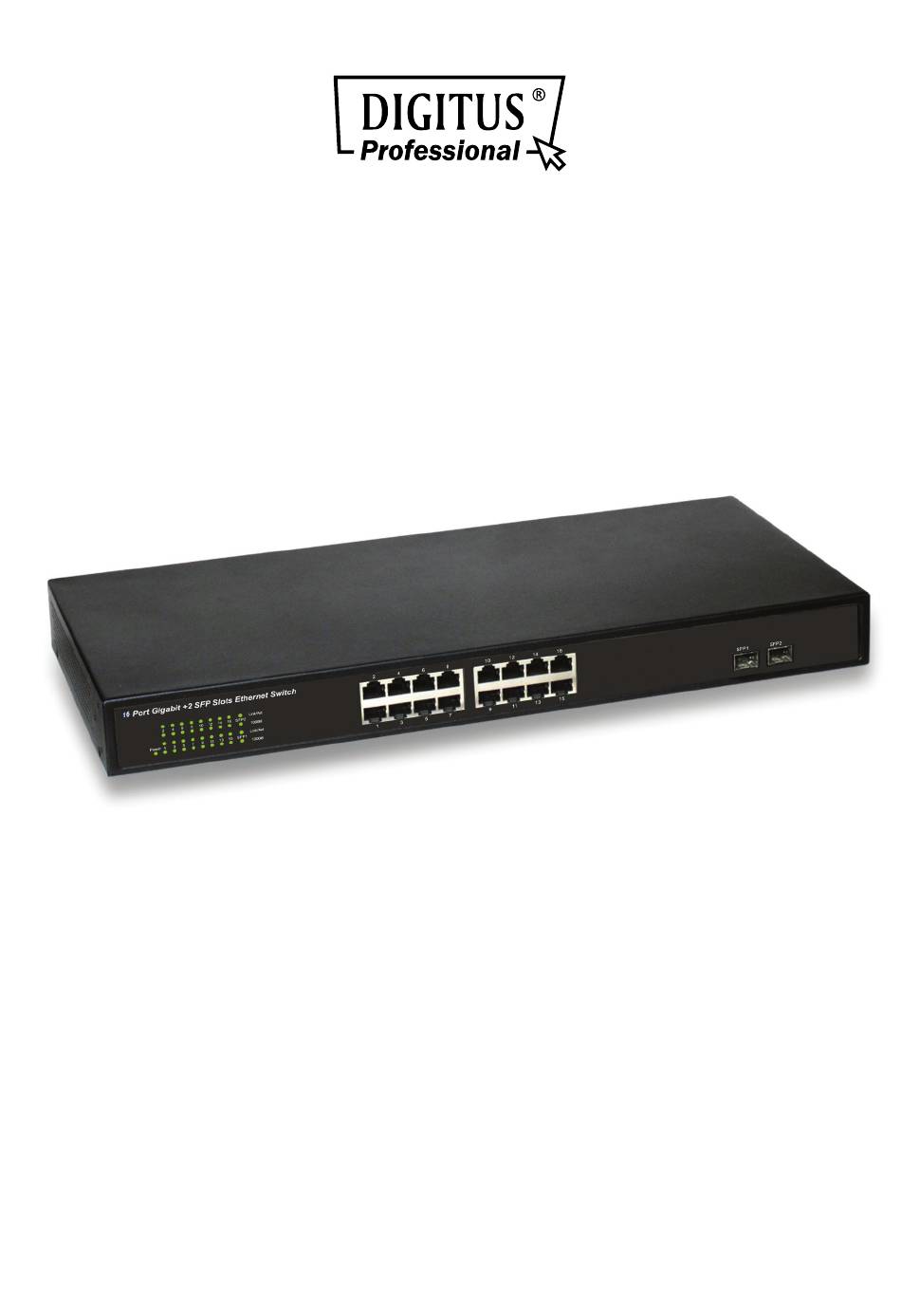

- Page 1 16-PORT GIGABIT + 2 SFP ETHERNET SWITCH User Manual DN-80100...
-
Page 2: Chapter 1 Product Introduction
Chapter 1 Product Introduction Congratulations on your purchasing of the Gigabit Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product 1.1 Product Overview 16port 10/100/1000M + 2SFP Ethernet Switch provides the seamless network connection. This device integrates 1000Mbps Gigabit Ethernet,100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. -
Page 3: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of series of LED indicators,16 10/100/1000Mbps RJ-45 ports and 2 SFP ports a shown as below. Figure 1 - Front Panel 10/100/1000Mbps RJ-45 ports (1~16): Designed to connect to the device with a bandwidth of 10Mbps,100Mbps or 1000Mbps. -
Page 4: Rear Panel
The following chart shows the LED indicators of the Switch along with explanation of each indicator. COLOR STATUS STATUS DESCRIPTION Power On Power Green Power off Connect to the port Disconnect to the port Link/Act Green Flashing Sending or receiving data A 1000Mbps device is connected to the port 1000M... -
Page 5: Chapter 3 Installing And Connecting The Switch
Chapter 3 Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 6: Connect Computer (Nic) To The Switch
use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. 3.1.3 Power on the Switch The Switch is powered on by the AC 100-240V 50/60Hz internal high-performance power supply. Please follow the next tips to connect: AC Electrical Outlet: It is recommended to use single-phase three-wire receptacle with neutral outlet or multifunctional computer professional receptacle. -
Page 7: Appendix: Technical Specifications
Appendix: Technical Specifications IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, Standards IEEE802.3az 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω (maximum 100m) Network Media (Cable) 100Base-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) Number of Ports 16 x 10/100/1000Mbps Auto-Negotiation ports Link/Act/speed...
