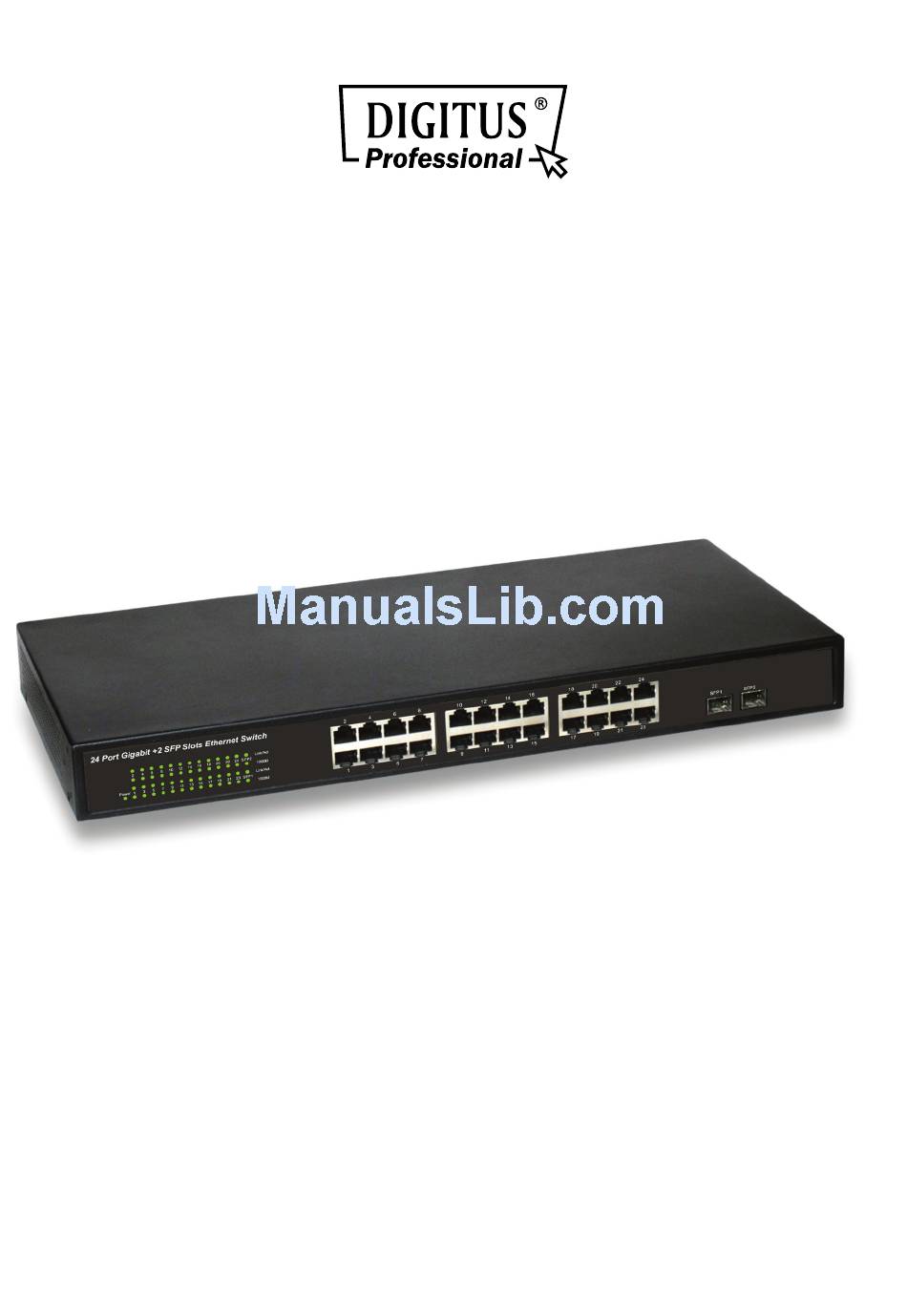

- Page 1 24-Port 10/100/1000Mbps + 2 SFP Green Ethernet Switch Manual DN-80110...
- Page 2 Description DN-80110 24port 10/100/1000M + 2SFP Slots Ethernet Switch provides the seamless network connection. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. The Switch with a low-cost, easy-to-use, high performance upgrades your old network to a 1000Mbps Gigabit network.
-
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction Congratulations on your purchasing of the Gigabit Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product . 1.1 Product Overview The 24-port Gigabit + 2 SFP Slots Ethernet Switch provides the seamless network connection. -
Page 4: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of series of LED indicators, 24 10/100/1000Mbps RJ-45 ports and 2 SFP ports a shown as below. Figure 1 - Front Panel 10/100/1000Mbps RJ-45 ports (1~24): Designed to connect to the device with a bandwidth of 10Mbps,100Mbps or 1000Mbps. -
Page 5: Rear Panel
2.2 Rear Panel The rear panel of the Switch contains AC power connector COLOR STATUS STATUS DESCRIPTION Power On Power Green Power off Connect to the port Link/Act Disconnect to the port Green Flashing Sending or receiving data A 1000Mbps device is connected to the port 1000M A 10/100Mbps device is connected... -
Page 6: Chapter 3 Installing And Connecting The Switch
Chapter 3 Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 7: Rack-Mountable Installation In 19-Inch Cabinet
3.1.2 Rack-mountable Installation in 19-inch Cabinet The Switch can be mounted in an EIA standard-sized, 19-inch rack, which can be placed in a wiring closet with other equipment. To install the Switch, please follow these steps: a. Attach the mounting brackets on the Switch’s side panels (one on each side) and secure them with the screws provided. -
Page 8: Connect Computer (Nic) To The Switch
100 meters. Once the connection is OK and the devices are power on normally, the Link/ACT status indicator lights corresponding ports of the Switch. Specification Model DN-80110 Chipset RTL8382L+RTL8218 IEEE 802.3, IEEE 802.3u, IEEE802.3ab, Standards IEEE802.3x, IEEE802.3az...
