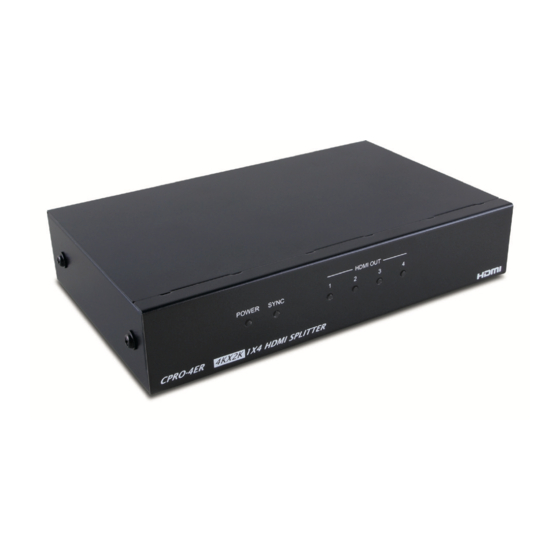

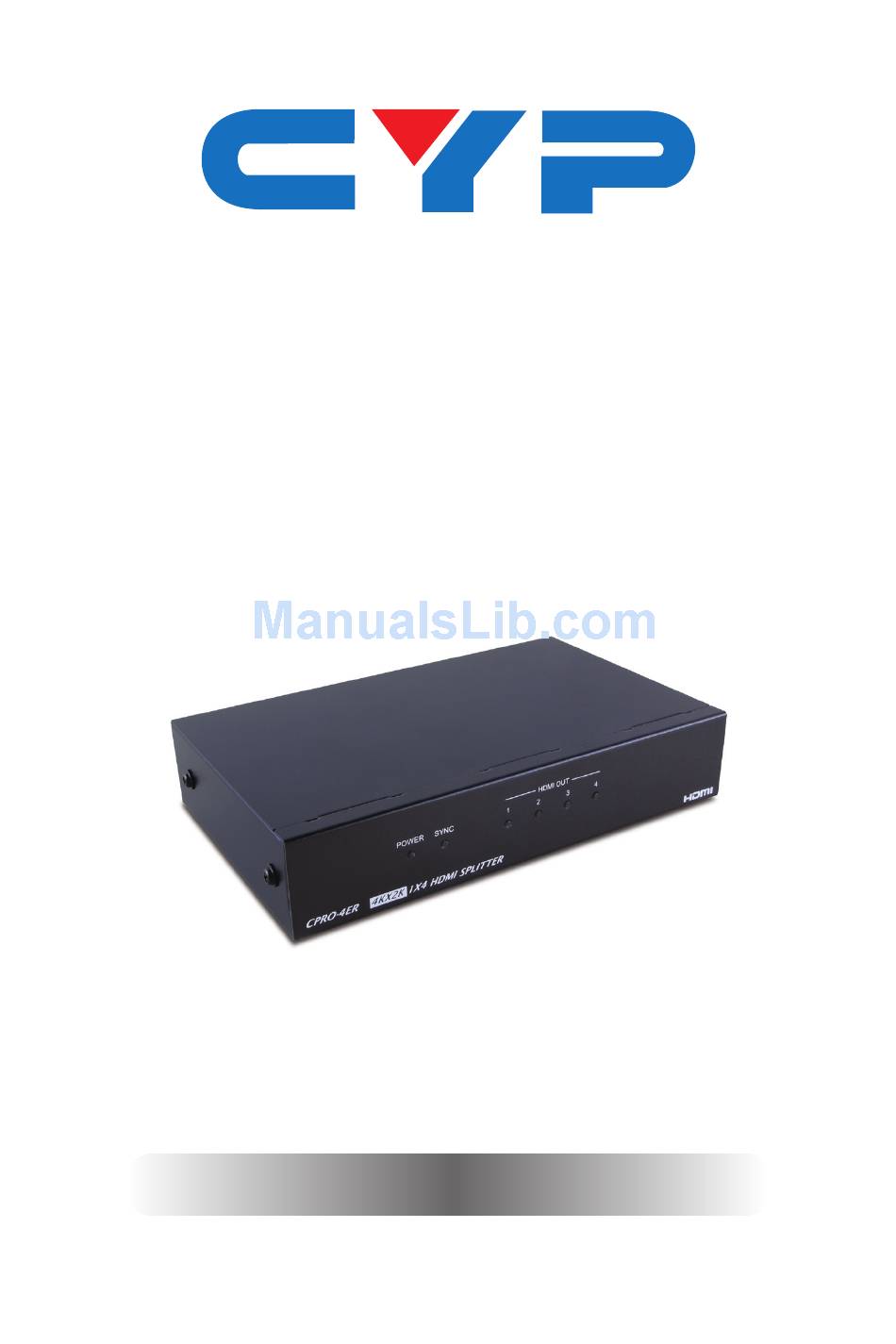

- Page 1 CPRO-4ER 1×4 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The 1 by 4 HDMI Splitter distributes a single HDMI input to four simultaneous HDMI outputs and supports 4K2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 9 Gbps bandwidth and the additional features of the latest in HDMI standards you can be sure of superior HDMI distribution. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI OUT POWER SYNC CPRO-4ER 4KX2K 1X4 HDMI SPLITTER POWER LED: The power LED will light up when the unit is connected to an active power supply. SYNC: This LED will light up when the HDMI input port is connected to an active source device. -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT DC 5V RESET EDID SERVICE 1 2 3 SYS RESET ON/OFF: When switched ON (default setting is off) the unit will, every 8~10 minutes, automatically switch all connected displays to their HDMI Input 1. Note: For this feature to function connected displays must support CEC commands. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player HDMI Input Power Supply HDMI IN HDMI OUT DC 5V RESET EDID SERVICE Simultaneous HDMI Outputs TV/Monitor TV/Monitor TV/Monitor TV/Monitor... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Input Ports 1×HDMI Type A (Female), 1×USB Mini-B (Service only) Output Ports 4×HDMI Type A (Female) HDMI Resolutions Up to 4K2K (3840×2160@24/25/30 Hz & 4096×2160@24 Hz) HDMI Input Cable 15 m@1080p/8-bit, 10 m@1080p/12-bit, Distance 5 m@4K2K HDMI Output Cable... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130611 MPM-CPRO4ER...
