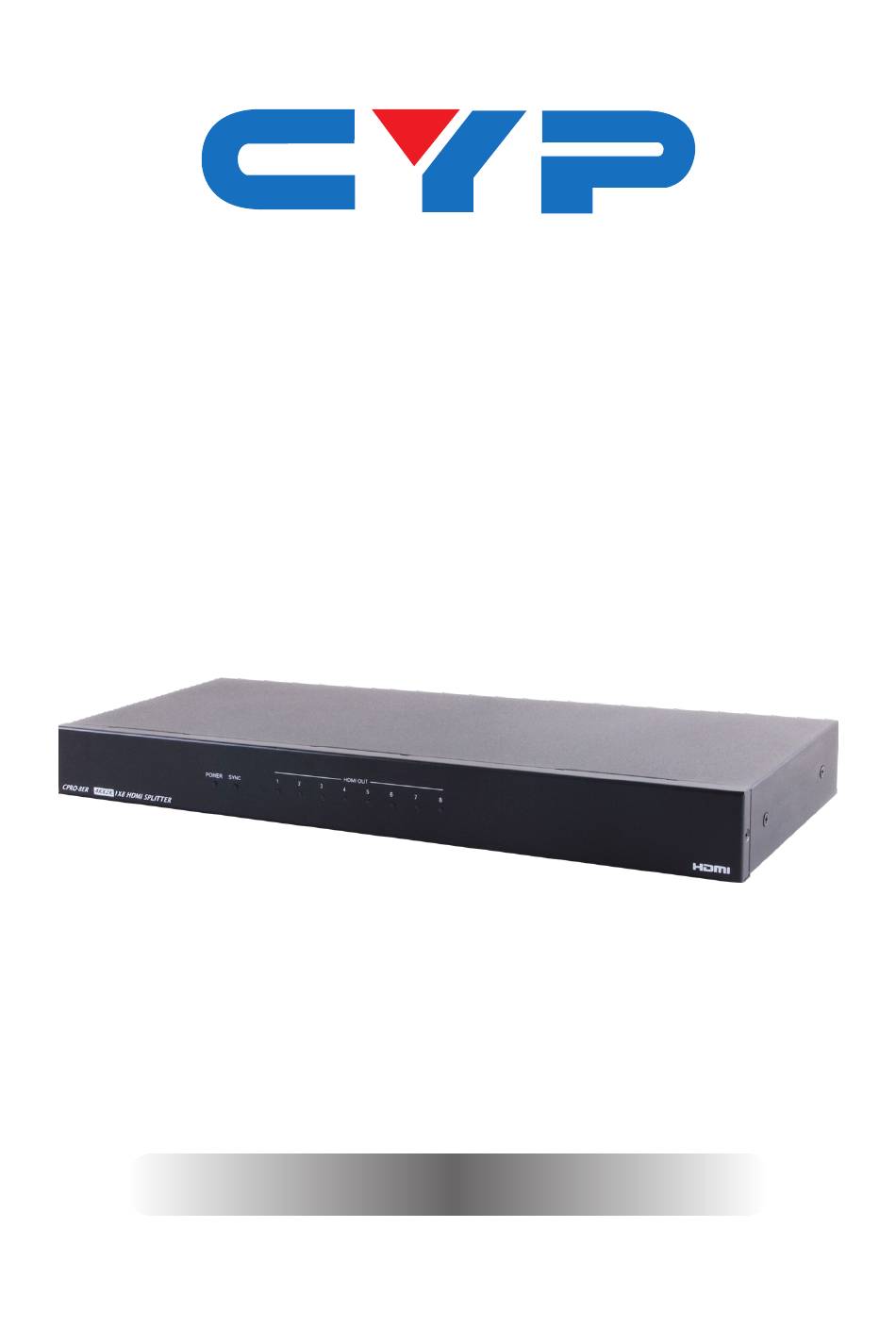

- Page 1 CPRO-8ER 4Kx2K 1 by 8 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION This range of high performance HDMI splitters provide one HDMI in to eight HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Coloer as well as High definition Lossless Audio. With its 9Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI OUT POWER SYNC CPRO-8ER 4KX2K 1X8 HDMI SPLITTER POWER LED: Once the power supply is connected the LED will illuminate SYNC: This LED will illuminate when the HDMI input port is connected to an active source. -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT DC 5V RESET EDID SERVICE SYS RESET ON/OFF: This switch allows the user to perform a system reset. The default setting is OFF, leave as it is when in normal use. By switching ON, the unit will perform a reset every 8~10 minutes, in order to perfrom this function the displays must have CEC supported. -
Page 9: Connection Diagram
DC 5V: Plug the 5V DC power supply into the unit and connected the adaptor to an AC outlet. 7. CONNECTION DIAGRAM Blu-ray Player HDMI Input Power Supply Example Shown: 1 by 8 HDMI HDMI IN HDMI OUT DC 5V RESET EDID SERVICE... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/9Gbps Input ports 1 x Female HDMI type A, 1 x USB (Service only) Output ports 8 x HDMI, Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096 x2160@24Hz) Power Supply 5V / 3A DC (US/EU standards, CE/FCC/UL certified) Dimensions 436 mm(W) x 166 mm(D) x 49 mm(H) Weight Chassis Material... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPRO8ER...
